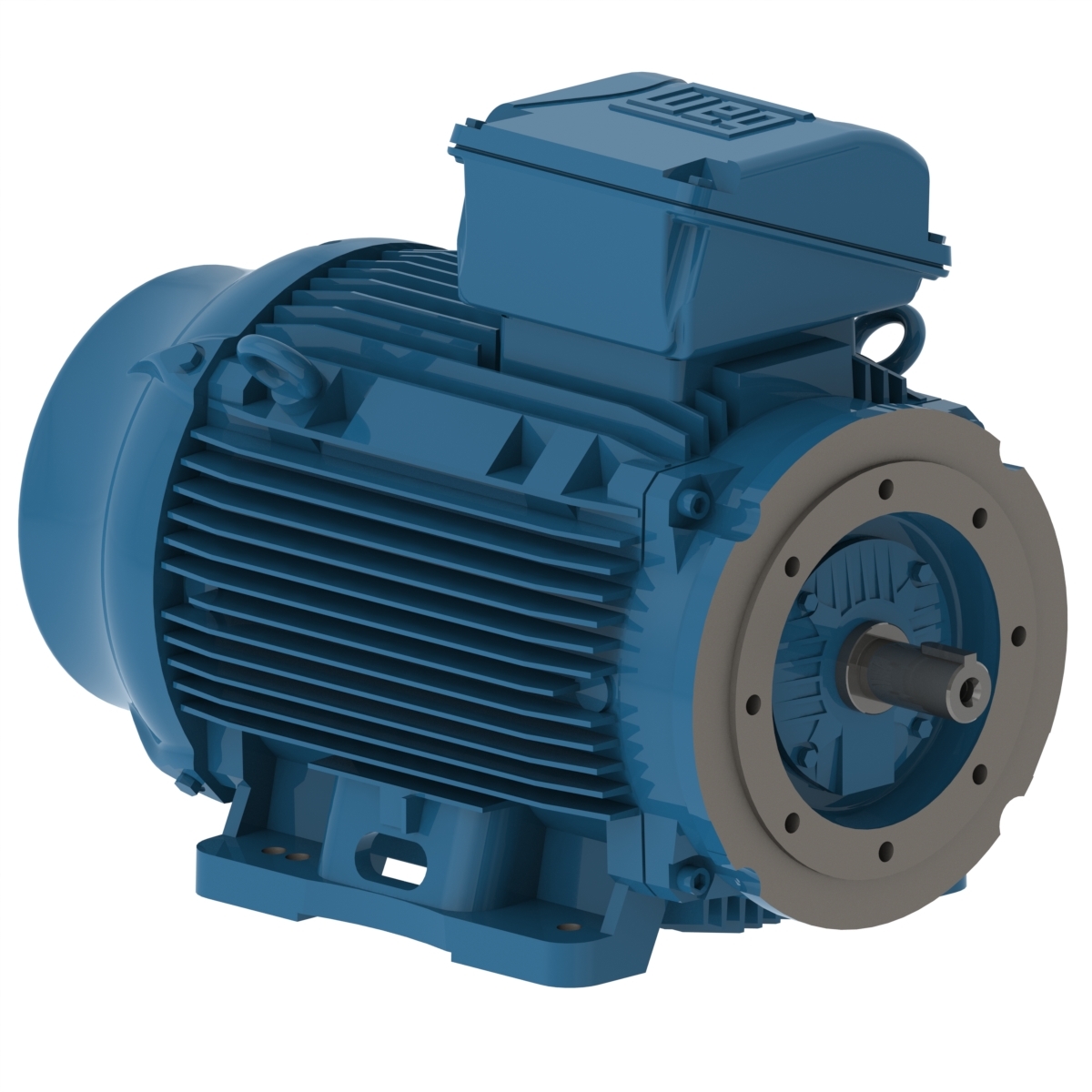

Z07518ET3X122220 WEG AC Motor
Z07518ET3X122220 – WEG AC Motor
W22 NEMA Premium Efficiency 75 HP 6P 404/5T 3Ph 230/460//380 V 60//50 Hz IC411 – TEFC – Foot-mounted
Downloads: Z07518ET3X122220
Additional information
| Weight | 960 lbs |
|---|---|
| Manufacturer | WEG |
| Application | General Purpose |
| Frame Material | Cast Iron |
| Frame | 364/5TSC |
| Degree of Protection | IP55 |
| Horsepower | 75 HP |
| Kilowatts | 55 kW |
| Phase | 3 Ph |
| Rated Voltage | 230/460//380 V |
| Rated Frequency | 60//50 Hz |
| Rated Current | 174/87.2 A |
| Rated Speed | 1780 RPM |
| Synchronous speed | 1800 RPM |
| Pole | 4:00 PM |
| Service Factor | 1.25 SF |
| Enclosure | IC411 – TEFC |
| Mounting | Foot-mounted |
| Flange | C |
| Rated Torque | 221 ft.lb |
| Terminal Box | Top |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Noise level | 67.0 dB(A) |
| Misc |
