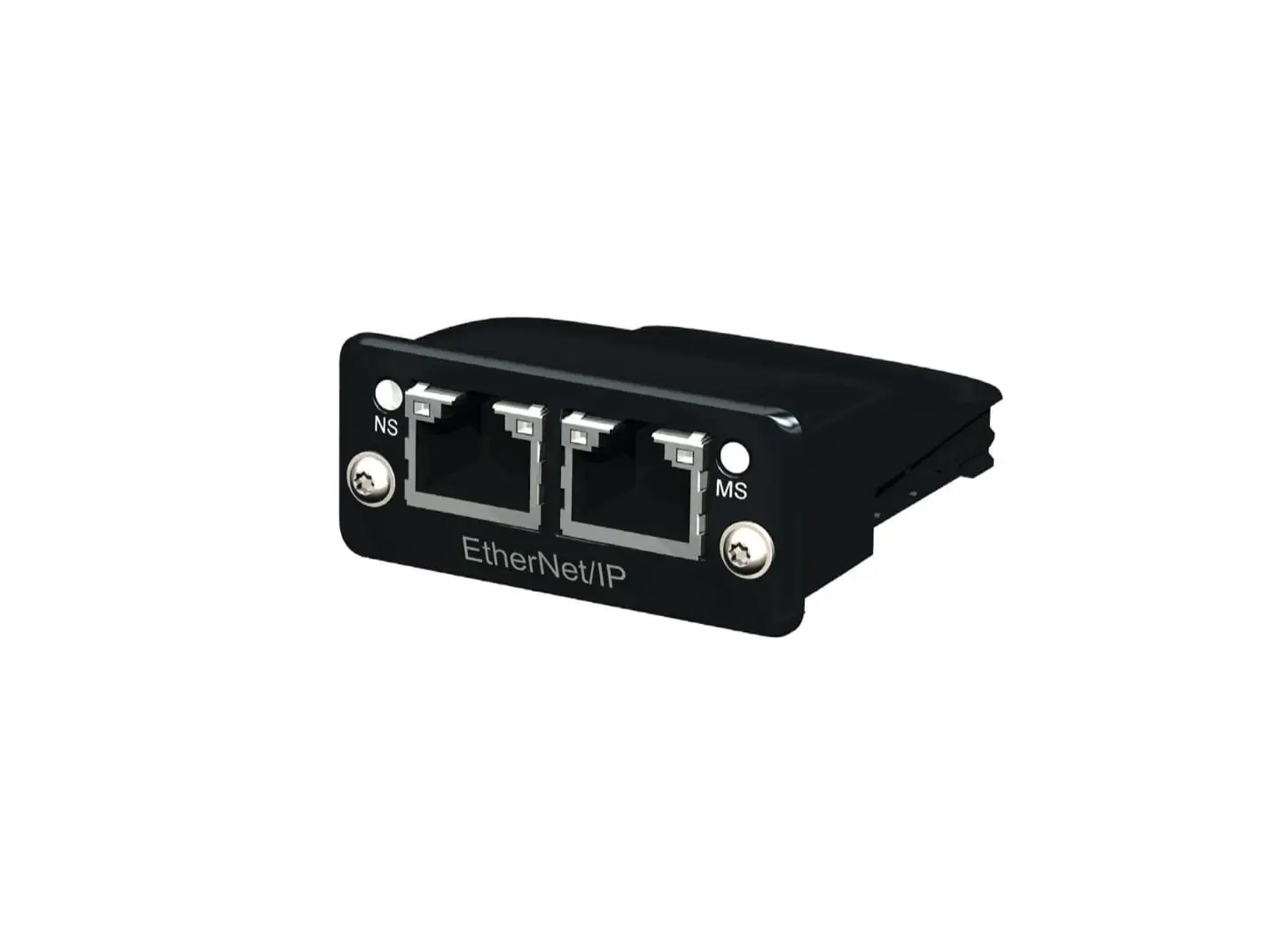

OPT-2-ETHNT-IN – EtherNet/IP Plug In Interface Module

$ 202.50

Model ID: OPT-2-ETHNT-IN

Allows the Optidrive to be connected to an EtherNet/IP communication protocol. This option module is specifically designed to be used with the Optidrive P2 and Optidrive ECO.

SKU: OPT-2-ETHNT-IN Category: Tag:

Description

EtherNet/IP Plug In Interface Module
The EtherNet/IP Plug in Interface Module is intended to be installed in the Optidrive option slot, and allows the Optidrive to be connected to an EtherNet/IP communication protocol. The interface offers the following functionality:
CIP Parameter Object Support
4 Input Words from the network master to the Optidrive
4 Output Words from the Optidrive to the network master

Communication Interfaces
Allow connection to a wide range of industrial network standards
Simple control of the Optidrive from a PLC or control system

Multiple communication interfaces are available for our VFDs. These include stand-alone gateways and plug in modules. Four drives (eight for PROFIBUS) can be connected to a single gateway and controlled. Plug in modules allow each VFD to be directly connected to the network, providing enhanced functionality.

Additional information

Weight 2 lbs

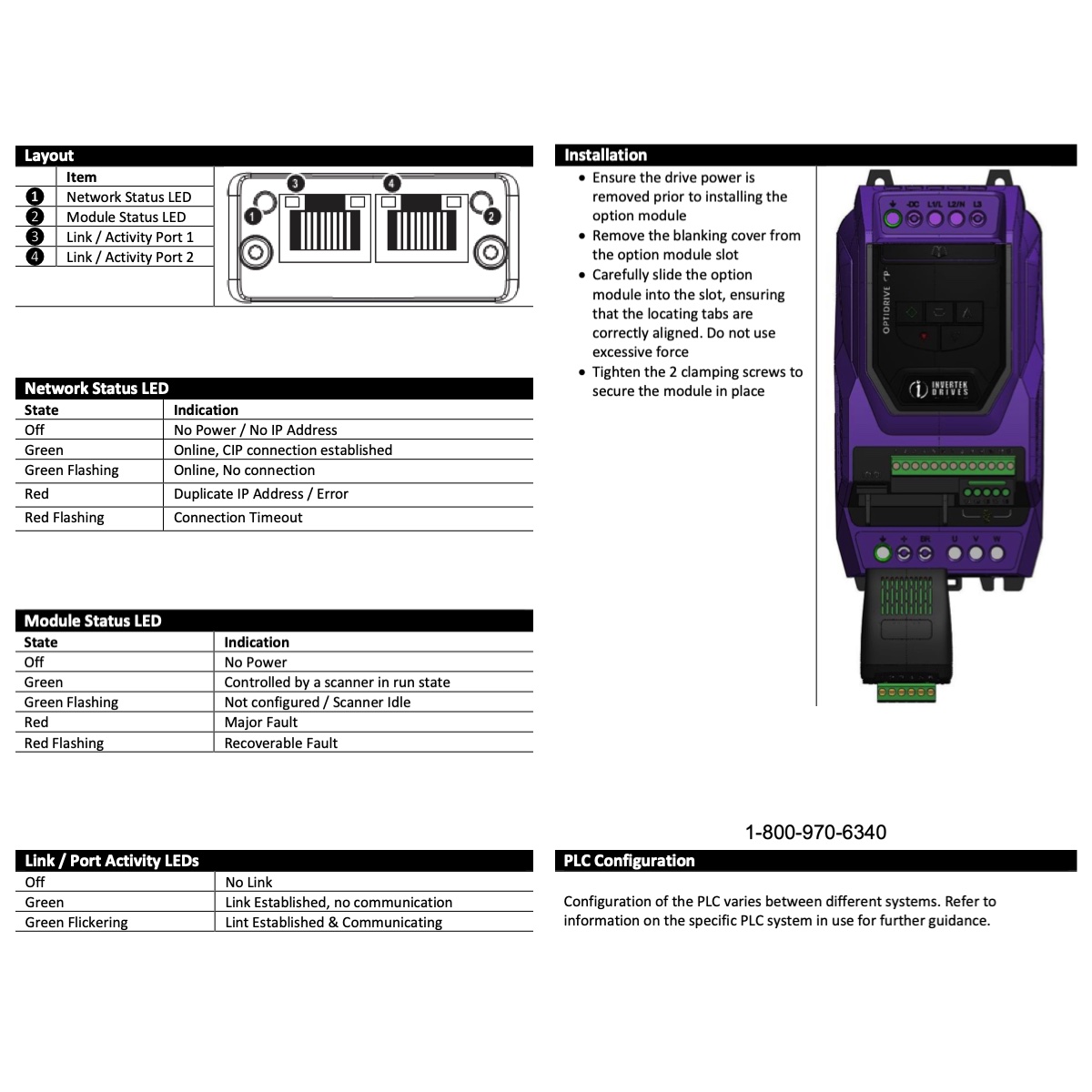

Datasheet

OPT-2-ETHNT-IN

Compatibility

Optidrive P2, Optidrive ECO
