OPT-2-ETHEG-IN – EtherNet/IP Interface

$ 140.63

Model ID: OPT-2-ETHEG-IN

Allows the Optidrive to be connected to an EtherNet/IP communication protocol. This option module is specifically designed to be used with the Optidrive E3, Optidrive P2 and Optidrive ECO.

SKU: OPT-2-ETHEG-IN Category: Tag:

Description

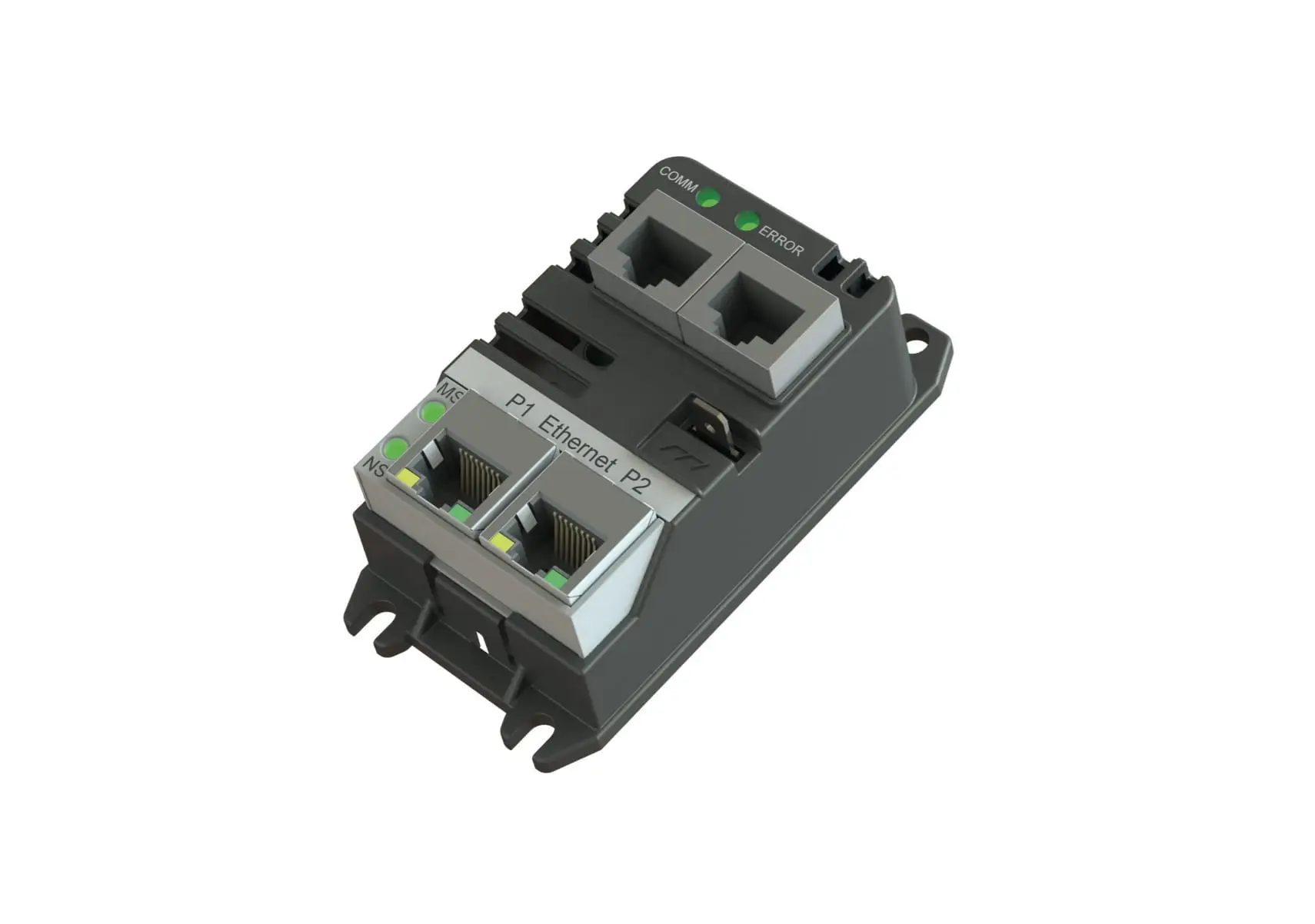

EtherNet/IP Interface

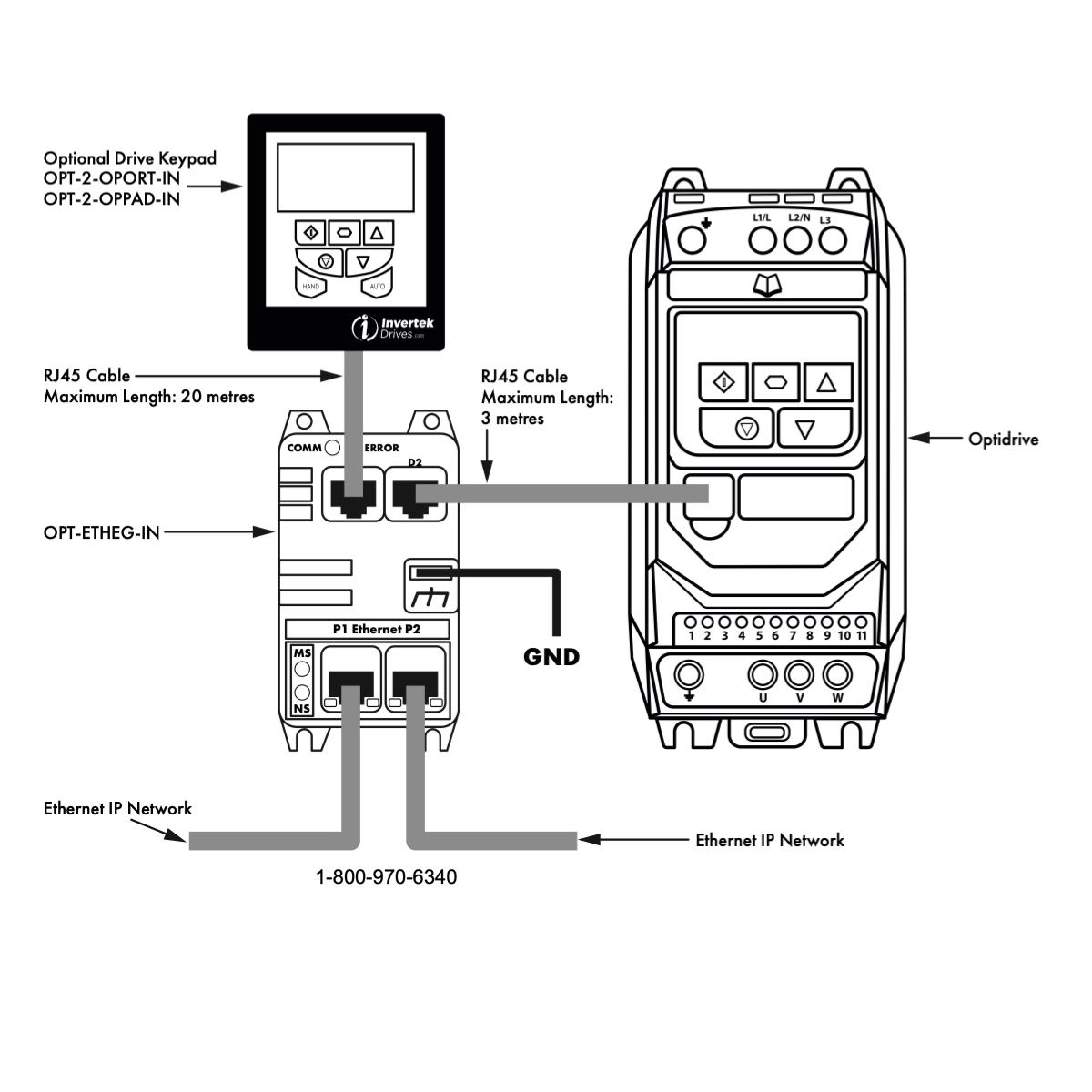

The EtherNet/IP gateway module is an EtherNet/IP to Modbus RTU gateway module for use with Optidrive E3. It can also be used with Optidrive P2 & Optidrive ECO, however, these units have their own plug-in EtherNet/IP module (OPT-2-ETHNT-IN). The OPT-2-ETHEG-IN interface offers the following functionality:
4 Input Words from the network master to the Optidrive E3
4 Output Words from the Optidrive E3 to the network master

Communication Interfaces
Allow connection to a wide range of industrial network standards
Simple control of the Optidrive from a PLC or control system

Multiple communication interfaces are available for our VFDs. These include stand-alone gateways and plug in modules. Four drives (eight for PROFIBUS) can be connected to a single gateway and controlled. Plug in modules allow each VFD to be directly connected to the network, providing enhanced functionality.

Additional information

Weight 2 lbs
Datasheet

OPT-2-ETHEG-IN

Compatibility

Optidrive E3, Optidrive P2, Optidrive ECO
