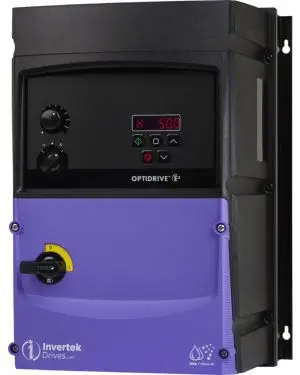

ODE-3-420460-3F4A – 15HP, 46A, 200V-240V, 3 Phase

$ 1,384.50

Model ID: ODE-3-420460-3F4A
Series: Optidrive E3

Horsepower: 15 HP

Input Voltage: 200V – 240V
Output Voltage: 200V – 240V
Phase: I: 3Ø / O: 3Ø
Output Current: 46A
Frame: Size 4
Enclosure Rating: NEMA 4X / IP66

Description

VFD 15HP

Model ID: ODE-3-420460-3F4A
Series: Optidrive E3

Horsepower: 15 HP

Input Voltage: 200V – 240V
Output Voltage: 200V – 240V
Phase: 3-Phase In / 3-Phase Out
Output Current: 46A
Frame: Size 4
Enclosure Rating: NEMA 4X / IP66



Performance:
Sensorless Vector Speed Control
Power Supply: 24 Volt DC, 100mA, Short Circuit Protected, 10 Volt DC, 10mA for Potentiometer
Digital Inputs:8 – 30 Volt DC, internal or external supply, Response time less than 4ms
Output Frequency: 0 – 500Hz, 0.1Hz resolution
Acceleration Ramp Time: 0.01 – 600 seconds
Deceleration Ramp Time: 0.01 – 600 seconds
Energy Optimizer
Low Frequency Torque Boost
Fire Mode: VFD ignores signals and alarms
Constant Toque Mode
Variable Torque Mode
Skip Frequency function
Spin Start
V/F Characteristic Adjustment Voltage

Features:
Keypad: Built-in keypad as standard, optional remote mountable keypad
Display: 7 Segment LED
Lockable parameters: Avoid changes to VFD
PC: OptiTools Studio
Smartphone: OptiTools Studio
Bluetooth: OptiStick Smart (accessory sold separately)

Primary Command Source:
Terminal Control
Uni-directional Keypad Control
Bi-directional Keypad Control
Modbus Network Control
PI Control
PI Analog Summation Control
CAN Control
Slave Mode

Compatible motors:
Induction Motors (IM)
Permanent Magnet Motors (PM)
Brushless DC Motors (BLDC)
Synchronous Reluctance Motors (SynRM)

Additional information

Weight 28 lbs
Datasheet

ODE-3-420460-3F4A

User Guide

Optidrive E3
