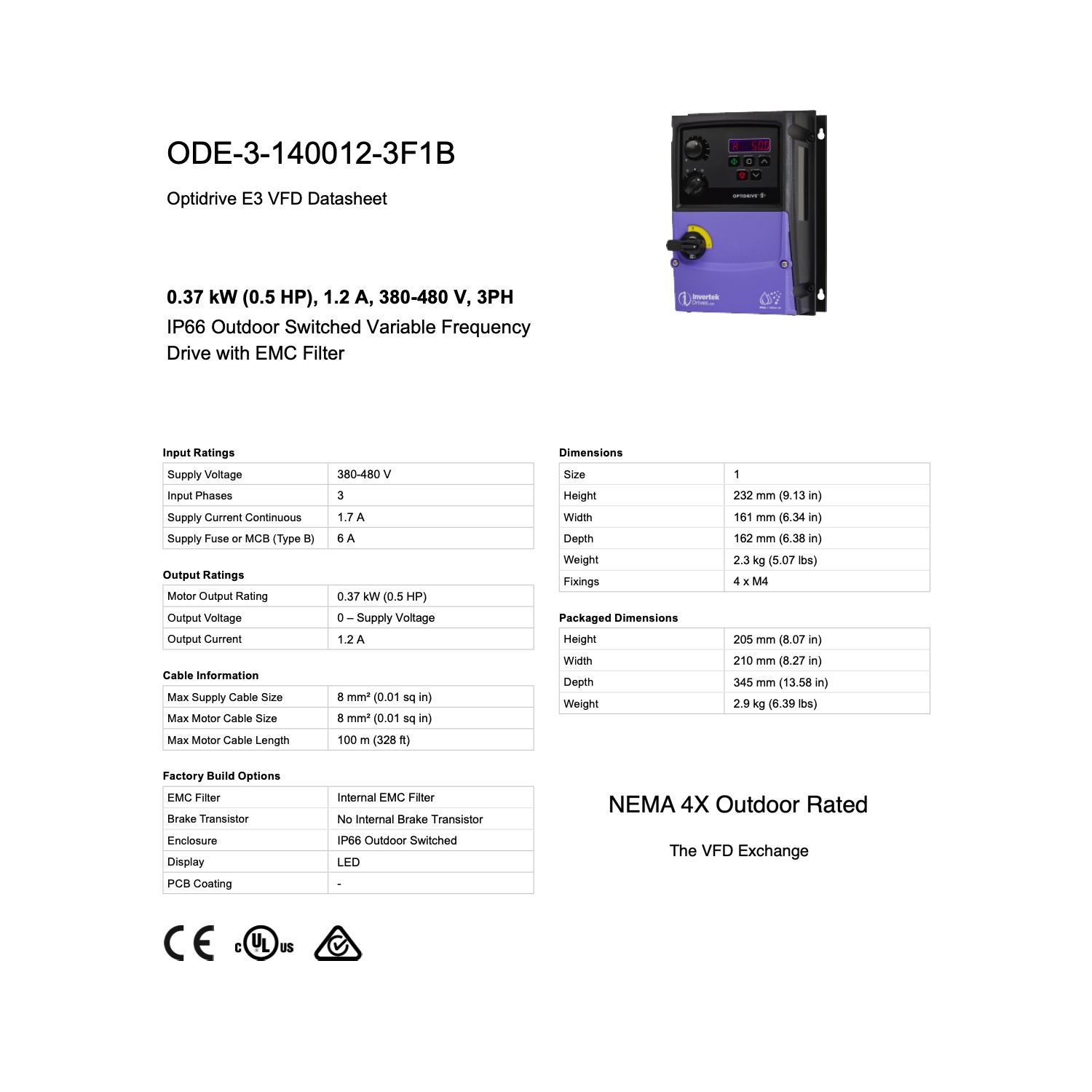

ODE-3-140012-3F1B – 0.5HP, 1.2A, 380V-480V, Three Phase

Original price was: $ 705.00.Current price is: $ 547.20.

User Manual

Model ID: ODE-3-140012-3F1B
Series: Optidrive E3

Horsepower: 0.5 HP

Input Voltage: 380V – 480V
Output Voltage: 380V – 480V
Phase: I: 3Ø / O: 3Ø
Output Current: 1.2A
Frame: Size 1
Enclosure Rating: NEMA 4X / IP66



Model ID: ODE-3-140012-3F1B
Series: Optidrive E3

Sensorless Vector Speed Control
Power Supply: 24 Volt DC, 100mA, Short Circuit Protected, 10 Volt DC, 10mA for Potentiometer
Digital Inputs:8 – 30 Volt DC, internal or external supply, Response time less than 4ms
Output Frequency: 0 – 500Hz, 0.1Hz resolution
Acceleration Ramp Time: 0.01 – 600 seconds
Deceleration Ramp Time: 0.01 – 600 seconds
Energy Optimizer
Low Frequency Torque Boost
Fire Mode: VFD ignores signals and alarms
Constant Toque Mode
Variable Torque Mode
Skip Frequency function
Spin Start
V/F Characteristic Adjustment Voltage

Keypad: Built-in keypad as standard, optional remote mountable keypad
Display: 7 Segment LED
Lockable parameters: Avoid changes to VFD
PC: OptiTools Studio
Smartphone: OptiTools Studio
Bluetooth: OptiStick Smart (accessory sold separately)

Primary Command Source:
Terminal Control
Uni-directional Keypad Control
Bi-directional Keypad Control
Modbus Network Control
PI Control
PI Analog Summation Control
CAN Control
Slave Mode

Compatible motors:
Induction Motors (IM)
Permanent Magnet Motors (PM)
Brushless DC Motors (BLDC)
Synchronous Reluctance Motors (SynRM)

Additional information

Weight 8 lbs


User Guide

Optidrive E3
