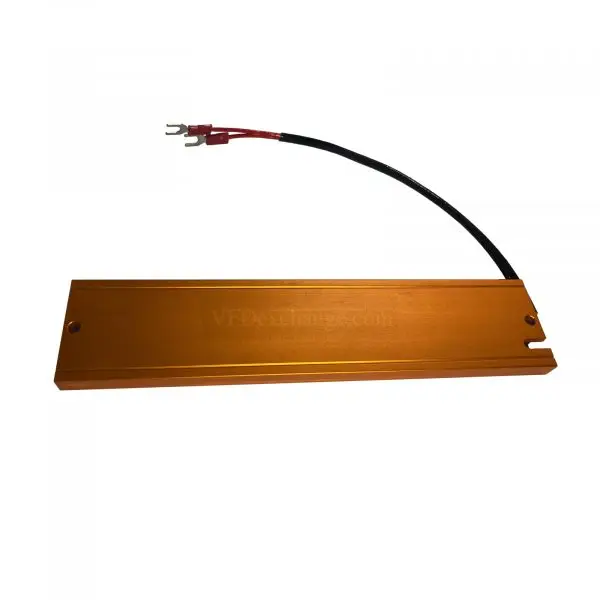

OD-BR100-IN – Invertek Brake Resistor, Size 2, 100R, 200W

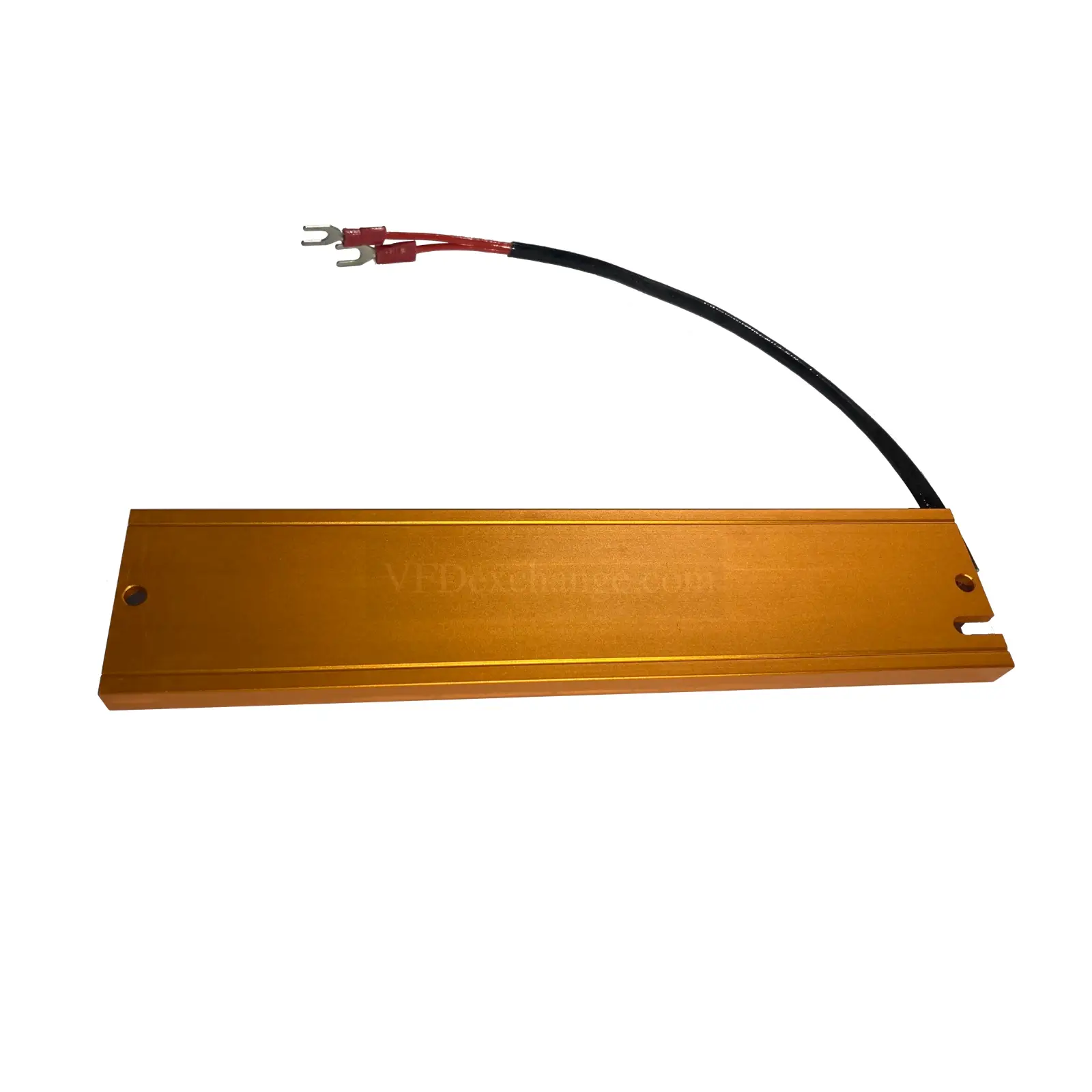

OD-BR100-IN – Invertek Brake Resistor, Size 2, 100R, 200W - Image 2

OD-BR100-IN – Invertek Brake Resistor, Size 2, 100R, 200W

Original price was: $ 216.81.Current price is: $ 168.96.

Model ID: OD-BR100-IN
Series: Braking Resistor
Manufacturer: Invertek Drives

Resistance: 100 ohm
Continuous Power: 200W
Peak Power: 12000W
Max Rated Voltage: 900VDC

*OD-BR100-IN is designed for use with the Optidrive E3 and Optidrive P2 frame size 2 and frame size 3.

Call Today: 1-800-970-6340

Request a Quote

SKU: OD-BR100-IN Category:

Description

Model ID: OD-BR100-IN
Series: Braking Resistor
Manufacturer: Invertek Drives

OD-BR100-IN – Brake Resistor, Size 2, 100R, 200W

Brake resistors are used to dissipate energy that is transferred back from the motor during the drive during regeneration – for example when stopping or slowing down high inertia loads. Invertek drives range of brake resistors are suitable for light duty braking (5%), without high repeat cycle times. For applications which require high braking power or frequent usage, alternative resistors should be used.

Additional information

Weight 2 lbs
Datasheet

OD-BR100-IN
Compatibility

Optidrive E3, Optidrive P2
