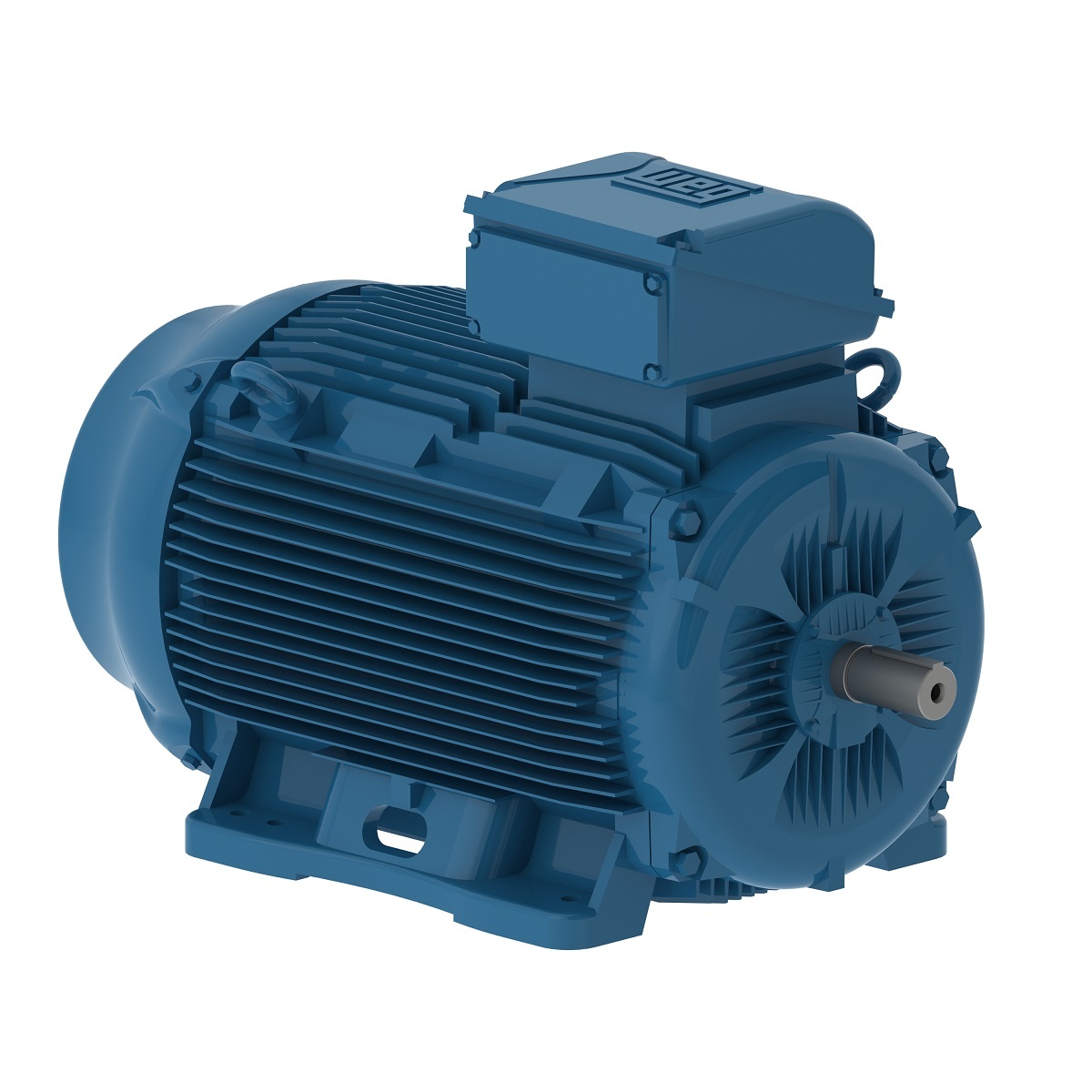

E09012ET3YAX315SMF3W WEG AC Motor
E09012ET3YAX315SMF3W – WEG AC Motor
W22Xec IE3 90 kW 6P 315S/M 3Ph 380-400-415/660-690//460 V 50 Hz IC411 – TEFC – B3T
Downloads: E09012ET3YAX315SMF3W
Additional information
| Weight | 2626 lbs |
|---|---|
| Manufacturer | WEG |
| Application | Hazardous Area IEC |
| Frame Material | Cast Iron |
| Frame | 315S/M |
| Degree of Protection | IP55 |
| Horsepower | 125 HP |
| Kilowatts | |
| Phase | 3 Ph |
| Rated Voltage | 380-400-415/660-690//460 V |
| Rated Frequency | 50 Hz |
| Rated Current | 171/99.1 A |
| Rated Speed | 991 RPM |
| Synchronous speed | 1000 RPM |
| Pole | 6:00 PM |
| Service Factor | 1.00 SF |
| Enclosure | IC411 – TEFC |
| Mounting | Foot-mounted |
| Flange | Without |
| Rated Torque | 640 ft.lb |
| Terminal Box | Top |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Noise level | 67.0 dB(A) |
