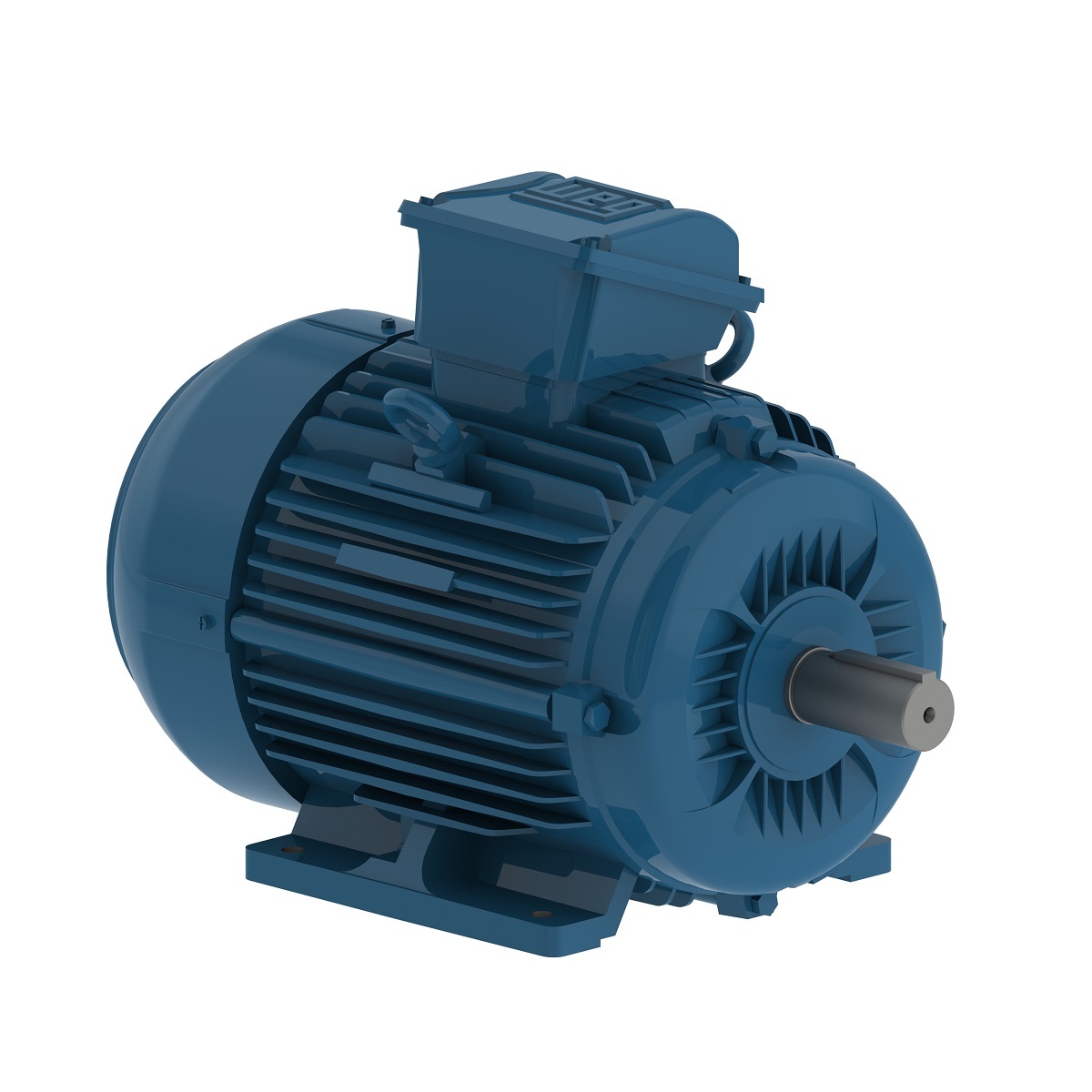

E00736ET3YAX132SF3-W WEG AC Motor
E00736ET3YAX132SF3-W – WEG AC Motor
W22Xec IE3 7.5 kW 2P 132S 3Ph 380-400-415/660-690//460 V 50 Hz IC411 – TEFC – B3T
Downloads: E00736ET3YAX132SF3-W
Additional information
| Weight | 153 lbs |
|---|---|
| Manufacturer | WEG |
| Application | Hazardous Area IEC |
| Frame Material | Cast Iron |
| Frame | 132S |
| Degree of Protection | IP55 |
| Horsepower | 10 HP |
| Kilowatts | |
| Phase | 3 Ph |
| Rated Voltage | 380-400-415/660-690//460 V |
| Rated Frequency | 50 Hz |
| Rated Current | 14.1/8.17 A |
| Rated Speed | 2935 RPM |
| Synchronous speed | 3000 RPM |
| Pole | 2:00 PM |
| Service Factor | 1.00 SF |
| Enclosure | IC411 – TEFC |
| Mounting | Foot-mounted |
| Flange | Without |
| Rated Torque | 18.0 ft.lb |
| Terminal Box | Top |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Noise level | 63.0 dB(A) |
| Misc |
