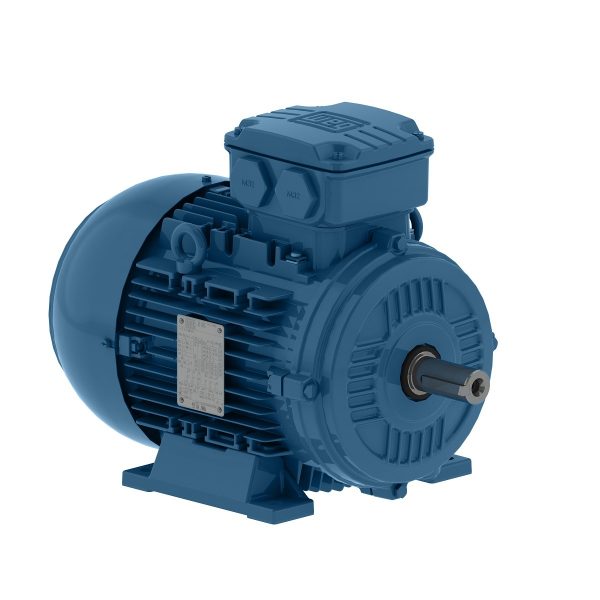

E00212EP3YAL112MF3 WEG AC Motor

E00212EP3YAL112MF3 WEG AC Motor - Image 2

E00212EP3YAL112MF3 WEG AC Motor

E00212EP3YAL112MF3 – WEG AC Motor

Multimounting IE2 2.2 kW 6P 112M 3Ph 380-415/660//460 V 50 Hz IC411 – TEFC – B3T
Downloads: E00212EP3YAL112MF3

SKU: E00212EP3YAL112MF3 Category: WEG Electric Corp - AC Motors - 1 Phase & 3 Phase

Description
Additional information

Description

E00212EP3YAL112MF3 – WEG AC Motor. With aluminum frame and removable feet, this motor is able to provide great flexibility and facilitate the change of configuration without requiring additional machining or modifications. Its terminal box can rotate every 90 degrees, allowing the connection of the motor cables on any side. Furthermore, the W21 Multimounting is totally interchangeable with the cast iron motors.

Downloads: E00212EP3YAL112MF3

Additional information

Weight	84.8 lbs
Manufacturer	WEG
Application	General Purpose Multimounting
Frame Material	Aluminum
Frame	112M
Degree of Protection	IP55
Horsepower	3 HP
Kilowatts
Phase	3 Ph
Rated Voltage	380-415/660//460 V
Rated Frequency	50 Hz
Rated Current	5.46/3.14 A
Rated Speed	945 RPM
Synchronous speed	1000 RPM
Pole	6:00 PM
Service Factor
Enclosure	IC411 – TEFC
Mounting	Foot-mounted
Flange	Without
Rated Torque	16.4 ft.lb
Terminal Box	Top
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Noise level	49.0 dB(A)
