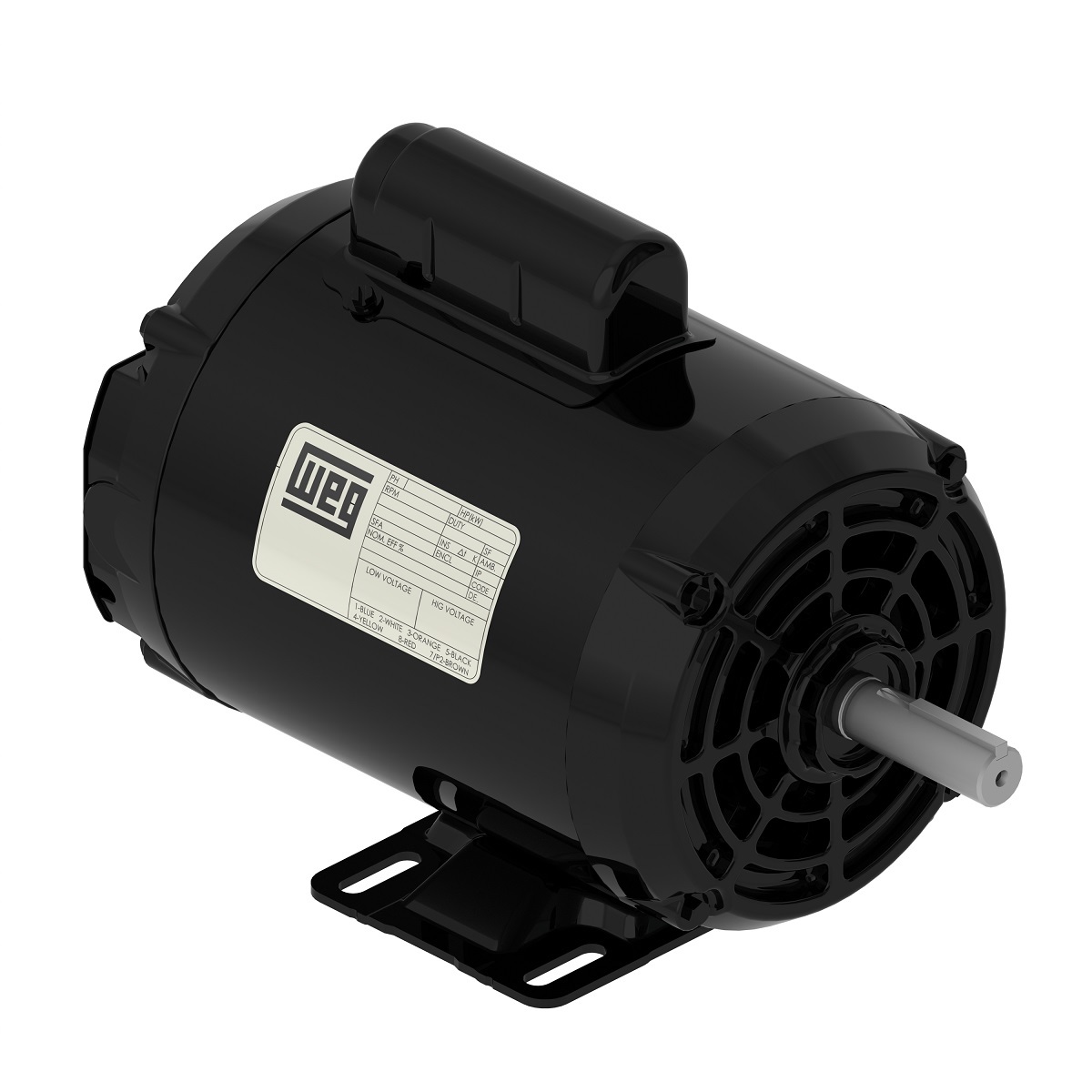

CDS022OM001 WEG AC Motor
CDS022OM001 – WEG AC Motor
Compressor Duty 1.75 HP 2P D56 1Ph 115/230 V 60 Hz IC01 – ODP – Foot-mounted
Downloads: CDS022OM001
Additional information
| Weight | 37.5 lbs |
|---|---|
| Manufacturer | WEG |
| Application | Definite Purpose |
| Frame Material | Rolled Steel |
| Frame | D56 |
| Degree of Protection | IP21 |
| Horsepower | 1.75 HP |
| Kilowatts | 1.3 kW |
| Phase | 1 Ph |
| Rated Voltage | 115/230 V |
| Rated Frequency | 60 Hz |
| Rated Current | 14.6/7.30 A |
| Rated Speed | 3490 RPM |
| Synchronous speed | 3600 RPM |
| Pole | 2:00 PM |
| Service Factor | 1.00 SF |
| Enclosure | IC01 – ODP |
| Mounting | Foot-mounted |
| Flange | Without |
| Rated Torque | 2.63 ft.lb |
| Terminal Box | Without Terminal Box |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Noise level | |
| Misc |
