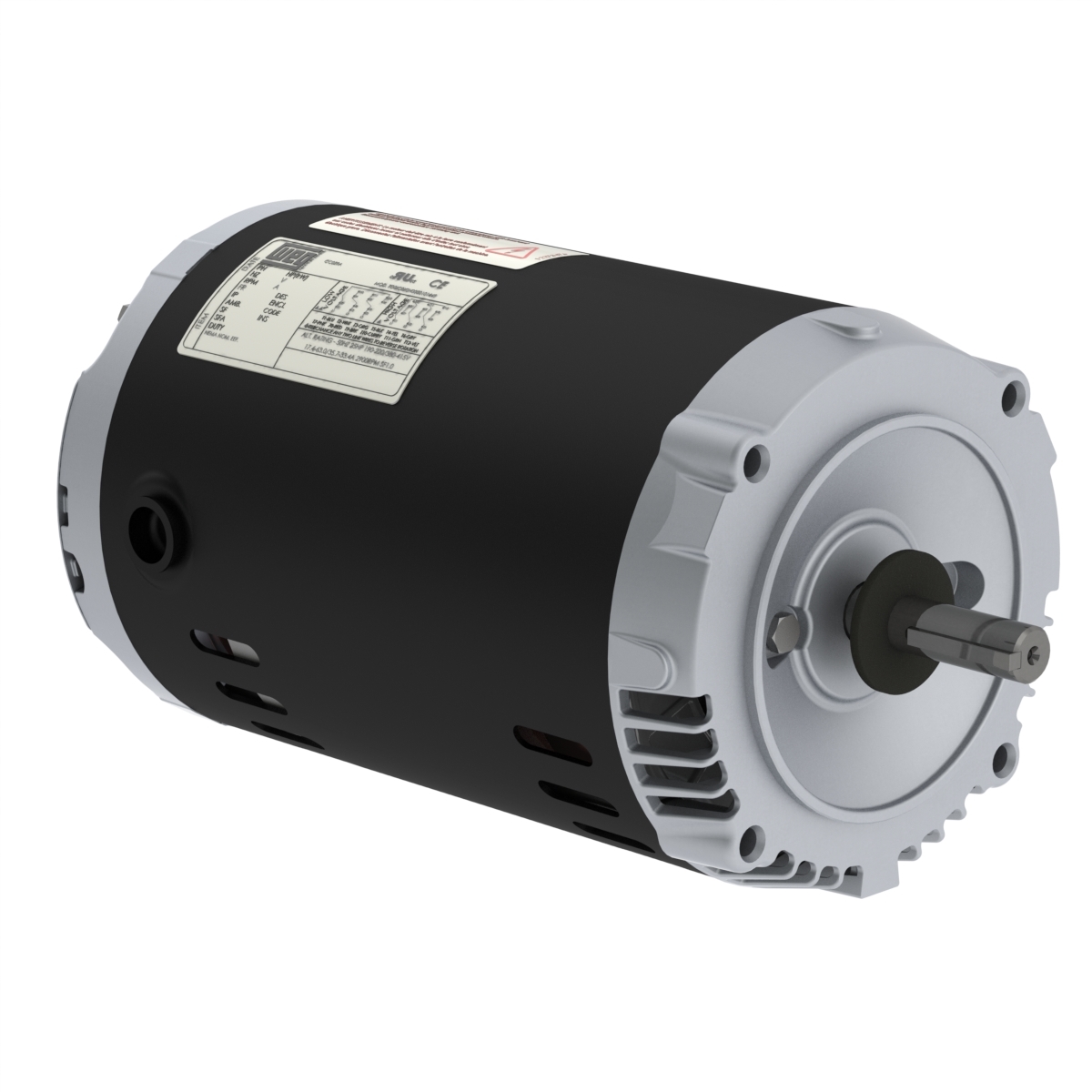

.7536OT3E56CFL-S WEG AC Motor
.7536OT3E56CFL-S – WEG AC Motor
Rolled Steel Premium Efficiency 0.75 HP 4P 56 3Ph 380/660 V 60 Hz IC411 – TEFC – Foot-mounted
Downloads: .7536OT3E56CFL-S
Additional information
| Weight | 18.7 lbs |
|---|---|
| Manufacturer | WEG |
| Application | General Purpose |
| Frame Material | Rolled Steel |
| Frame | 56C |
| Degree of Protection | |
| Horsepower | 0.75 HP |
| Kilowatts | 0.55 kW |
| Phase | 3 Ph |
| Rated Voltage | 208-230/460//190-220/380-415 V |
| Rated Frequency | 60//50 Hz |
| Rated Current | 2.52-2.28/1.14 A |
| Rated Speed | 3485 RPM |
| Synchronous speed | 3600 RPM |
| Pole | 2:00 PM |
| Service Factor | 1.25 (1.00 @ 208V) SF |
| Enclosure | IC01 – ODP |
| Mounting | Footless |
| Flange | C |
| Rated Torque | 1.13 ft.lb |
| Terminal Box | Without Terminal Box |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Noise level | |
| Misc |
