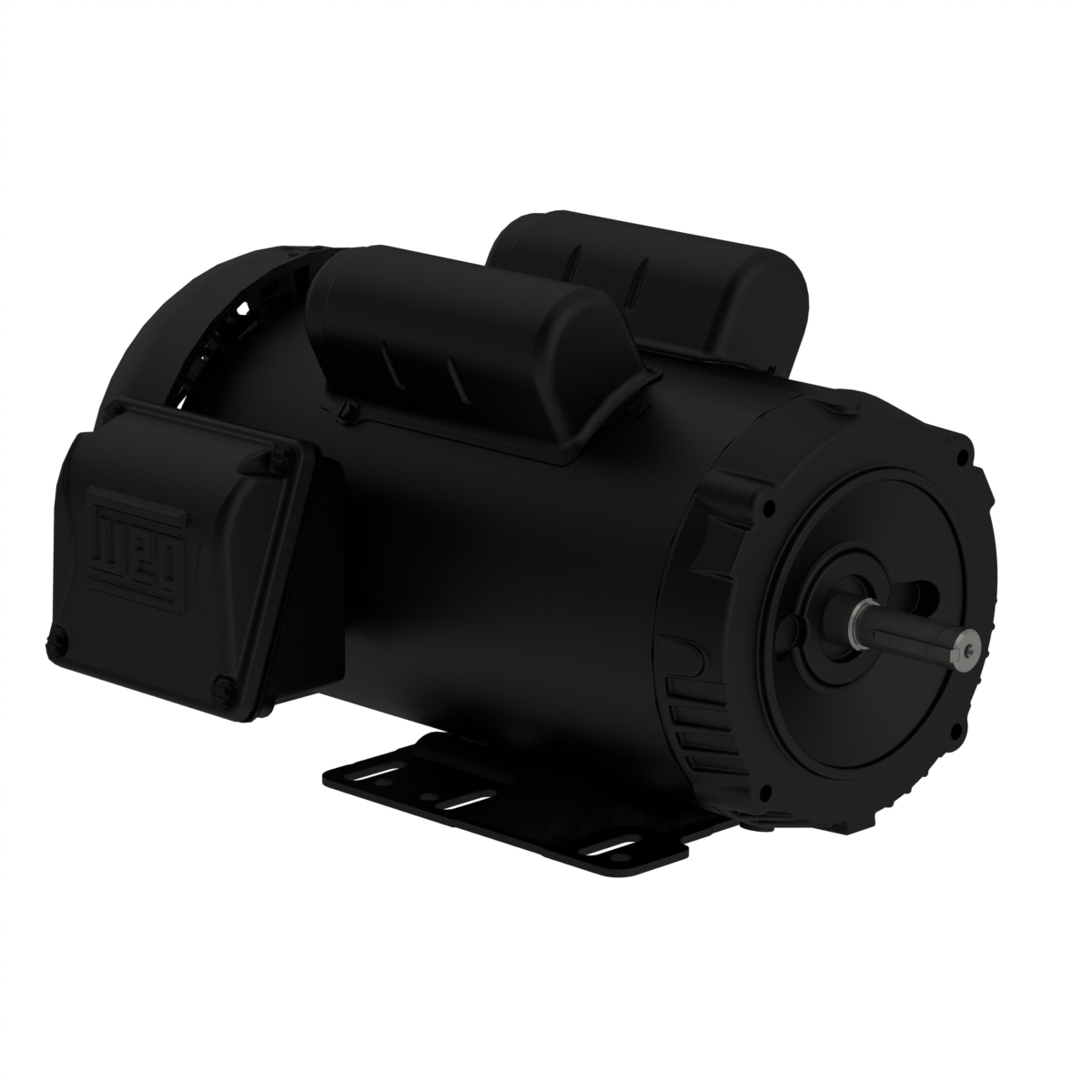

.7512ES1B56C-S – WEG AC Motor

Rolled Steel 1 HP 2P 56 1Ph 115/208-230 V 60 Hz IC411 – TEFC – Foot-mounted
Downloads: .7512ES1B56C-S

SKU: .7512ES1B56C-S Category: WEG Electric Corp - AC Motors - Single Phase & 3 Phase

Description
Additional information

Description

.7512ES1B56C-S – WEG AC Motor. The W01 motor is the perfect option for applications that require robustness, low weight and high performance in a single product. The W01 Rolled Steel Single Phase motor has good thermal performance and easy installation and maintenance. Because of their high starting torque, they are particularly well-suited for heavy starting loads.

Downloads: .7512ES1B56C-S

Additional information

Weight	39.9 lbs
Manufacturer	WEG
Application	General Purpose
Frame Material	Rolled Steel
Frame	56HC
Degree of Protection	IP55
Horsepower	0.75 HP
Kilowatts	0.55 kW
Phase	1 Ph
Rated Voltage	115/208-230 V
Rated Frequency	60 Hz
Rated Current	9.40/5.20-4.70 A
Rated Speed	1170 RPM
Synchronous speed	1200 RPM
Pole	6:00 PM
Service Factor	1.15 (1.00 @ 208V) SF
Enclosure	IC411 – TEFC
Mounting	Foot-mounted
Flange	C
Rated Torque	3.37 ft.lb
Terminal Box	Left position
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Noise level	54.0 dB(A)
