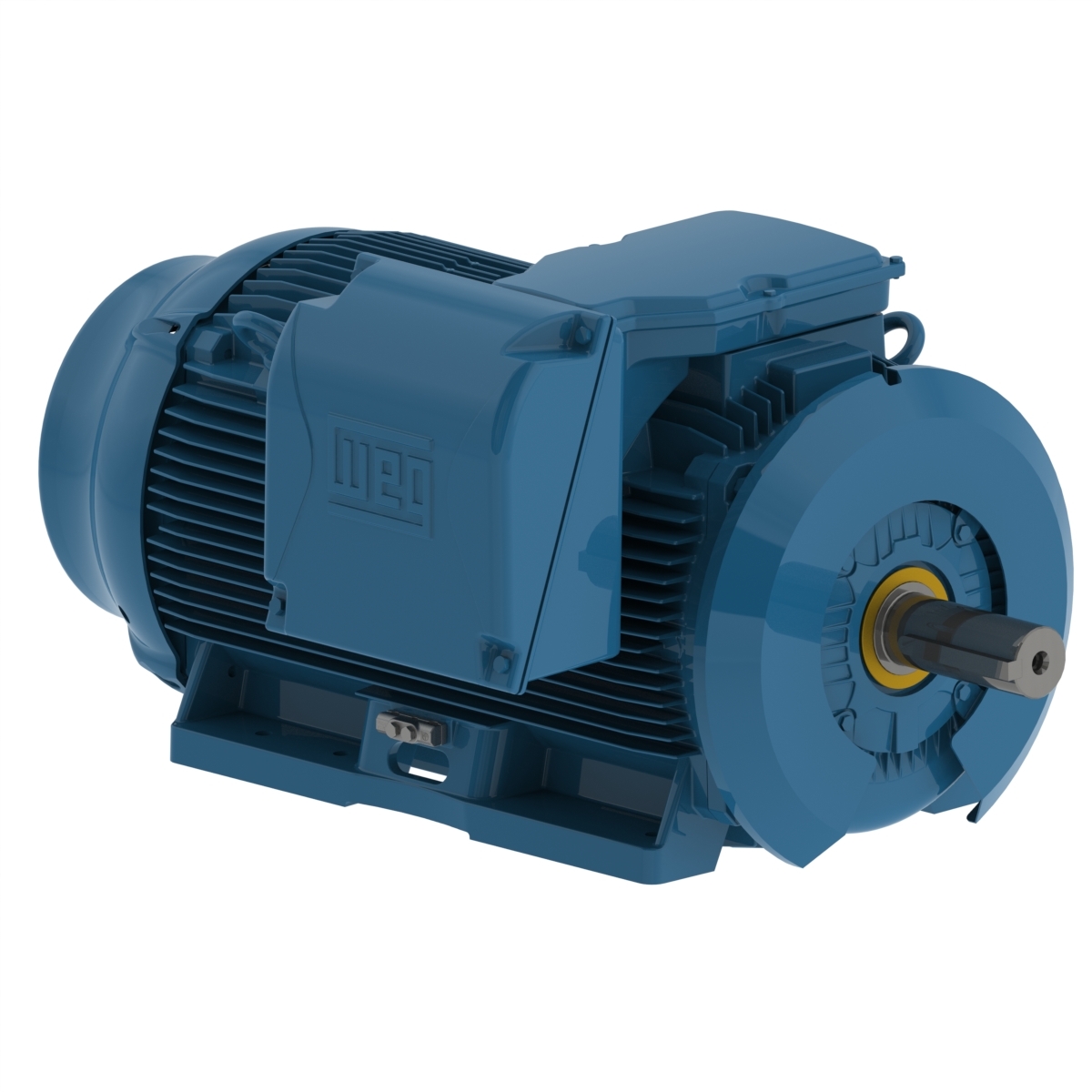

30018ST3QIERB449T-W2 WEG AC Motor
30018ST3QIERB449T-W2 – WEG AC Motor
W22 IEEE 841 NEMA Premium Efficiency 300 HP 4P 447/9T 3Ph 460 V 60 Hz IC411 – TEFC – Foot-mounted
Downloads: 30018ST3QIERB449T-W2
Additional information
| Weight | 2984 lbs |
|---|---|
| Manufacturer | WEG |
| Application | Severe Duty |
| Frame Material | Cast Iron |
| Frame | 447/9T |
| Degree of Protection | IP56 |
| Horsepower | 300 HP |
| Kilowatts | 220 kW |
| Phase | 3 Ph |
| Rated Voltage | 460 V |
| Rated Frequency | 60 Hz |
| Rated Current | 330 A |
| Rated Speed | 1780 RPM |
| Synchronous speed | 1800 RPM |
| Pole | 4:00 PM |
| Service Factor | 1.15 SF |
| Enclosure | IC411 – TEFC |
| Mounting | Foot-mounted |
| Flange | Without |
| Rated Torque | 885 ft.lb |
| Terminal Box | Left position |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Noise level | 75.0 dB(A) |
| Misc |
