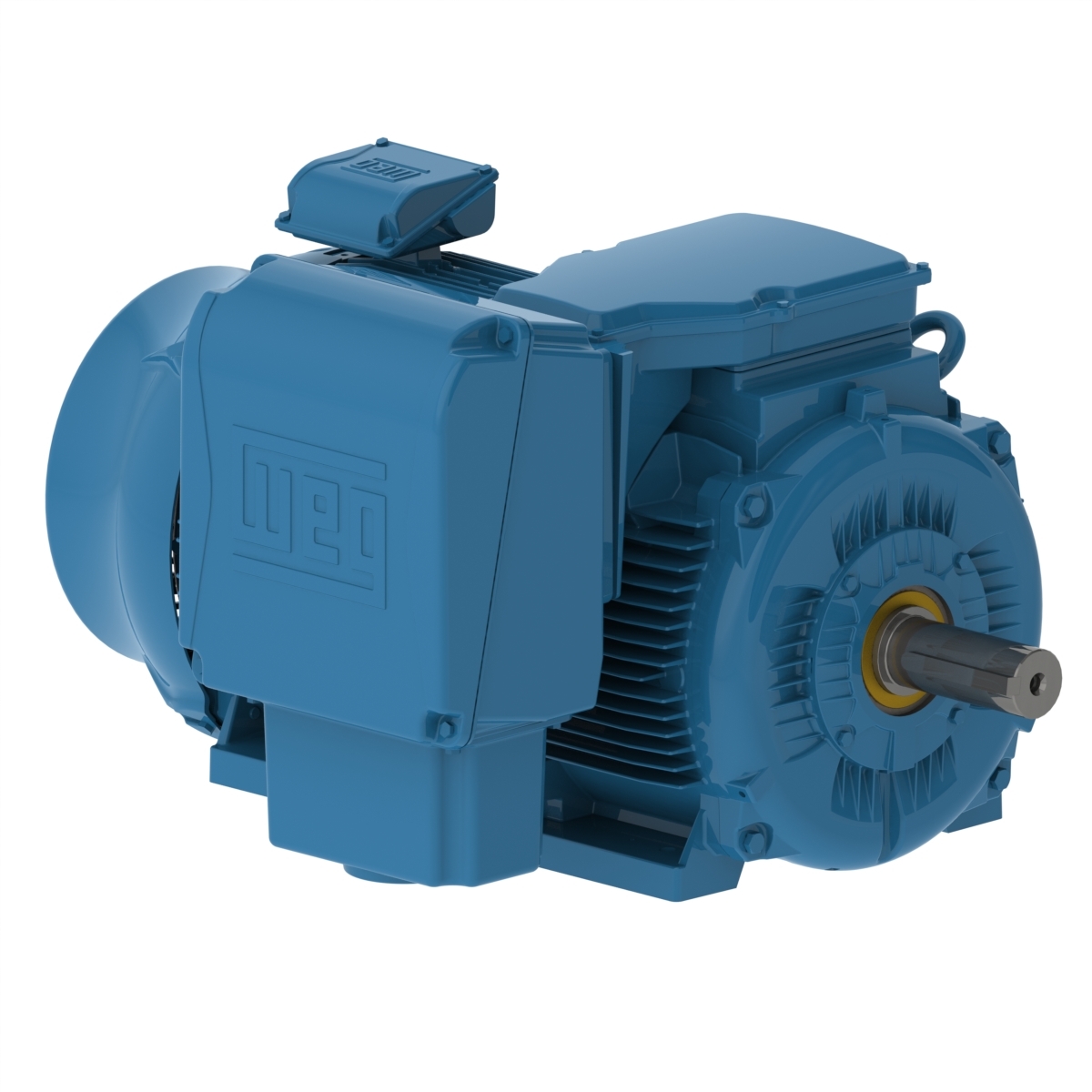

20018ET3XL449-W22MV WEG AC Motor
20018ET3XL449-W22MV – WEG AC Motor
W22Xec Medium Voltage 200 HP 4P L447/9T 3Ph 2300/4160 V 60 Hz IC411 – TEFC – Foot-mounted
Downloads: 20018ET3XL449-W22MV
Additional information
| Weight | 2747 lbs |
|---|---|
| Manufacturer | WEG |
| Application | TEFC W22Xec |
| Frame Material | Cast Iron |
| Frame | L447/9T |
| Degree of Protection | IP55 |
| Horsepower | 200 HP |
| Kilowatts | 150 kW |
| Phase | 3 Ph |
| Rated Voltage | 2300/4160 V |
| Rated Frequency | 60 Hz |
| Rated Current | 48.4 A |
| Rated Speed | 1786 RPM |
| Synchronous speed | 1800 RPM |
| Pole | 4:00 PM |
| Service Factor | 1.00 SF |
| Enclosure | IC411 – TEFC |
| Mounting | Foot-mounted |
| Flange | Without |
| Rated Torque | 588 ft.lb |
| Terminal Box | Left position |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Noise level | 79.0 dB(A) |
