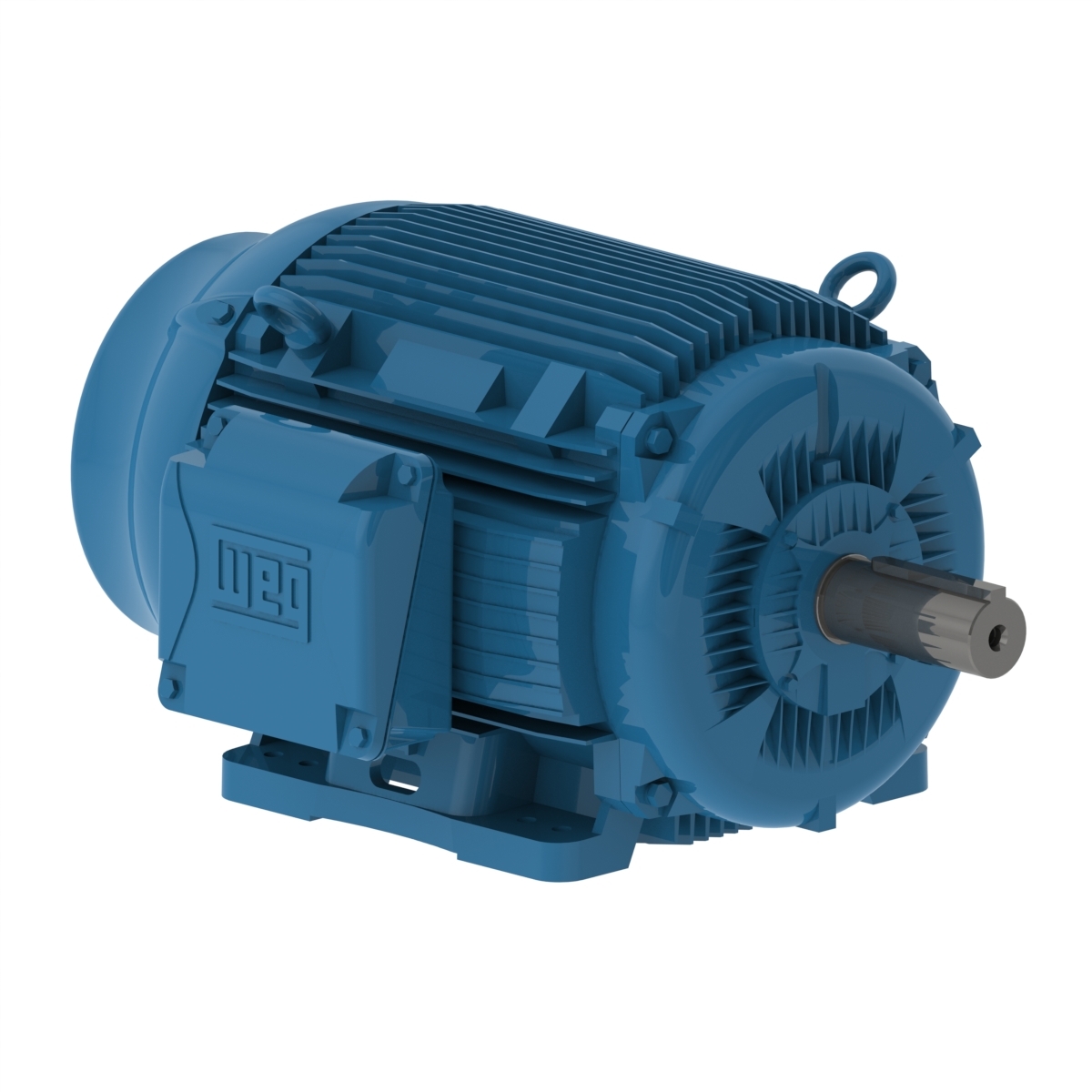

20015EP3OFP447TS-W22 WEG AC Motor
20015EP3OFP447TS-W22 – WEG AC Motor
W22 High Efficiency 200 HP 4P 445/7TS 3Ph 380-400-415 V 50 Hz IC411 – TEFC – Foot-mounted
Downloads: 20015EP3OFP447TS-W22
Additional information
| Weight | 2095 lbs |
|---|---|
| Manufacturer | WEG |
| Application | Fire Pump |
| Frame Material | Cast Iron |
| Frame | 445/7TS |
| Degree of Protection | IP55 |
| Horsepower | 200 HP |
| Kilowatts | 150 kW |
| Phase | 3 Ph |
| Rated Voltage | 380 V |
| Rated Frequency | 50 Hz |
| Rated Current | 283 A |
| Rated Speed | 1480 RPM |
| Synchronous speed | 1500 RPM |
| Pole | 4:00 PM |
| Service Factor | 1.15 SF |
| Enclosure | IC411 – TEFC |
| Mounting | Foot-mounted |
| Flange | Without |
| Rated Torque | 710 ft.lb |
| Terminal Box | Left position |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Noise level | 71.0 dB(A) |
| Misc |
