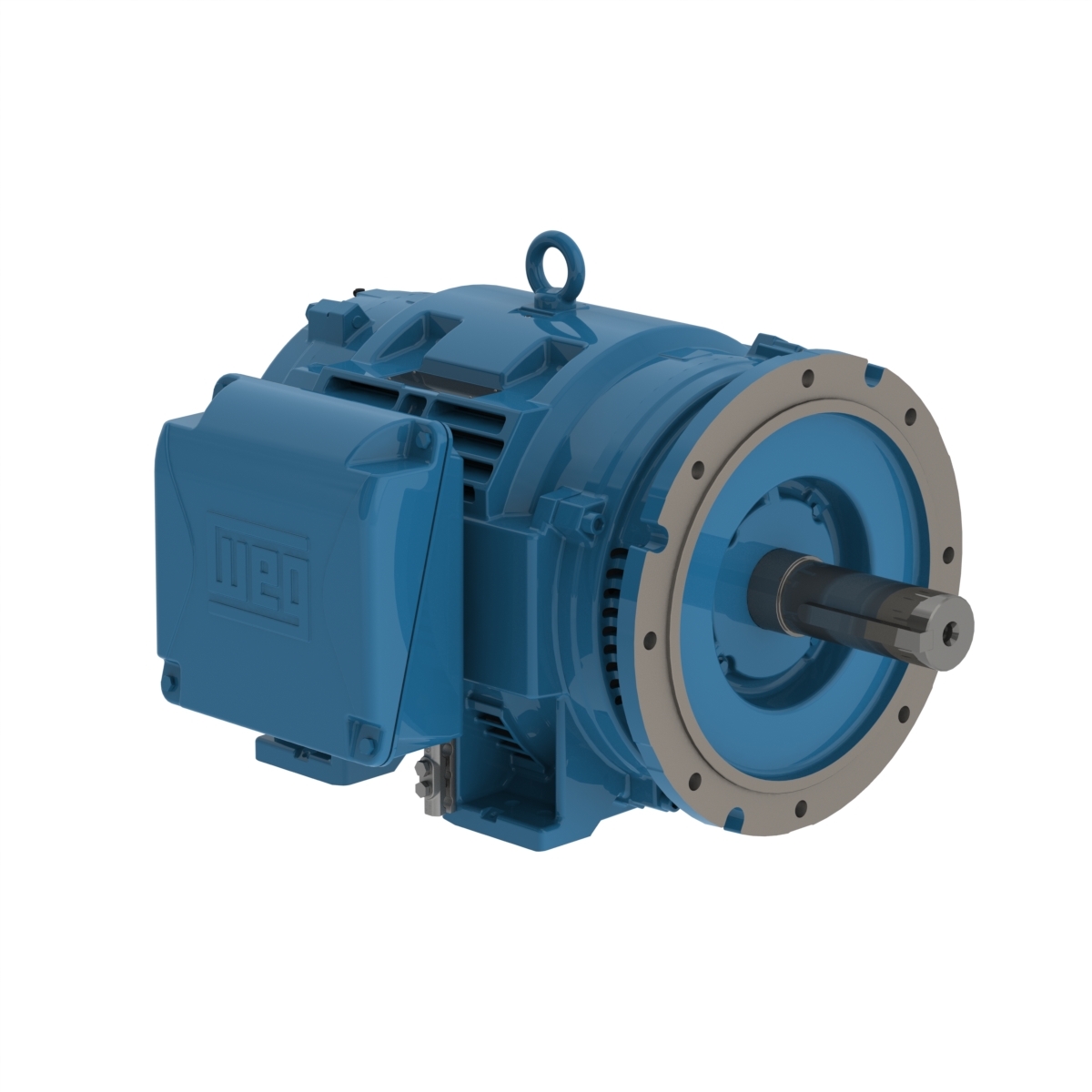

14285044 WEG AC Motor
14285044 – WEG AC Motor
W40 NEMA Premium Efficiency 30 HP 2P 284TS 3Ph 230/460//380 V 60//50 Hz IC01 – ODP – Foot-mounted
Downloads: 14285044
Additional information
| Weight | 1517 lbs |
|---|---|
| Manufacturer | WEG |
| Application | General Purpose |
| Frame Material | Cast Iron |
| Frame | 444/5TSD |
| Degree of Protection | IP23 |
| Horsepower | 250 HP |
| Kilowatts | 185 kW |
| Phase | 3 Ph |
| Rated Voltage | 460//380 V |
| Rated Frequency | 60//50 Hz |
| Rated Current | 289 A |
| Rated Speed | 1780 RPM |
| Synchronous speed | 1800 RPM |
| Pole | 4:00 PM |
| Service Factor | 1.15 SF |
| Enclosure | IC01 – ODP |
| Mounting | Foot-mounted |
| Flange | D |
| Rated Torque | 738 ft.lb |
| Terminal Box | Left position |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Noise level | 78.0 dB(A) |
| Misc |
