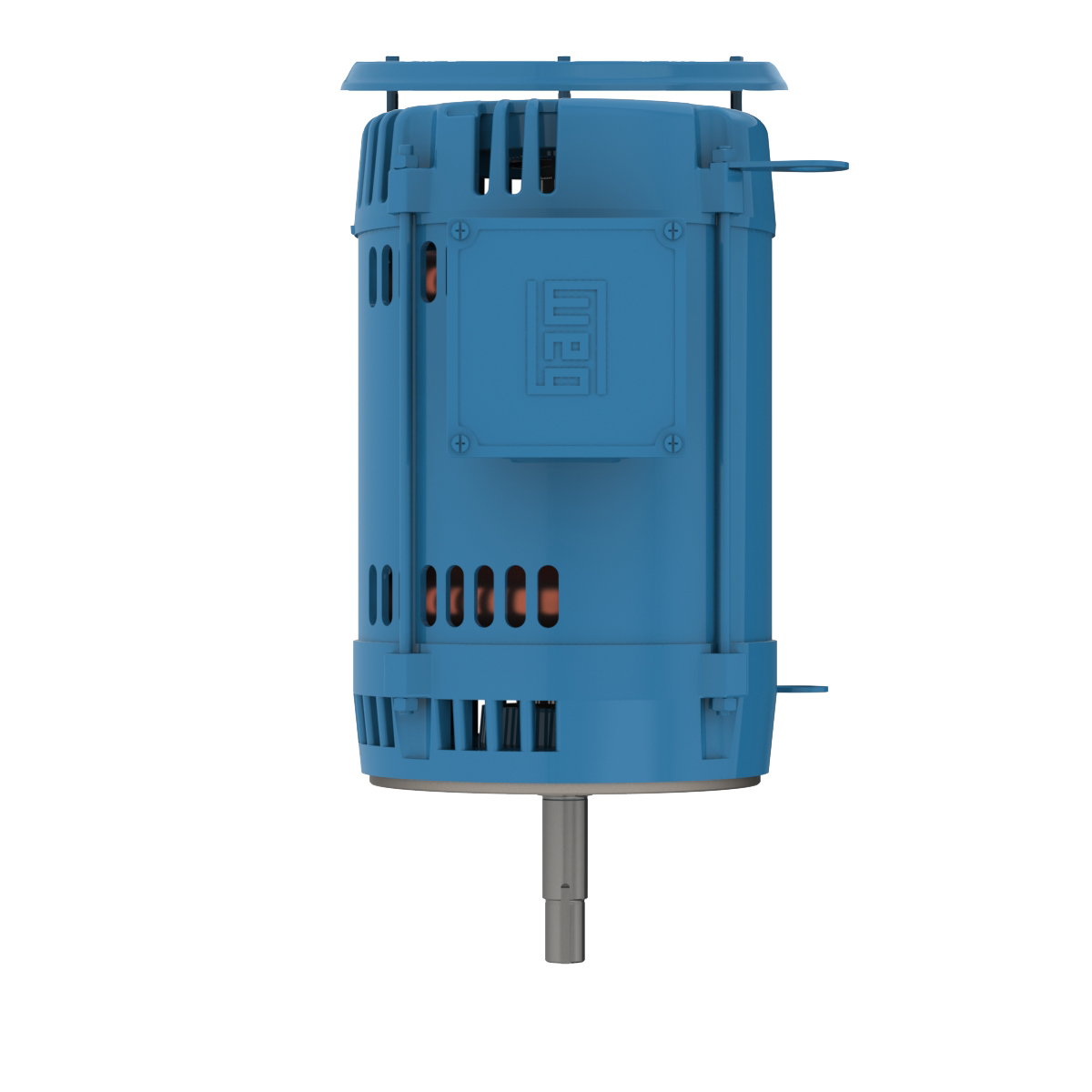

12691848 WEG AC Motor
12691848 – WEG AC Motor
Close Coupled Pump High Efficiency 7.5 HP 2P 184JM 3Ph 575 V 60 Hz IC01 – ODP – Footless
Downloads: 12691848
Additional information
| Weight | 72.5 lbs |
|---|---|
| Manufacturer | WEG |
| Application | Close Coupled JM/JP |
| Frame Material | Rolled Steel |
| Frame | 184JM |
| Degree of Protection | IP21 |
| Horsepower | 7.5 HP |
| Kilowatts | 5.5 kW |
| Phase | 3 Ph |
| Rated Voltage | 575 V |
| Rated Frequency | 60 Hz |
| Rated Current | 7.18 A |
| Rated Speed | 3485 RPM |
| Synchronous speed | 3600 RPM |
| Pole | 2:00 PM |
| Service Factor | 1.15 SF |
| Enclosure | IC01 – ODP |
| Mounting | W-6 |
| Flange | C |
| Rated Torque | 11.3 ft.lb |
| Terminal Box | Left position |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Noise level | 65 dB(A) |
