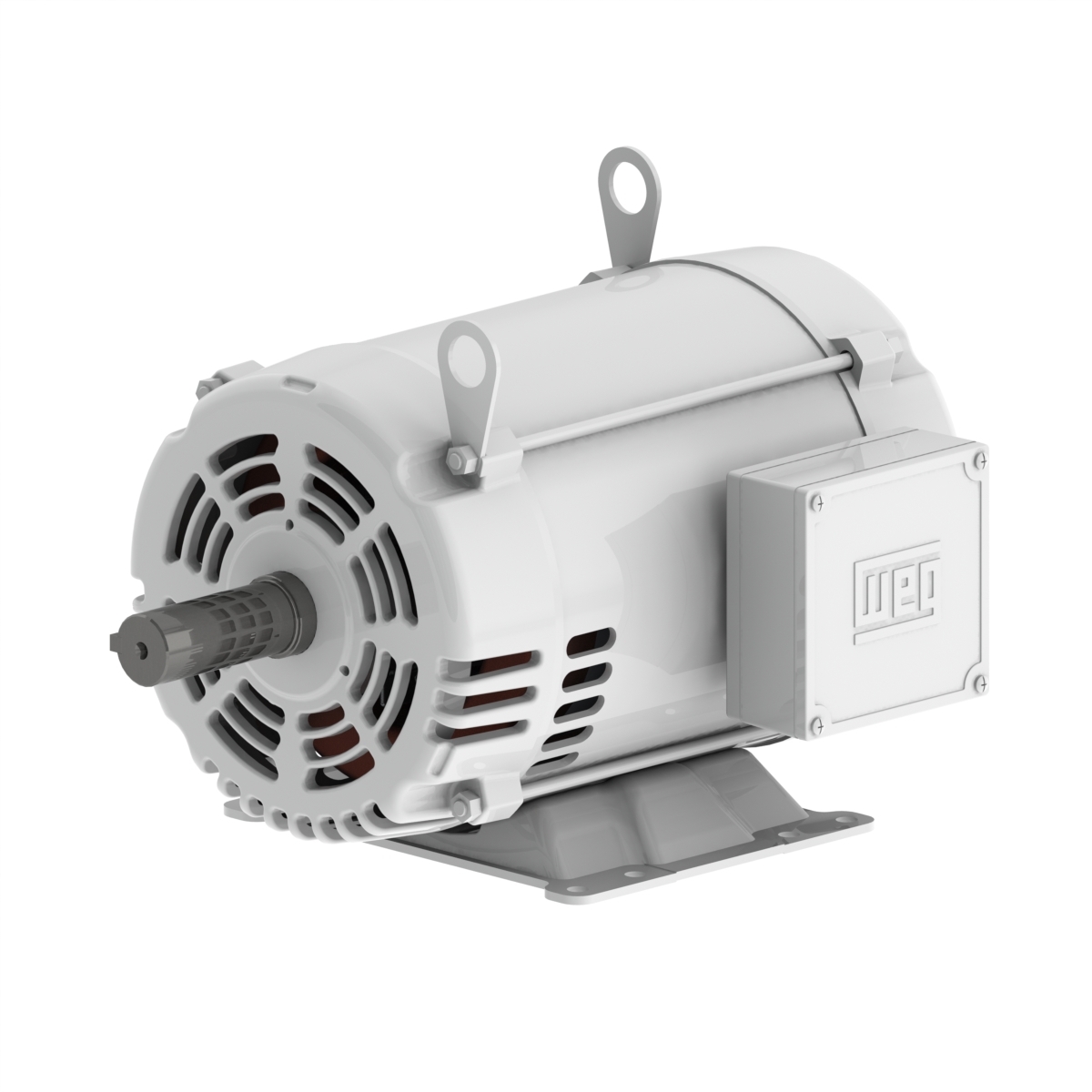

10488405 WEG AC Motor
10488405 – WEG AC Motor
General Standard Efficiency 5 HP 6P 213/5T 3Ph 208-230/460 V 60 Hz IC01 – ODP – Foot-mounted
Downloads: 10488405
Additional information
| Weight | 118 lbs |
|---|---|
| Manufacturer | WEG |
| Application | Definite Purpose |
| Frame Material | Rolled Steel |
| Frame | 213/5T |
| Degree of Protection | IP21 |
| Horsepower | 5 HP |
| Kilowatts | 3.7 kW |
| Phase | 3 Ph |
| Rated Voltage | 208-230/460 V |
| Rated Frequency | 60 Hz |
| Rated Current | 15.8-14.3/7.15 A |
| Rated Speed | 1135 RPM |
| Synchronous speed | 1200 RPM |
| Pole | 6:00 PM |
| Service Factor | 1.00 SF |
| Enclosure | IC01 – ODP |
| Mounting | Foot-mounted |
| Flange | Without |
| Rated Torque | 23.1 ft.lb |
| Terminal Box | Right position |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Noise level | 59.0 dB(A) |
