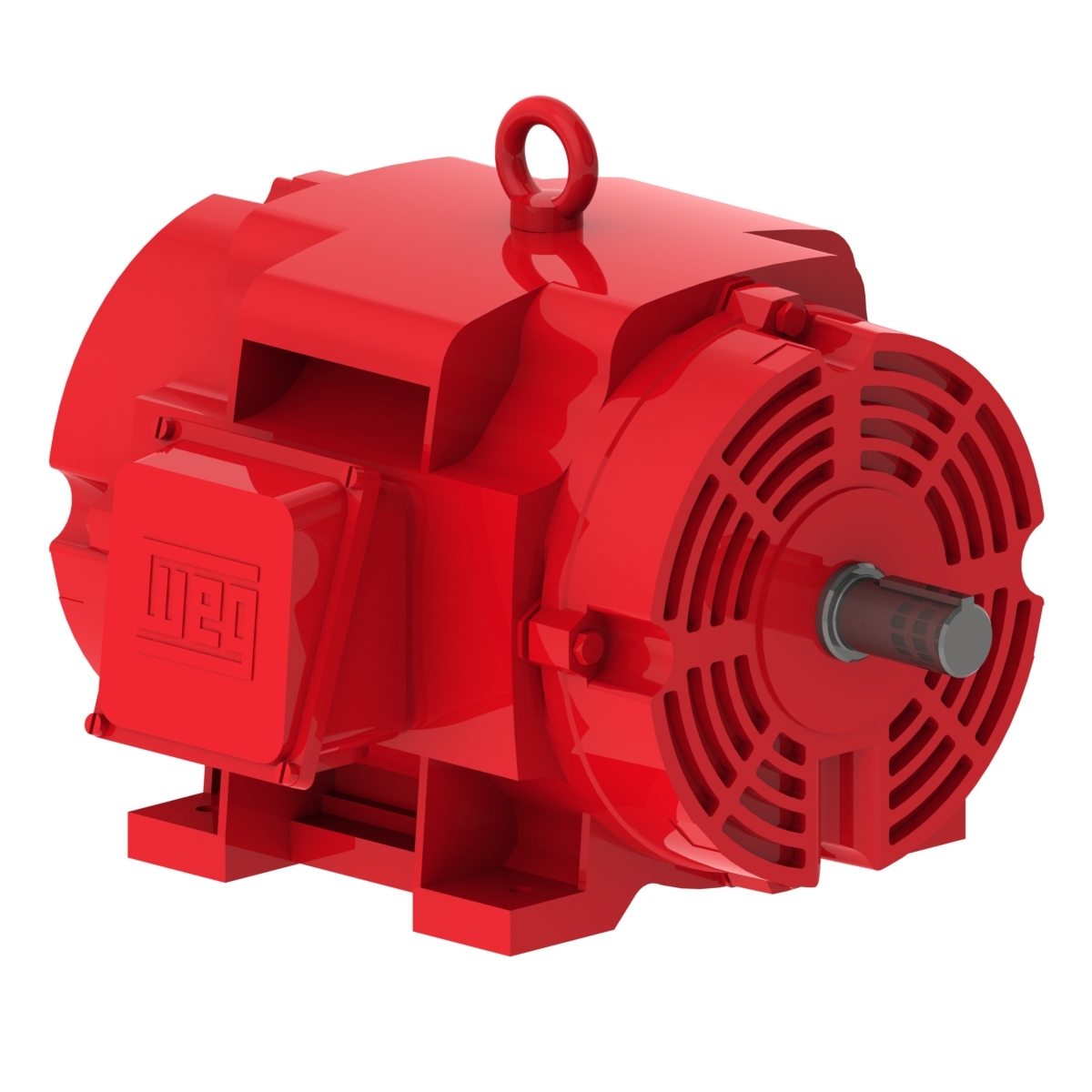

10018OP3EFP404TS WEG AC Motor
10018OP3EFP404TS – WEG AC Motor
ODP High Efficiency 100 HP 4P 404/5TS 3Ph 230/460 V 60 Hz IC01 – ODP – Foot-mounted
Downloads: 10018OP3EFP404TS
Additional information
| Weight | 881 lbs |
|---|---|
| Manufacturer | WEG |
| Application | Fire Pump |
| Frame Material | Cast Iron |
| Frame | 404/5TS |
| Degree of Protection | IP23 |
| Horsepower | 100 HP |
| Kilowatts | 75 kW |
| Phase | 3 Ph |
| Rated Voltage | 230/460 V |
| Rated Frequency | 60 Hz |
| Rated Current | 236/118 A |
| Rated Speed | 1775 RPM |
| Synchronous speed | 1800 RPM |
| Pole | 4:00 PM |
| Service Factor | 1.15 SF |
| Enclosure | IC01 – ODP |
| Mounting | Foot-mounted |
| Flange | Without |
| Rated Torque | 296 ft.lb |
| Terminal Box | Left position |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Noise level | 69.0 dB(A) |
| Misc | Replaced by : 10018OP3EFP404TS-W40 – 14282263 |
