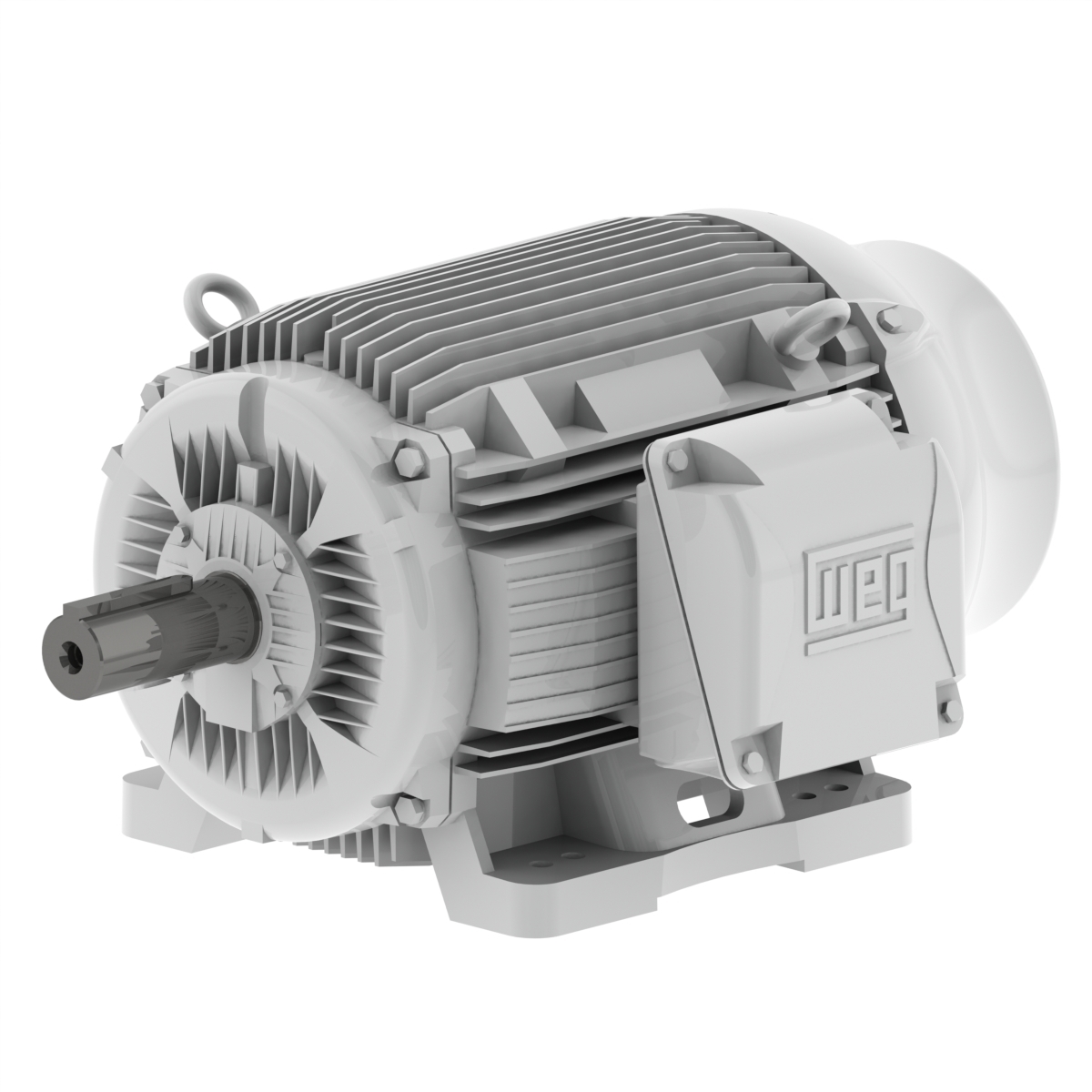

10012ES3EOW445T-W22 WEG AC Motor
10012ES3EOW445T-W22 – WEG AC Motor
W22 Standard Efficiency 100 HP 6P 444/5T 3Ph 208-230/460 V 60 Hz IC411 – TEFC – Foot-mounted
Downloads: 10012ES3EOW445T-W22
Additional information
| Weight | 1871 lbs |
|---|---|
| Manufacturer | WEG |
| Application | Definite Purpose |
| Frame Material | Cast Iron |
| Frame | 444/5T |
| Degree of Protection | IP55 |
| Horsepower | 100 HP |
| Kilowatts | 75 kW |
| Phase | 3 Ph |
| Rated Voltage | 208-230/460 V |
| Rated Frequency | 60 Hz |
| Rated Current | 281-254/127 A |
| Rated Speed | 1150 RPM |
| Synchronous speed | 1200 RPM |
| Pole | 6:00 PM |
| Service Factor | 1.15 SF |
| Enclosure | IC411 – TEFC |
| Mounting | Foot-mounted |
| Flange | Without |
| Rated Torque | 457 ft.lb |
| Terminal Box | Right position |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Noise level | 69.0 dB(A) |
