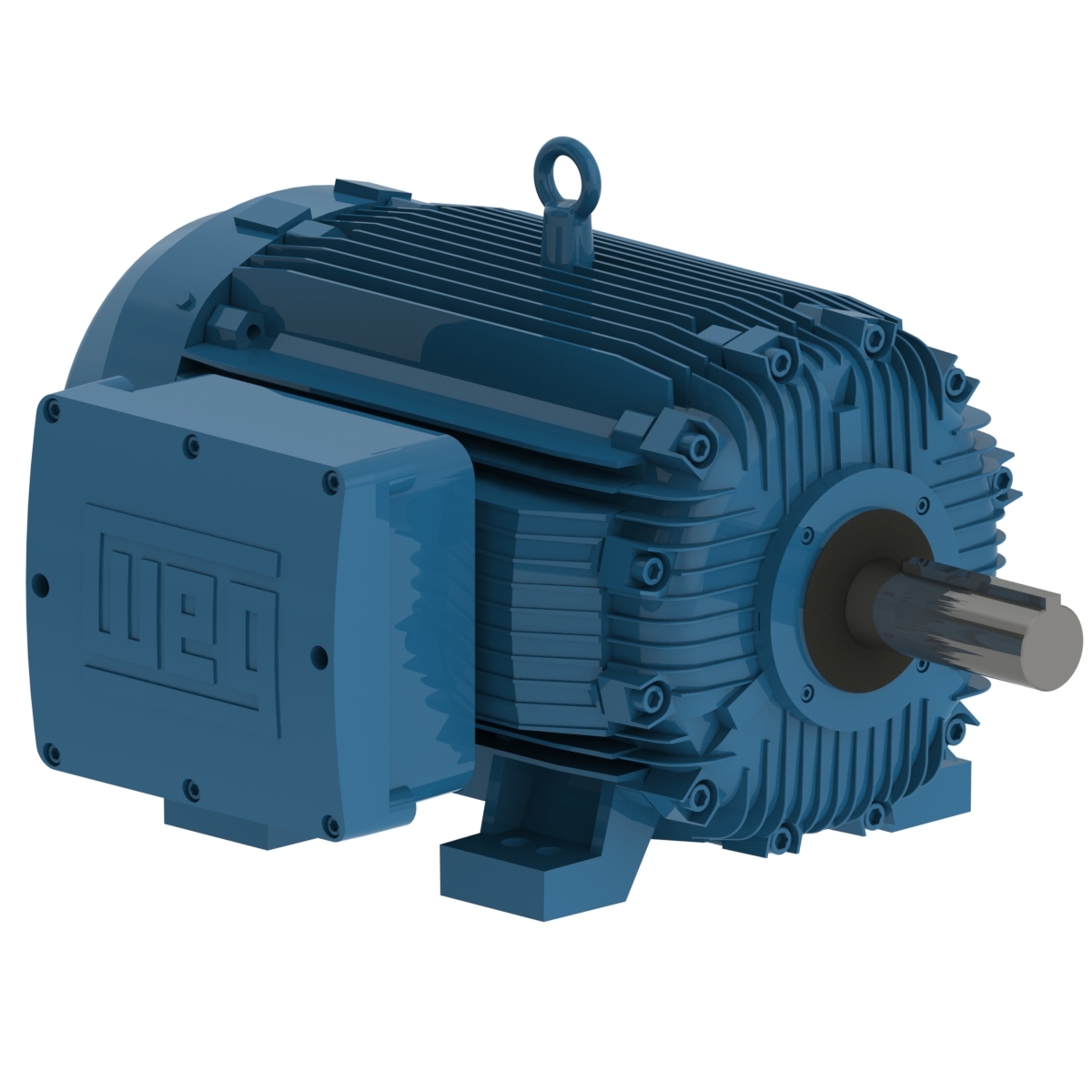

07509XT3E444T WEG AC Motor
07509XT3E444T – WEG AC Motor
W21 Explosion-proof Motor NEMA Premium Efficiency 75 HP 8P 444/5T 3Ph 230/460//380 V 60//50 Hz IC411 – TEFC – Foot-mounted
Downloads: 07509XT3E444T
Additional information
| Weight | 1954 lbs |
|---|---|
| Manufacturer | WEG |
| Application | Explosion Proof DIP |
| Frame Material | Cast Iron |
| Frame | 444/5T |
| Degree of Protection | IP55 |
| Horsepower | 75 HP |
| Kilowatts | |
| Phase | 3 Ph |
| Rated Voltage | 230/460//380 V |
| Rated Frequency | 60//50 Hz |
| Rated Current | |
| Rated Speed | 900 RPM |
| Synchronous speed | 900 RPM |
| Pole | 8:00 PM |
| Service Factor | |
| Enclosure | |
| Mounting | Foot-mounted |
| Flange | Without |
| Rated Torque | |
| Terminal Box | Left position |
| Ambient temperature | |
| Altitude | |
| Noise level | |
| Misc |
