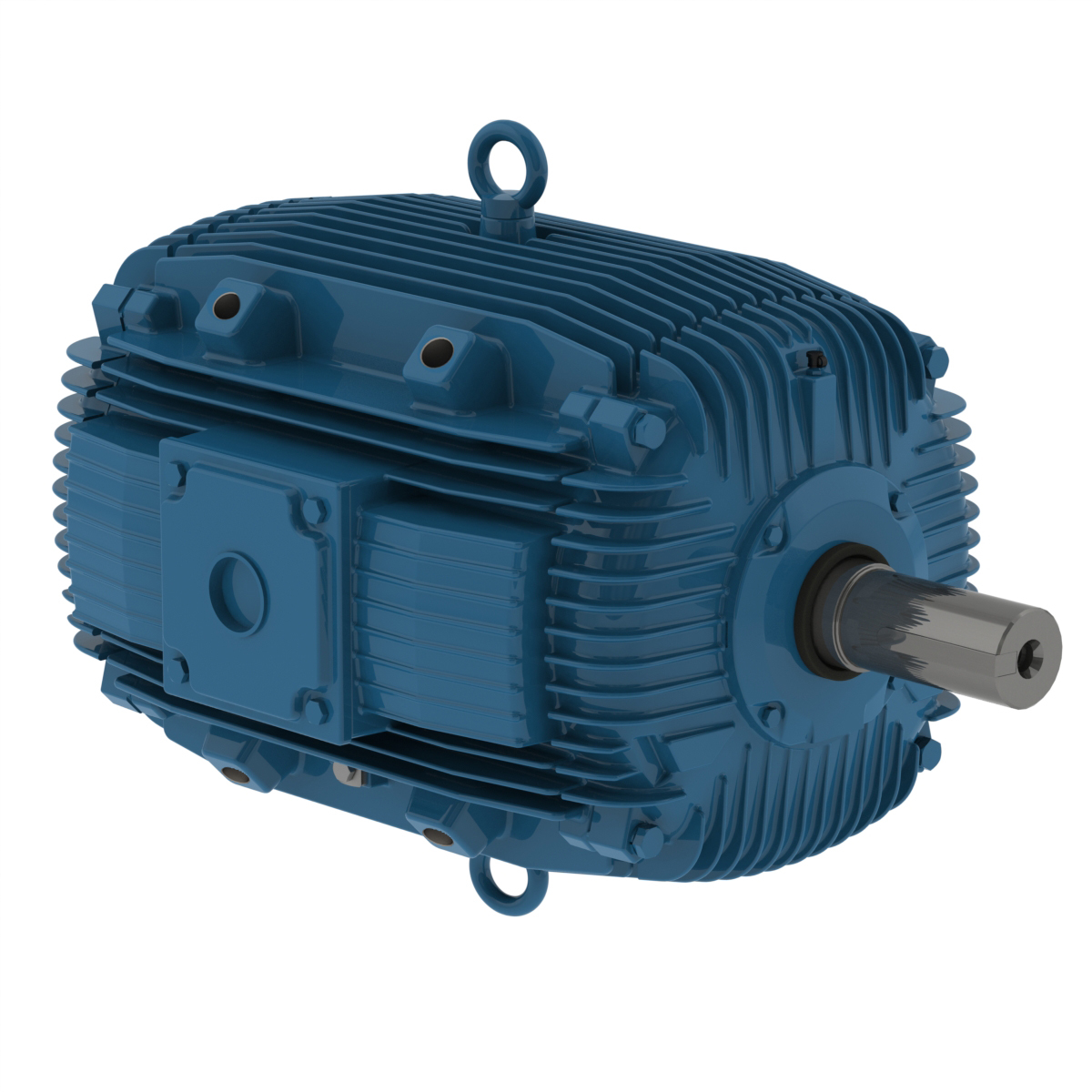

06012EP3EPM404/5Y WEG AC Motor
06012EP3EPM404/5Y – WEG AC Motor
W21 High Efficiency 60 HP 6P 404/5T 3Ph 230/460 V 60 Hz IC418 – TEAO – Footless
Downloads: 06012EP3EPM404/5Y
Additional information
| Weight | 988 lbs |
|---|---|
| Manufacturer | WEG |
| Application | Air Handling |
| Frame Material | Cast Iron |
| Frame | 404/5T |
| Degree of Protection | IP56 |
| Horsepower | 60 HP |
| Kilowatts | 45 kW |
| Phase | 3 Ph |
| Rated Voltage | 230/460 V |
| Rated Frequency | 60 Hz |
| Rated Current | 140/70.2 A |
| Rated Speed | 1180 RPM |
| Synchronous speed | 1200 RPM |
| Pole | 6:00 PM |
| Service Factor | 1.25 SF |
| Enclosure | IC418 – TEAO |
| Mounting | Footless |
| Flange | Without |
| Rated Torque | 267 ft.lb |
| Terminal Box | Left position |
| Ambient temperature | 40°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Noise level | 65.0 dB(A) |
| Misc |
