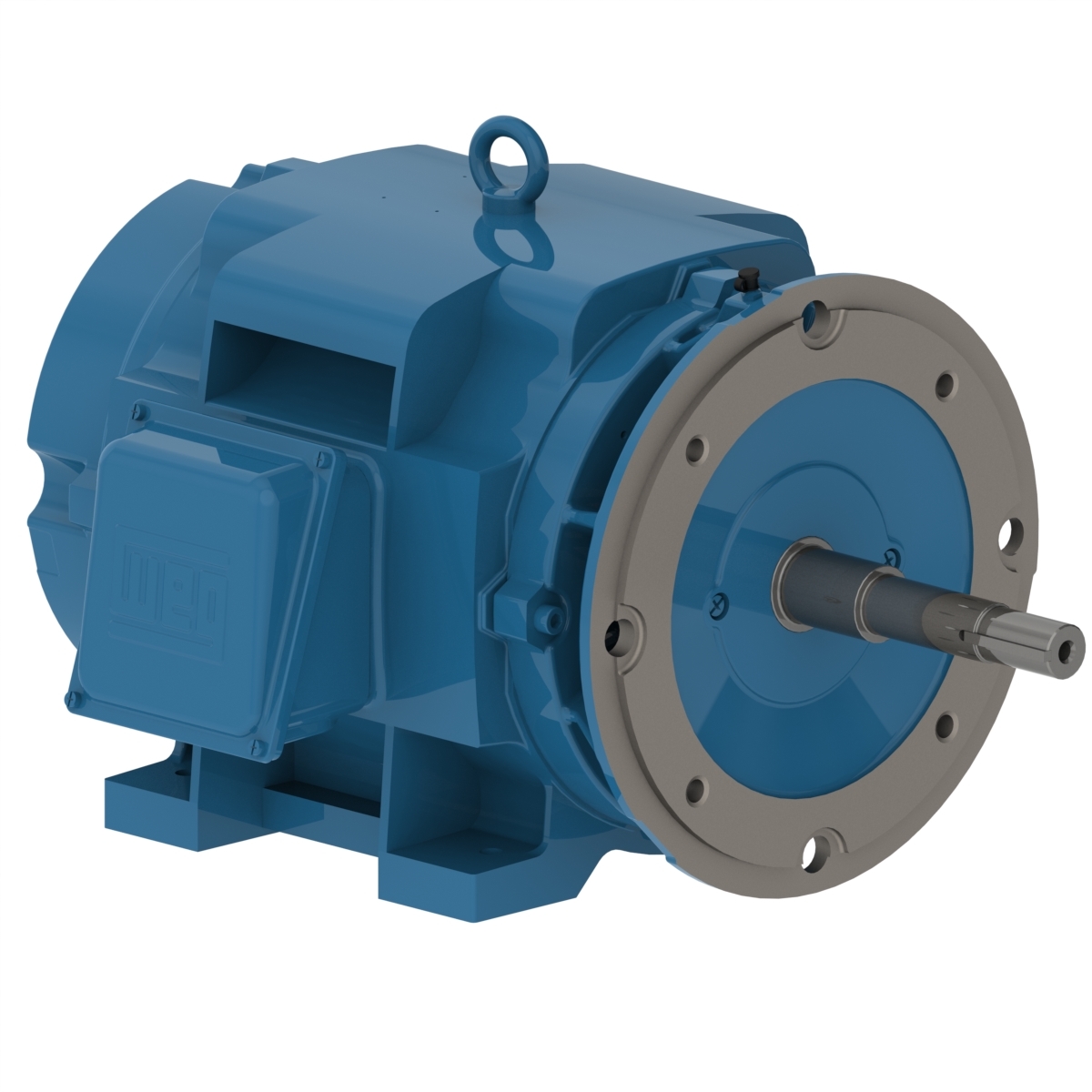

05018OT3H326JP WEG AC Motor
05018OT3H326JP – WEG AC Motor
Close Coupled Pump NEMA Premium Efficiency 50 HP 4P 326JP 3Ph 230/460 V 60 Hz IC01 – ODP – Foot-mounted
Downloads: 05018OT3H326JP
Additional information
| Weight | 545 lbs |
|---|---|
| Manufacturer | WEG |
| Application | Close Coupled JM/JP |
| Frame Material | Cast Iron |
| Frame | 326JP |
| Degree of Protection | IP23 |
| Horsepower | 50 HP |
| Kilowatts | 37 kW |
| Phase | 3 Ph |
| Rated Voltage | 230/460 V |
| Rated Frequency | 60 Hz |
| Rated Current | 120/59.9 A |
| Rated Speed | 1775 RPM |
| Synchronous speed | 1800 RPM |
| Pole | 4:00 PM |
| Service Factor | 1.15 SF |
| Enclosure | IC01 – ODP |
| Mounting | F-1 |
| Flange | C |
| Rated Torque | 148 ft.lb |
| Terminal Box | Left position |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Noise level | 65 dB(A) |
| Misc | Replaced by : 05018OT3H326JP-W40 – 14490084 |
