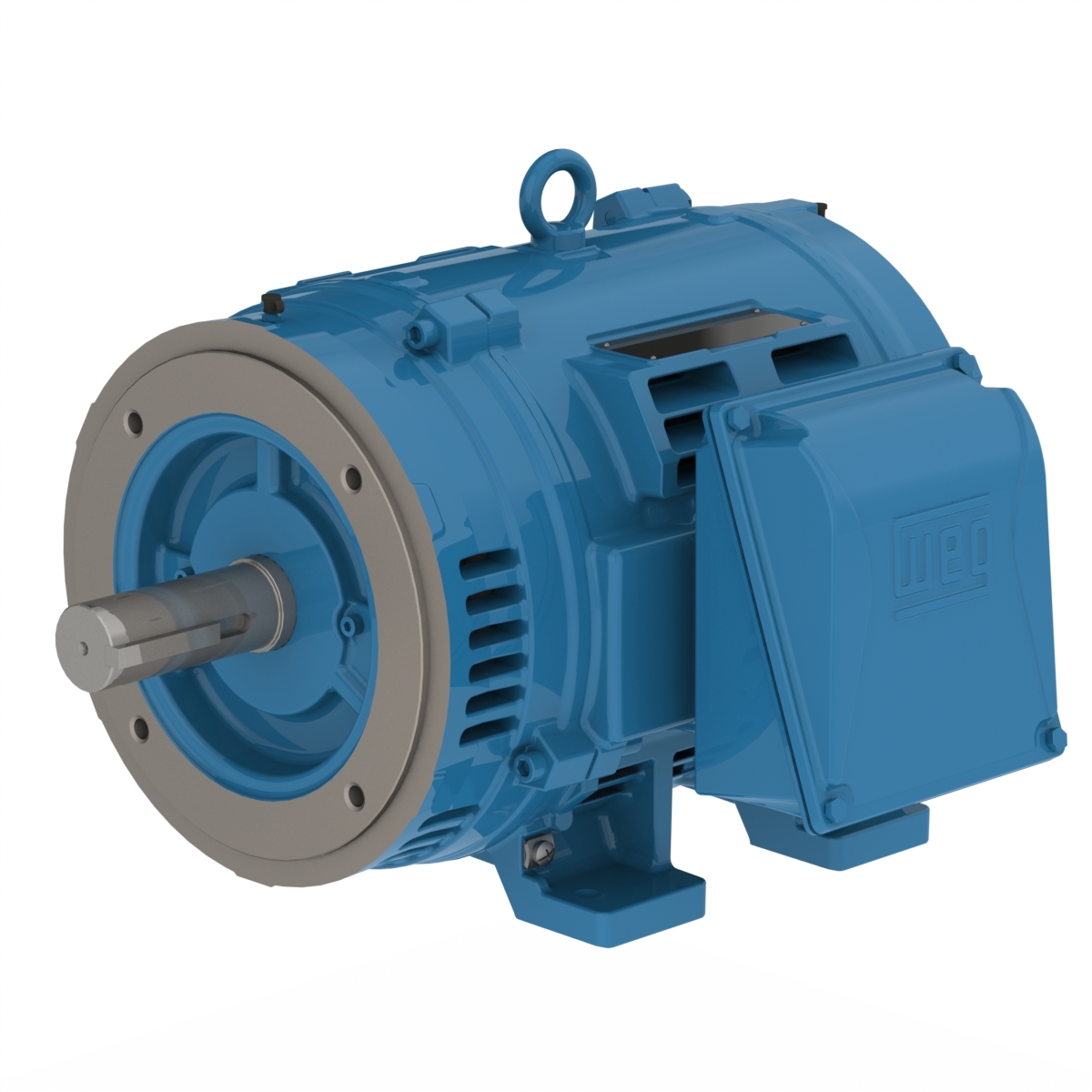

05018OT3E326TSCF2-W4 WEG AC Motor

05018OT3E326TSCF2-W4 WEG AC Motor - Image 2

05018OT3E326TSCF2-W4 WEG AC Motor

05018OT3E326TSCF2-W4 – WEG AC Motor

W40 NEMA Premium Efficiency 50 HP 6P 364/5T 3Ph 230/460//380 V 60//50 Hz IC01 – ODP – Foot-mounted
Downloads: 05018OT3E326TSCF2-W4

SKU: 05018OT3E326TSCF2-W4 Category: WEG Electric Corp - AC Motors - Single Phase & 3 Phase

Description
Additional information

Description

05018OT3E326TSCF2-W4 – WEG AC Motor. W40 is a platform of Open Drip Proof motors (ODP) designed for industrial application in order to have a compact and light solution for the customer. The platform was designed to meet the market requirements of optimized and rugged motors, complying with international standard dimensions, safety and performance requirements.

Downloads: 05018OT3E326TSCF2-W4

Additional information

Weight	522 lbs
Manufacturer	WEG
Application	General Purpose
Frame Material	Cast Iron
Frame	324/6TSC
Degree of Protection	IP23
Horsepower	50 HP
Kilowatts	37 kW
Phase	3 Ph
Rated Voltage	230/460//380 V
Rated Frequency	60//50 Hz
Rated Current	117/58.5 A
Rated Speed	1775 RPM
Synchronous speed	1800 RPM
Pole	4:00 PM
Service Factor	1.25 SF
Enclosure	IC01 – ODP
Mounting	Foot-mounted
Flange	C
Rated Torque	148 ft.lb
Terminal Box	Right position
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Noise level	66.0 dB(A)
