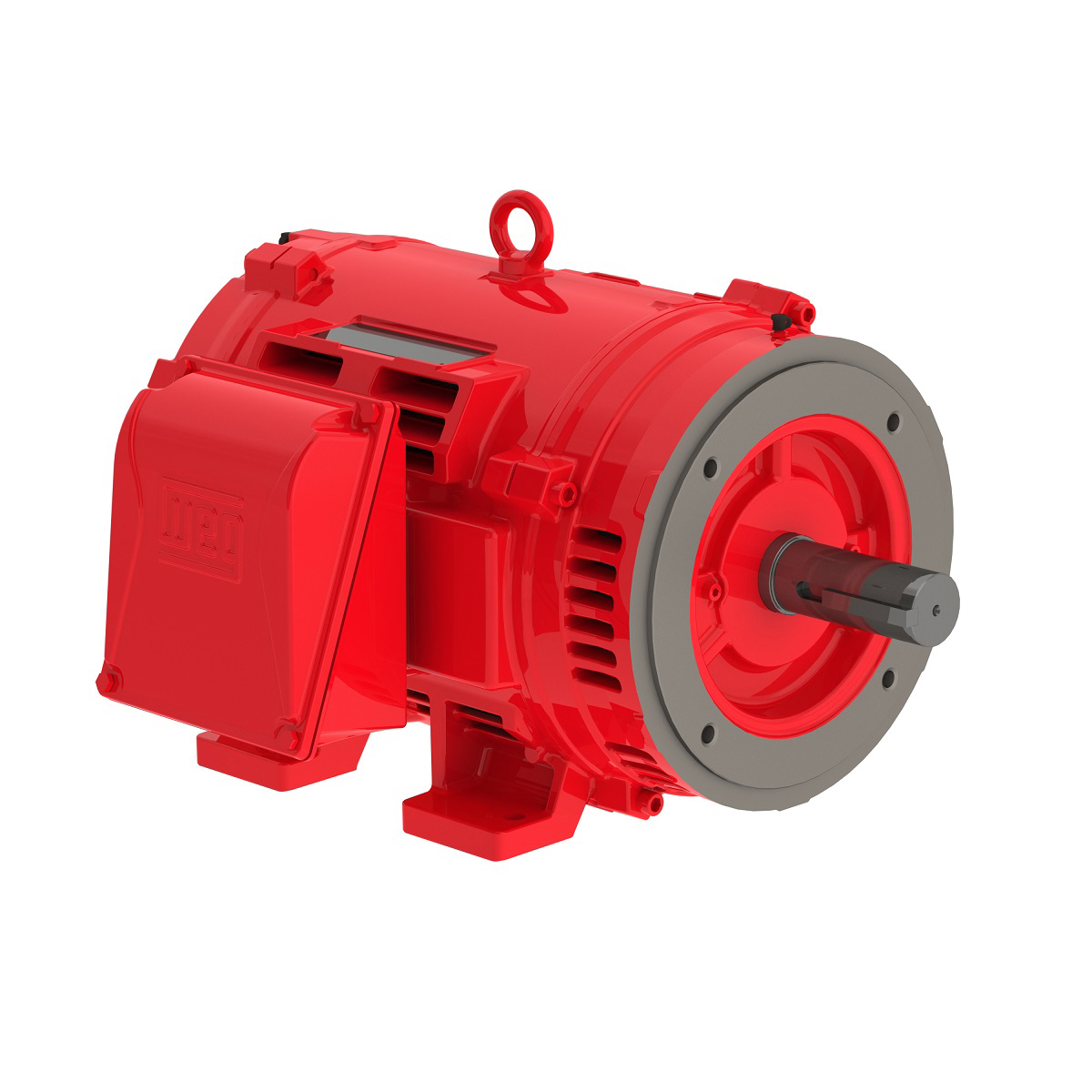

05018OP3EFP326TC-W40 WEG AC Motor
05018OP3EFP326TC-W40 – WEG AC Motor
W40 High Efficiency 50 HP 4P 324/6TC 3Ph 230/460//380 V 60//50 Hz IC01 – ODP – Foot-mounted
Downloads: 05018OP3EFP326TC-W40
Additional information
| Weight | 520 lbs |
|---|---|
| Manufacturer | WEG |
| Application | Fire Pump |
| Frame Material | Cast Iron |
| Frame | 324/6TC |
| Degree of Protection | IP23 |
| Horsepower | 50 HP |
| Kilowatts | 37 kW |
| Phase | 3 Ph |
| Rated Voltage | 230/460 V |
| Rated Frequency | 60 Hz |
| Rated Current | 120/60.2 A |
| Rated Speed | 1770 RPM |
| Synchronous speed | 1800 RPM |
| Pole | 4:00 PM |
| Service Factor | |
| Enclosure | IC01 – ODP |
| Mounting | Foot-mounted |
| Flange | C |
| Rated Torque | 148 ft.lb |
| Terminal Box | Left position |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Noise level | |
| Misc |
