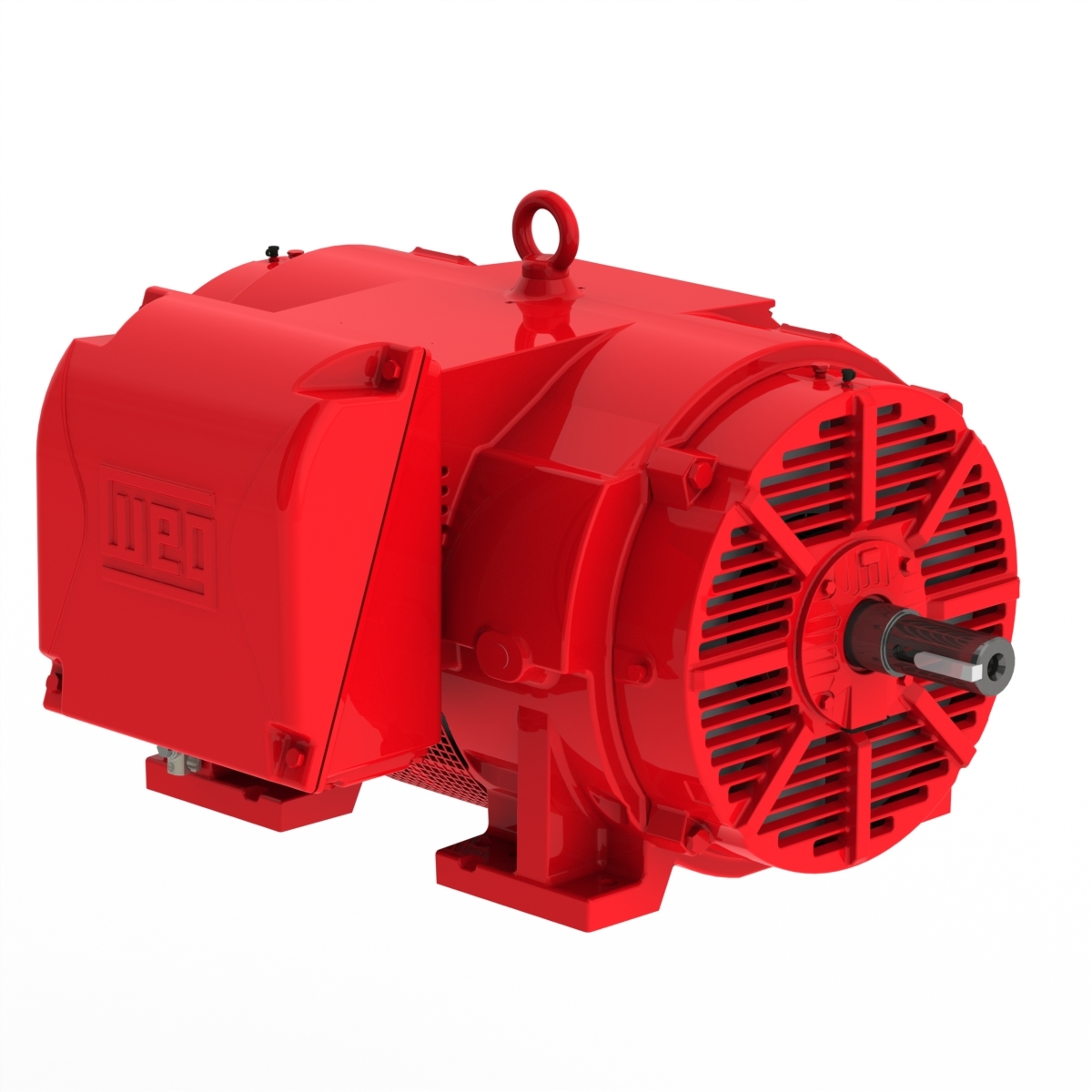

05015OP3OFP326TS-W40 WEG AC Motor
05015OP3OFP326TS-W40 – WEG AC Motor
W40 High Efficiency 50 HP 4P 324/6TS 3Ph 380-400-415 V 50 Hz IC01 – ODP – Foot-mounted
Downloads: 05015OP3OFP326TS-W40
Additional information
| Weight | 531 lbs |
|---|---|
| Manufacturer | WEG |
| Application | Fire Pump |
| Frame Material | Cast Iron |
| Frame | 324/6TS |
| Degree of Protection | IP23 |
| Horsepower | 50 HP |
| Kilowatts | 37 kW |
| Phase | 3 Ph |
| Rated Voltage | 380 V |
| Rated Frequency | 50 Hz |
| Rated Current | 73.7 A |
| Rated Speed | 1471 RPM |
| Synchronous speed | 1500 RPM |
| Pole | 4:00 PM |
| Service Factor | 1.15 SF |
| Enclosure | IC01 – ODP |
| Mounting | Foot-mounted |
| Flange | Without |
| Rated Torque | 178 ft.lb |
| Terminal Box | Left position |
| Ambient temperature | -20°C to +50°C |
| Altitude | 1000 m.a.s.l. |
| Noise level | |
| Misc |
