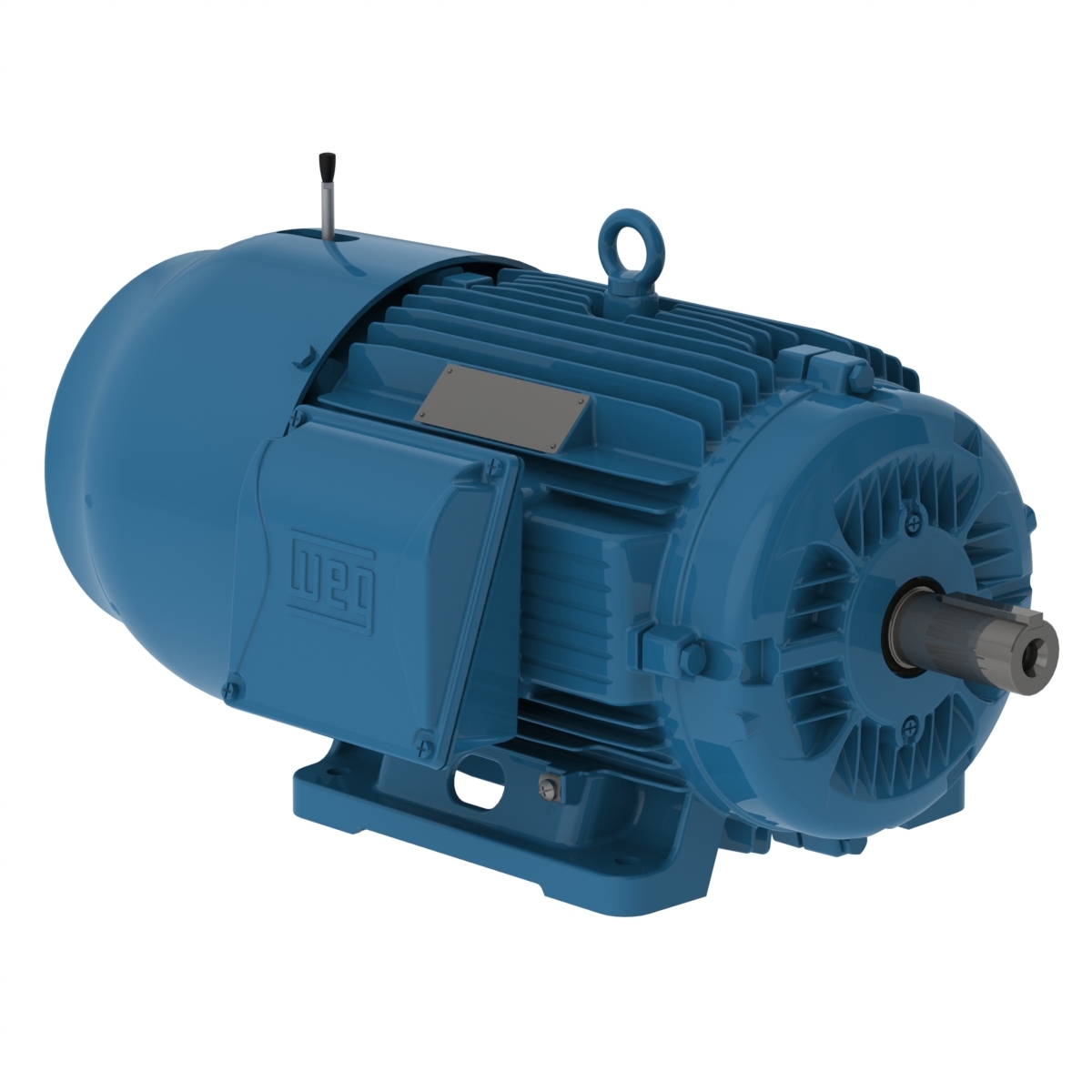

03018ET3EBM286T-W22 – WEG AC Motor

W22 Brake Motor NEMA Premium Efficiency 30 HP 4P 284/6T 3Ph 230/460 V 60 Hz IC411 – TEFC – Foot-mounted
Downloads: 03018ET3EBM286T-W22

SKU: 03018ET3EBM286T-W22 Category: WEG Electric Corp - AC Motors - 1 Phase & 3 Phase

Description
Additional information

Description

03018ET3EBM286T-W22 – WEG AC Motor. The W22 Brake Motor is the ideal motor for applications that require immediate, accurate and safe stops, and position control. They meet the needs of different applications, such as load elevators, hoists, shears, machining equipment, looms, packaging machines, conveyors, washing and bottling machines, bending machines, among others.

Downloads: 03018ET3EBM286T-W22

Additional information

Weight	513 lbs
Manufacturer	WEG
Application	Brake Motor
Frame Material	Cast Iron
Frame	284/6T
Degree of Protection	IP55
Horsepower	30 HP
Kilowatts	22 kW
Phase	3 Ph
Rated Voltage	230/460 V
Rated Frequency	60 Hz
Rated Current	70.2/35.1 A
Rated Speed	1770 RPM
Synchronous speed	1800 RPM
Pole	4:00 PM
Service Factor
Enclosure	IC411 – TEFC
Mounting	Foot-mounted
Flange	Without
Rated Torque	89.0 ft.lb
Terminal Box
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Noise level	63.0 dB(A)
