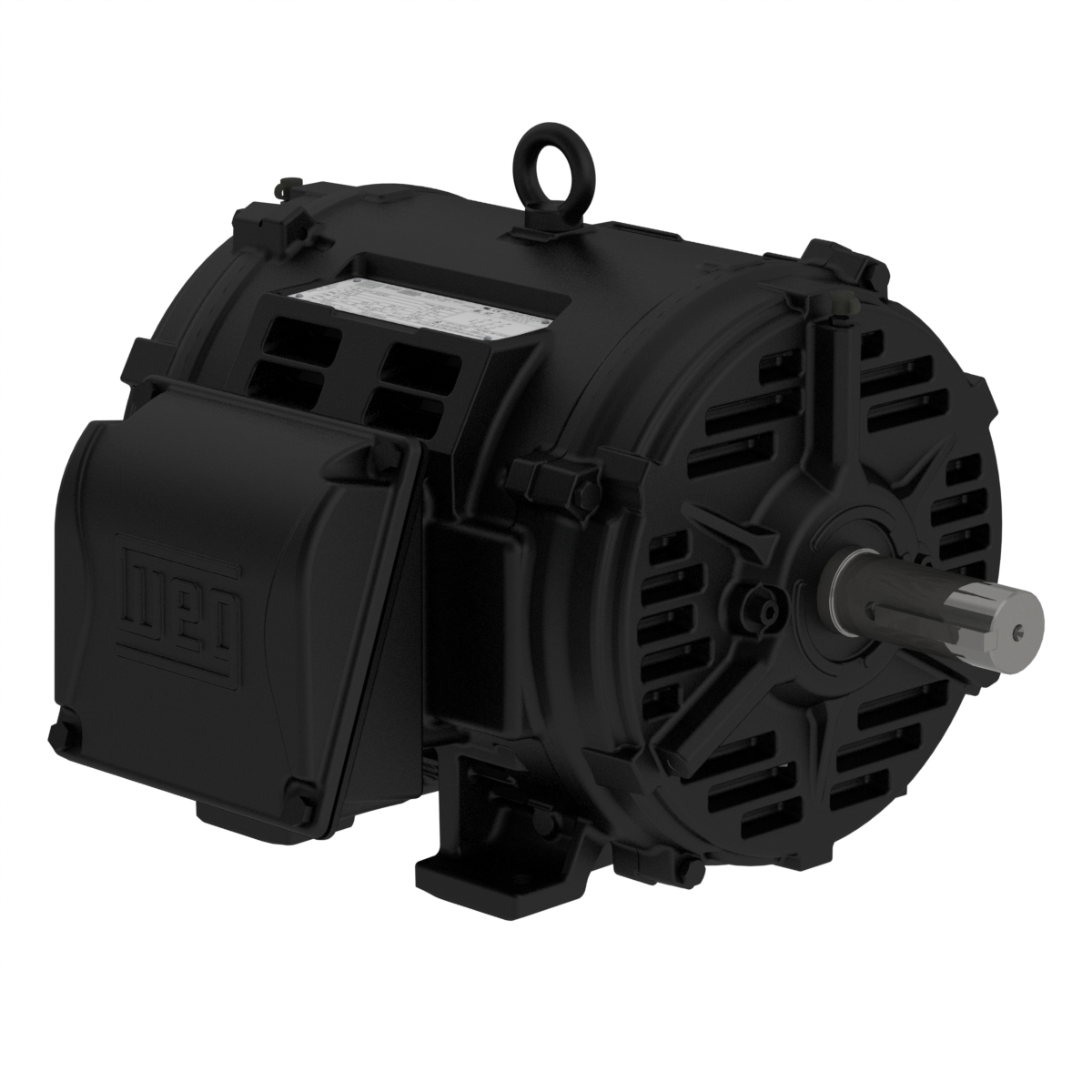

02536OT3ECD256T-W40 WEG AC Motor
02536OT3ECD256T-W40 – WEG AC Motor
W40 NEMA Premium Efficiency 25 HP 2P 254/6T 3Ph 230/460//380 V 60//50 Hz IC01 – ODP – Foot-mounted
Downloads: 02536OT3ECD256T-W40
Additional information
| Weight | 250 lbs |
|---|---|
| Manufacturer | WEG |
| Application | Definite Purpose |
| Frame Material | Cast Iron |
| Frame | 254/6T |
| Degree of Protection | IP23 |
| Horsepower | 25 HP |
| Kilowatts | 18.5 kW |
| Phase | 3 Ph |
| Rated Voltage | 230/460 V |
| Rated Frequency | 60//50 Hz |
| Rated Current | 57.6/28.8 A |
| Rated Speed | 3535 RPM |
| Synchronous speed | 3600 RPM |
| Pole | 2:00 PM |
| Service Factor | 1.25 SF |
| Enclosure | IC01 – ODP |
| Mounting | Foot-mounted |
| Flange | Without |
| Rated Torque | 37.1 ft.lb |
| Terminal Box | Left position |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Noise level | |
