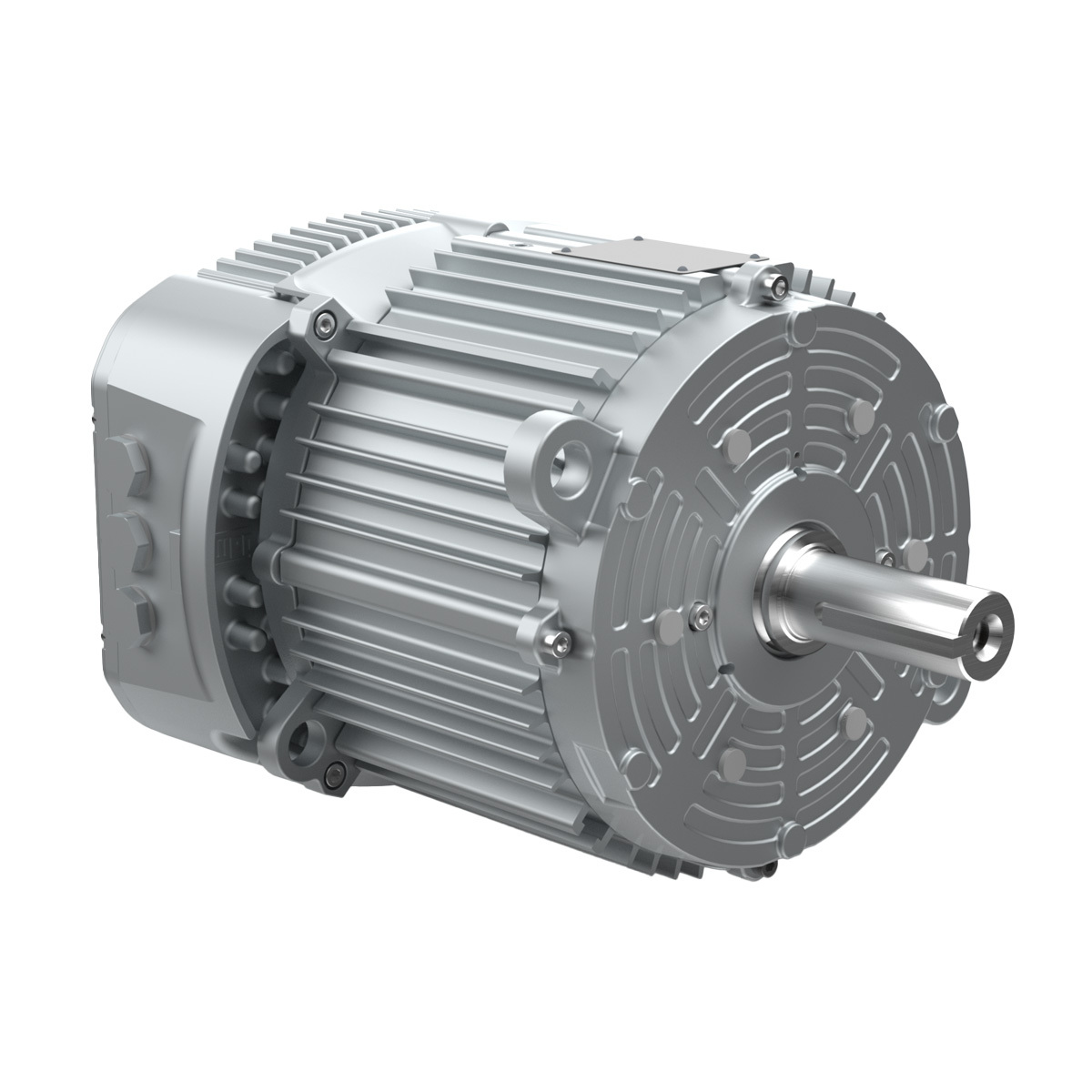

02018OT3E256JP-W40 WEG AC Motor
02018OT3E256JP-W40 – W40 JP Pump NEMA Premium Efficiency 20 HP 4P 254/6JP 3Ph 230/460//380 V 60//50 Hz IC01 – ODP – Foot-mounted
Downloads: 02018OT3E256JP-W40
Additional information
| Weight | 284 lbs |
|---|---|
| Manufacturer | WEG |
| Application | Close Coupled JM/JP |
| Frame Material | Cast Iron |
| Frame | 254/6JP |
| Degree of Protection | IP23 |
| Horsepower | 20 HP |
| Kilowatts | 15 kW |
| Phase | 3 Ph |
| Rated Voltage | 230/460 V |
| Rated Frequency | 60 Hz |
| Rated Current | 48.2/24.1 A |
| Rated Speed | 1770 RPM |
| Synchronous speed | 1800 RPM |
| Pole | 4:00 PM |
| Service Factor | 1.25 SF |
| Enclosure | IC01 – ODP |
| Mounting | F-1 |
| Flange | C |
| Rated Torque | 59.3 ft.lb |
| Terminal Box | Left position |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Noise level | 62 dB(A) |
