Motor with steel plate frame, for general use, developed to meet different applications with maximum performance and economy.

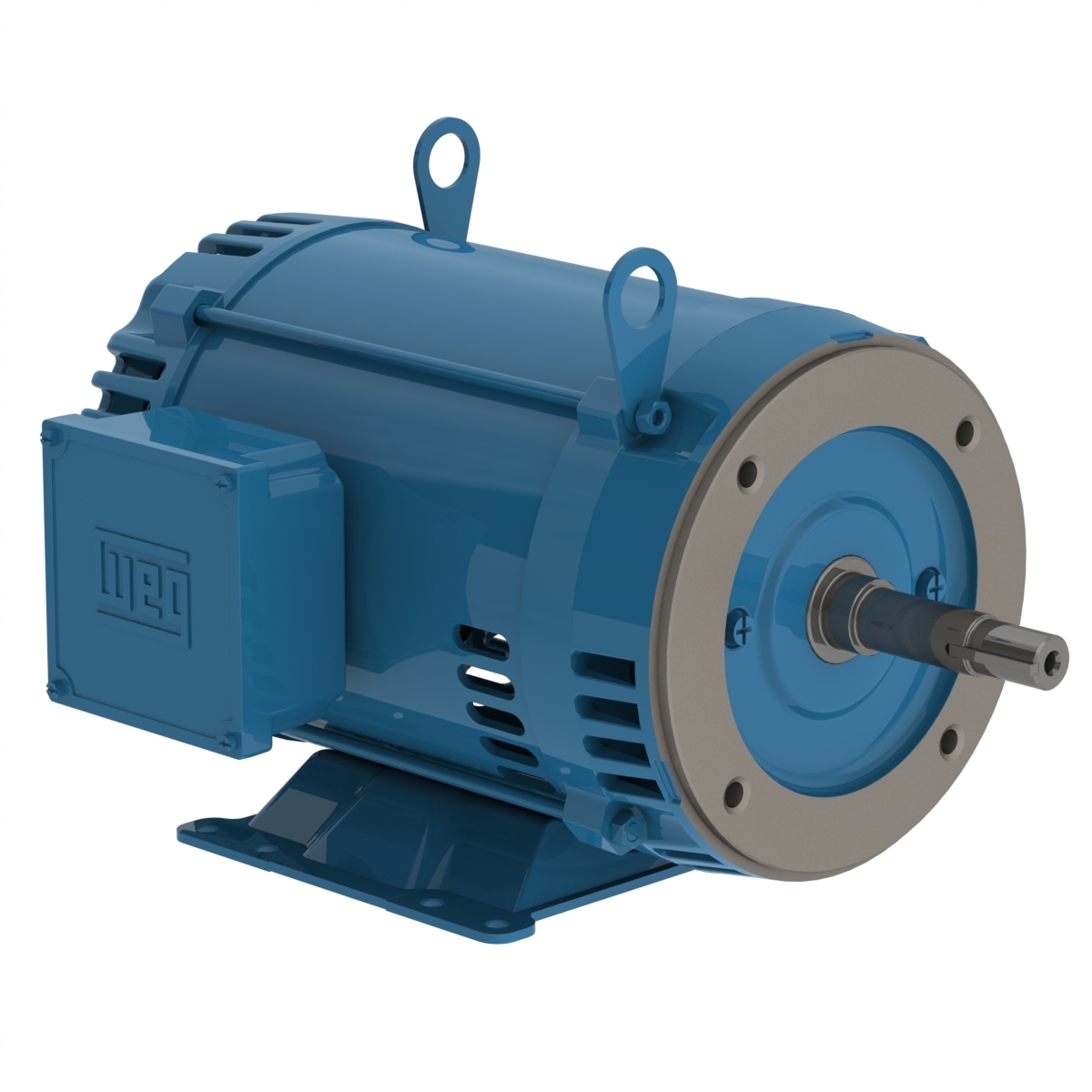

01036OT3H213JM WEG AC Motor
01036OT3H213JM – Close Coupled Pump NEMA Premium Efficiency 10 HP 2P 213/5JM 3Ph 575 V 60 Hz IC01 – ODP – Foot-mounted
Downloads: 01036OT3H213JM
Additional information
| Weight | 128 lbs |
|---|---|
| Manufacturer | WEG |
| Application | Close Coupled JM/JP |
| Frame Material | Rolled Steel |
| Frame | 213/5JM |
| Degree of Protection | IP21 |
| Horsepower | 10 HP |
| Kilowatts | 7.5 kW |
| Phase | 3 Ph |
| Rated Voltage | 575 V |
| Rated Frequency | 60 Hz |
| Rated Current | 9.52 A |
| Rated Speed | 3540 RPM |
| Synchronous speed | 3600 RPM |
| Pole | 2:00 PM |
| Service Factor | 1.15 SF |
| Enclosure | IC01 – ODP |
| Mounting | F-1 |
| Flange | C |
| Rated Torque | 14.8 ft.lb |
| Terminal Box | Left position |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Noise level | 68 dB(A) |
| Misc | Replaced by : 01036OT3H213JM-S – 12676955 |
