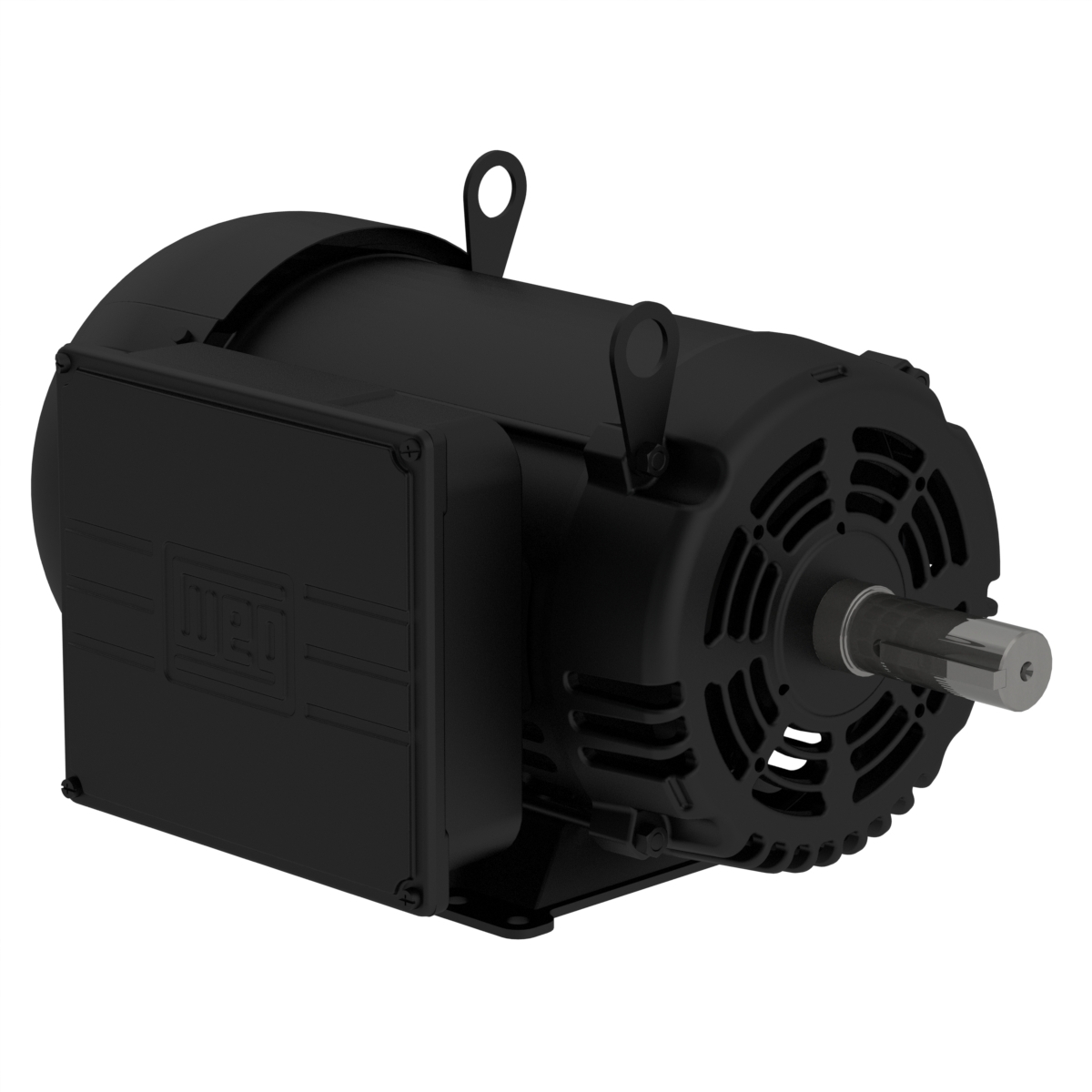

01018OS1CCD215T WEG AC Motor
01018OS1CCD215T – WEG AC Motor
Motor 10 HP 4P 215T 1Ph 208-230 V 60 Hz IC01 – ODP – Foot-mounted
Downloads: 01018OS1CCD215T
Additional information
| Weight | 161 lbs |
|---|---|
| Manufacturer | WEG |
| Application | Definite Purpose |
| Frame Material | Rolled Steel |
| Frame | 215T |
| Degree of Protection | IP21 |
| Horsepower | 10 HP |
| Kilowatts | 7.5 kW |
| Phase | 1 Ph |
| Rated Voltage | 208-230 V |
| Rated Frequency | 60 Hz |
| Rated Current | 46.3-41.8 A |
| Rated Speed | 1730 RPM |
| Synchronous speed | 1800 RPM |
| Pole | 4:00 PM |
| Service Factor | 1.15 SF |
| Enclosure | IC01 – ODP |
| Mounting | Foot-mounted |
| Flange | Without |
| Rated Torque | 30.4 ft.lb |
| Terminal Box | Left position |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Noise level | |
| Misc |
