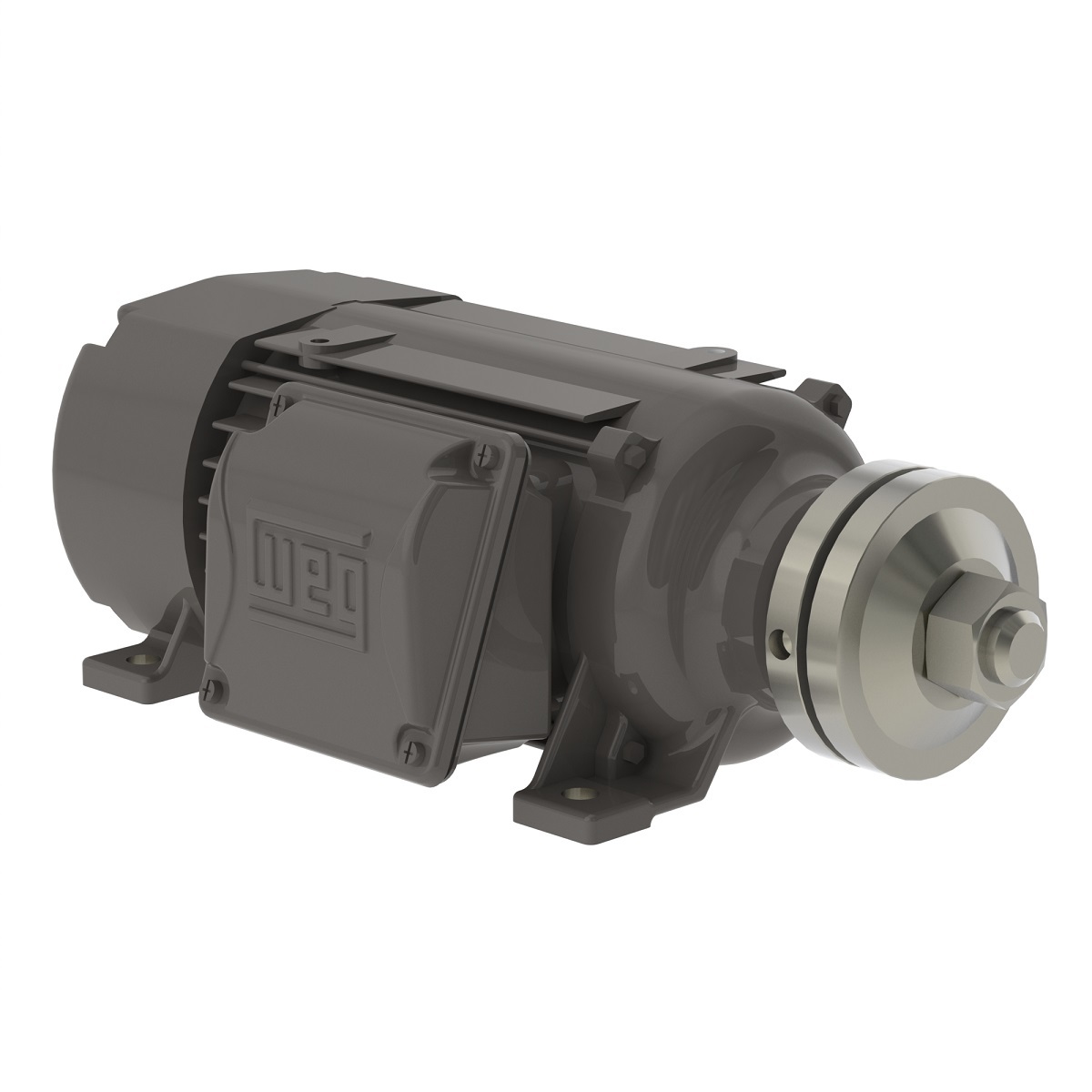

01018ES3ESA90LR WEG AC Motor
01018ES3ESA90LR – WEG AC Motor
Saw Arbor Motor Standard Efficiency 10 HP 4P 90L/MS 3Ph 208-230/460 V 60 Hz IC411 – TEFC – B3R(D)
Downloads: 01018ES3ESA90LR
Additional information
| Weight | 178 lbs |
|---|---|
| Manufacturer | WEG |
| Application | Saw Arbor |
| Frame Material | Cast Iron |
| Frame | 90L/MS |
| Degree of Protection | IP54 |
| Horsepower | 10 HP |
| Kilowatts | 7.5 kW |
| Phase | 3 Ph |
| Rated Voltage | 208-230/460 V |
| Rated Frequency | 60 Hz |
| Rated Current | 32.5-29.4/14.7 A |
| Rated Speed | 1715 RPM |
| Synchronous speed | 1800 RPM |
| Pole | 4:00 PM |
| Service Factor | 1.00 SF |
| Enclosure | IC411 – TEFC |
| Mounting | Foot-mounted |
| Flange | Without |
| Rated Torque | 30.6 ft.lb |
| Terminal Box | Left position |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Noise level | 55.0 dB(A) |
