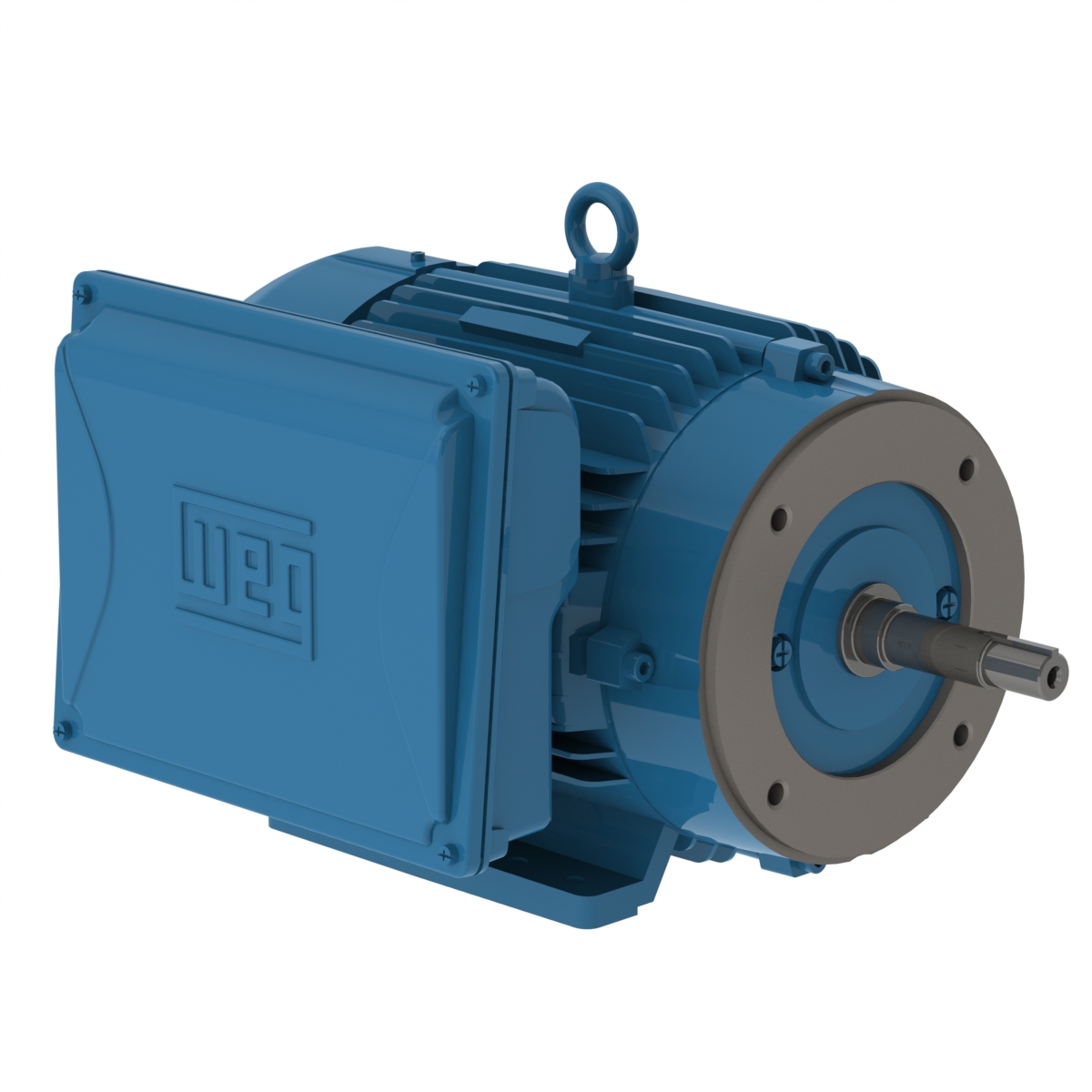

01018ES1E215JM-W22 WEG AC Motor
01018ES1E215JM-W22 – WEG AC Motor
W22 JM Pump 10 HP 4P 213/5JM 1Ph 208-230/460 V 60 Hz IC411 – TEFC – Foot-mounted
Downloads: 01018ES1E215JM-W22
01018ES1E215JM-W22 – WEG AC Motor. High starting torque
Additional information
| Weight | 197 lbs |
|---|---|
| Manufacturer | WEG |
| Application | Close Coupled JM/JP |
| Frame Material | Cast Iron |
| Frame | 213/5JM |
| Degree of Protection | IP55 |
| Horsepower | 10 HP |
| Kilowatts | 7.5 kW |
| Phase | 1 Ph |
| Rated Voltage | 208-230/460 V |
| Rated Frequency | 60 Hz |
| Rated Current | 44.5-40.8/20.4 A |
| Rated Speed | 1740 RPM |
| Synchronous speed | 1800 RPM |
| Pole | 4:00 PM |
| Service Factor | 1.15 (1.00 @ 208V) SF |
| Enclosure | IC411 – TEFC |
| Mounting | F-1 |
| Flange | C |
| Rated Torque | 30.2 ft.lb |
| Terminal Box | Left position |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Noise level | 63 dB(A) |
