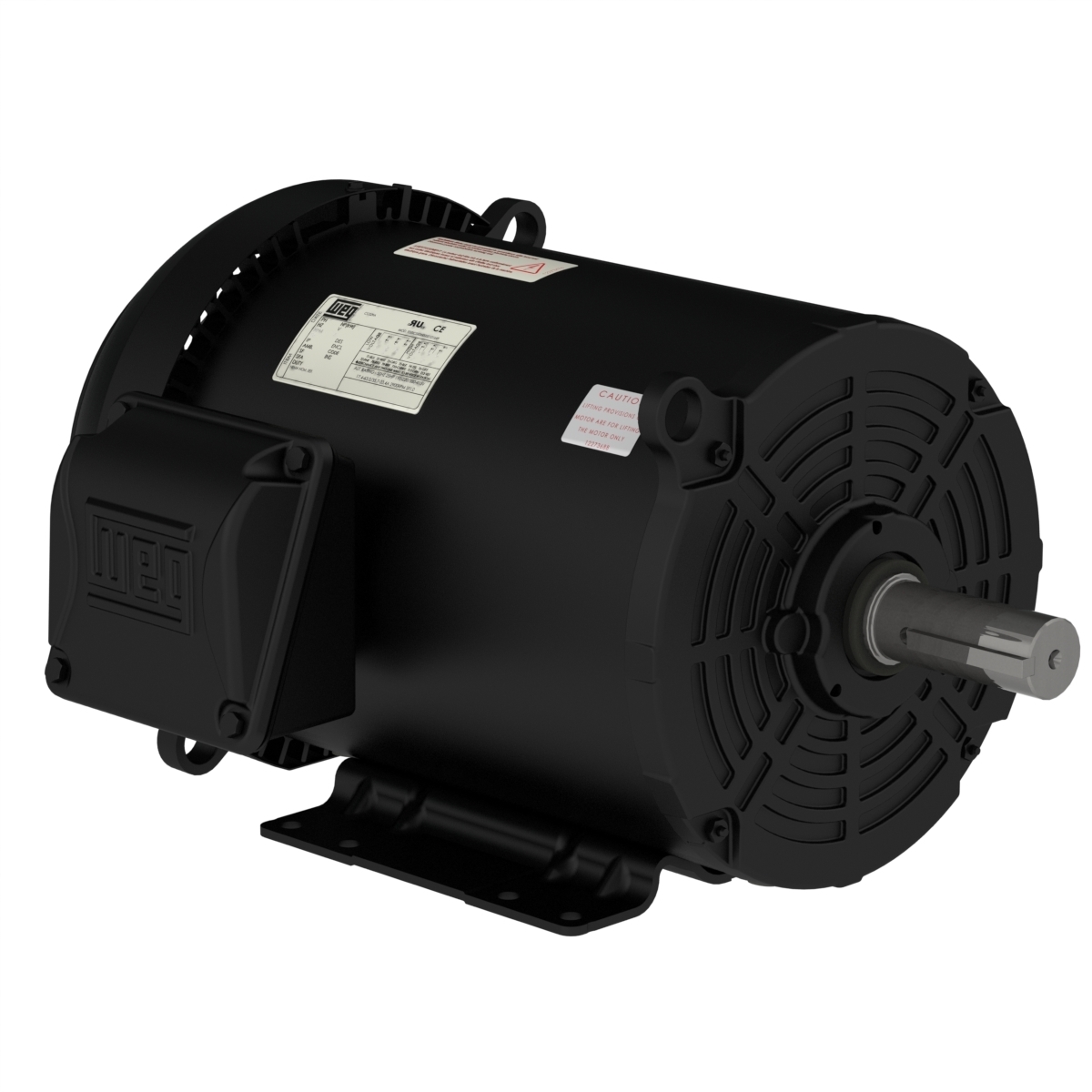

00736ET3E213T-SRG WEG AC Motor
00736ET3E213T-SRG – WEG AC Motor
Rolled Steel NEMA Premium Efficiency 7.5 HP 2P 213/5T 3Ph 208-230/460 V 60 Hz IC411 – TEFC – Foot-mounted
Downloads: 00736ET3E213T-SRG
Additional information
| Weight | 115 lbs |
|---|---|
| Manufacturer | WEG |
| Application | Air Handling |
| Frame Material | Rolled Steel |
| Frame | 213/5T |
| Degree of Protection | IP55 |
| Horsepower | 7.5 HP |
| Kilowatts | 5.5 kW |
| Phase | 3 Ph |
| Rated Voltage | 208-230/460 V |
| Rated Frequency | 60 Hz |
| Rated Current | 19.4-17.5/8.76 A |
| Rated Speed | 3515 RPM |
| Synchronous speed | 3600 RPM |
| Pole | 2:00 PM |
| Service Factor | 1.15 SF |
| Enclosure | IC411 – TEFC |
| Mounting | Foot-mounted |
| Flange | Without |
| Rated Torque | 11.2 ft.lb |
| Terminal Box | Left position |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Noise level | 70.0 dB(A) |
| Misc |
