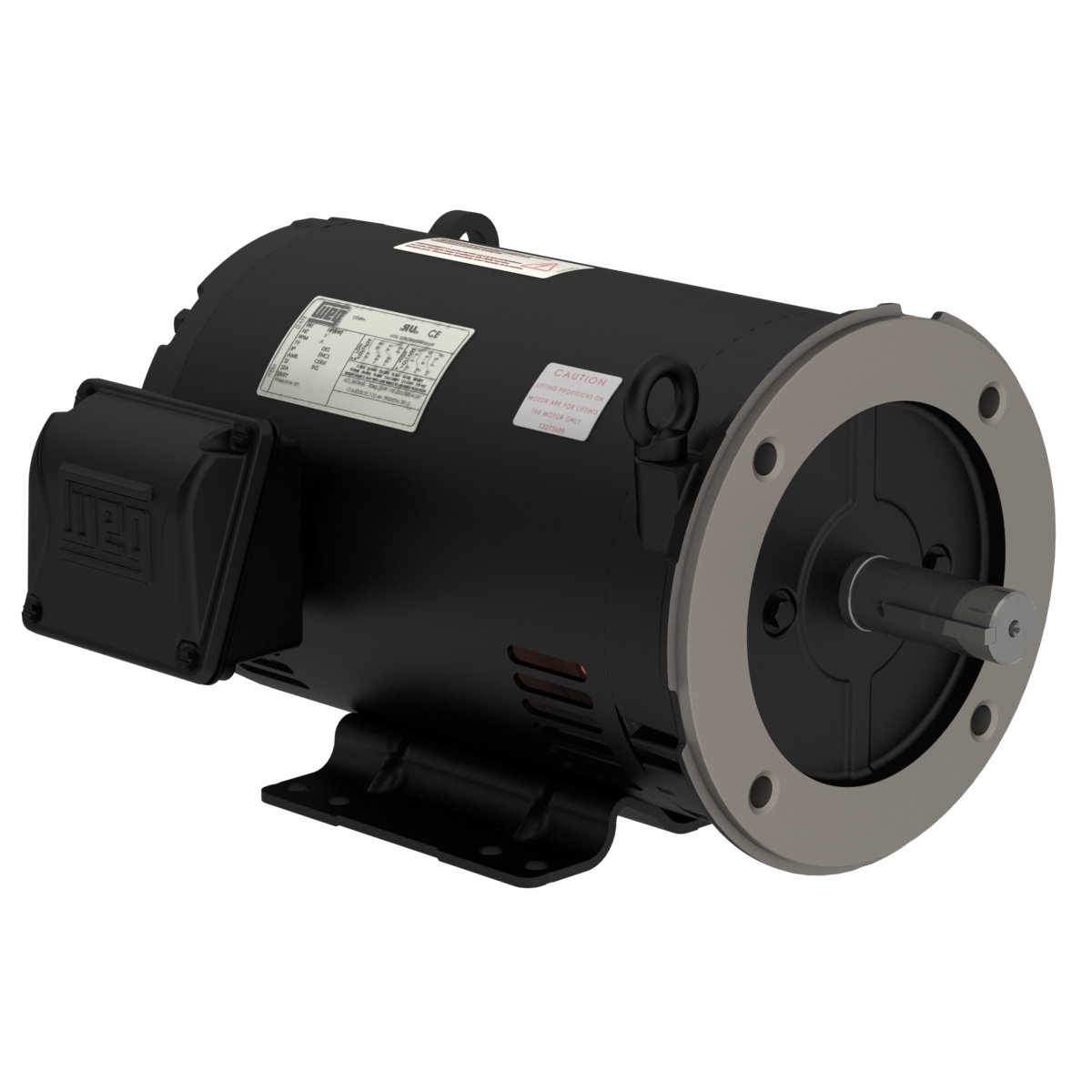

00518OT3E184TC-SG WEG AC Motor
00518OT3E184TC-SG – WEG AC Motor
Rolled Steel NEMA Premium Efficiency 5 HP 4P 182/4TC 3Ph 230/460//190-220/380-415 V 60 Hz IC01 – ODP – Foot-mounted
Downloads: 00518OT3E184TC-SG
Additional information
| Weight | 88.8 lbs |
|---|---|
| Manufacturer | WEG |
| Application | Air Handling |
| Frame Material | Rolled Steel |
| Frame | 182/4TC |
| Degree of Protection | |
| Horsepower | 5 HP |
| Kilowatts | 3.7 kW |
| Phase | 3 Ph |
| Rated Voltage | 230/460 V |
| Rated Frequency | 60 Hz |
| Rated Current | 12.7/6.33 A |
| Rated Speed | 1760 RPM |
| Synchronous speed | 1800 RPM |
| Pole | 4:00 PM |
| Service Factor | 1.15 SF |
| Enclosure | IC01 – ODP |
| Mounting | Foot-mounted |
| Flange | |
| Rated Torque | 14.9 ft.lb |
| Terminal Box | Left position |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Noise level | 55.0 dB(A) |
