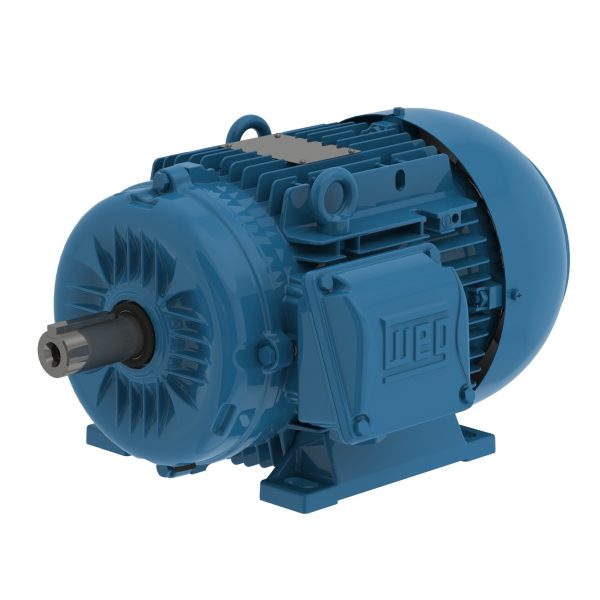

00518ET3YAL132S-W22 WEG AC Motor

00518ET3YAL132S-W22 WEG AC Motor - Image 2

00518ET3YAL132S-W22 WEG AC Motor

00518ET3YAL132S-W22 – WEG AC Motor

Multimounting IE3 7.5 HP 4P 132S 3Ph 460//380-415 V 60 Hz IC411 – TEFC – B3L(E)
Downloads: 00518ET3YAL132S-W22

SKU: 00518ET3YAL132S-W22 Category: WEG Electric Corp - AC Motors - 1 Phase & 3 Phase

Description
Additional information

Description

00518ET3YAL132S-W22 – WEG AC Motor. Aluminum frame and removable feet being able to provide great flexibility and facilitate the change of configuration without requiring additional machining or modifications. Its terminal box can rotate every 90 degrees, allowing the connection of the motor cables on any side. Furthermore, these motors are totally interchangeable with the cast iron motors.

Downloads: 00518ET3YAL132S-W22

Additional information

Weight	126 lbs
Manufacturer	WEG
Application	General Purpose Multimounting
Frame Material	Aluminum
Frame	132S
Degree of Protection	IP55
Horsepower	7.5 HP
Kilowatts	5.5 kW
Phase	3 Ph
Rated Voltage	460//380-415 V
Rated Frequency	60 Hz
Rated Current	10.6 A
Rated Speed	1460 RPM
Synchronous speed	1800 RPM
Pole	4:00 PM
Service Factor
Enclosure	IC411 – TEFC
Mounting	Foot-mounted
Flange	Without
Rated Torque	27.0 ft.lb
Terminal Box	Right position
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Noise level	56.0 dB(A)
