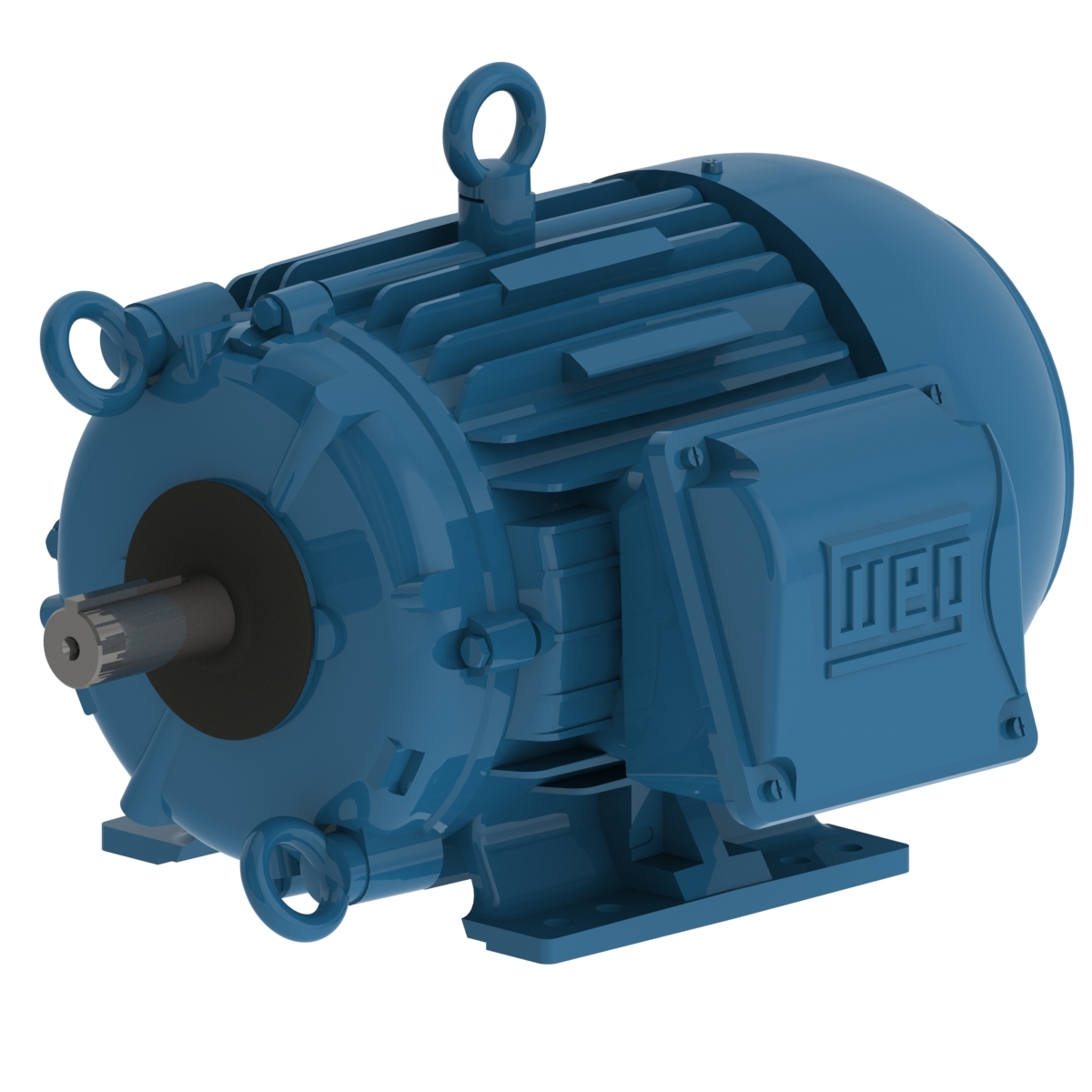

00512ET3HCT215T-W22 – WEG AC Motor

W22 Cooling Tower NEMA Premium Efficiency 5 HP 6P 213/5T 3Ph 575 V 60 Hz IC411 – TEFC – Foot-mounted
Downloads: 00512ET3HCT215T-W22

SKU: 00512ET3HCT215T-W22 Category: WEG Electric Corp - AC Motors - Single Phase & 3 Phase

Description
Additional information

Description

00512ET3HCT215T-W22 – WEG AC Motor. These TEFC motors are built according to NEMA standard, and designed to operate with 100% of humidity in the most corrosive environments. All the line is certified for use with frequency inverter, and can operate in both the horizontal and vertical position. The Cooling Tower was tested according to the IEEE 112, method B, and it has efficiency values certified by UL (CSA C390). They ensure high efficiency levels with high torque, even at low speeds.

Downloads: 00512ET3HCT215T-W22

Additional information

Weight	205 lbs
Manufacturer	WEG
Application	Severe Duty
Frame Material	Cast Iron
Frame	213/5T
Degree of Protection	IP55
Horsepower	5 HP
Kilowatts	3.7 kW
Phase	3 Ph
Rated Voltage	575 V
Rated Frequency	60 Hz
Rated Current	5.46 A
Rated Speed	1170 RPM
Synchronous speed	1200 RPM
Pole	6:00 PM
Service Factor	1.25 SF
Enclosure	IC411 – TEFC
Mounting	Foot-mounted
Flange	Without
Rated Torque	22.4 ft.lb
Terminal Box	Right position
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Noise level	55.0 dB(A)
