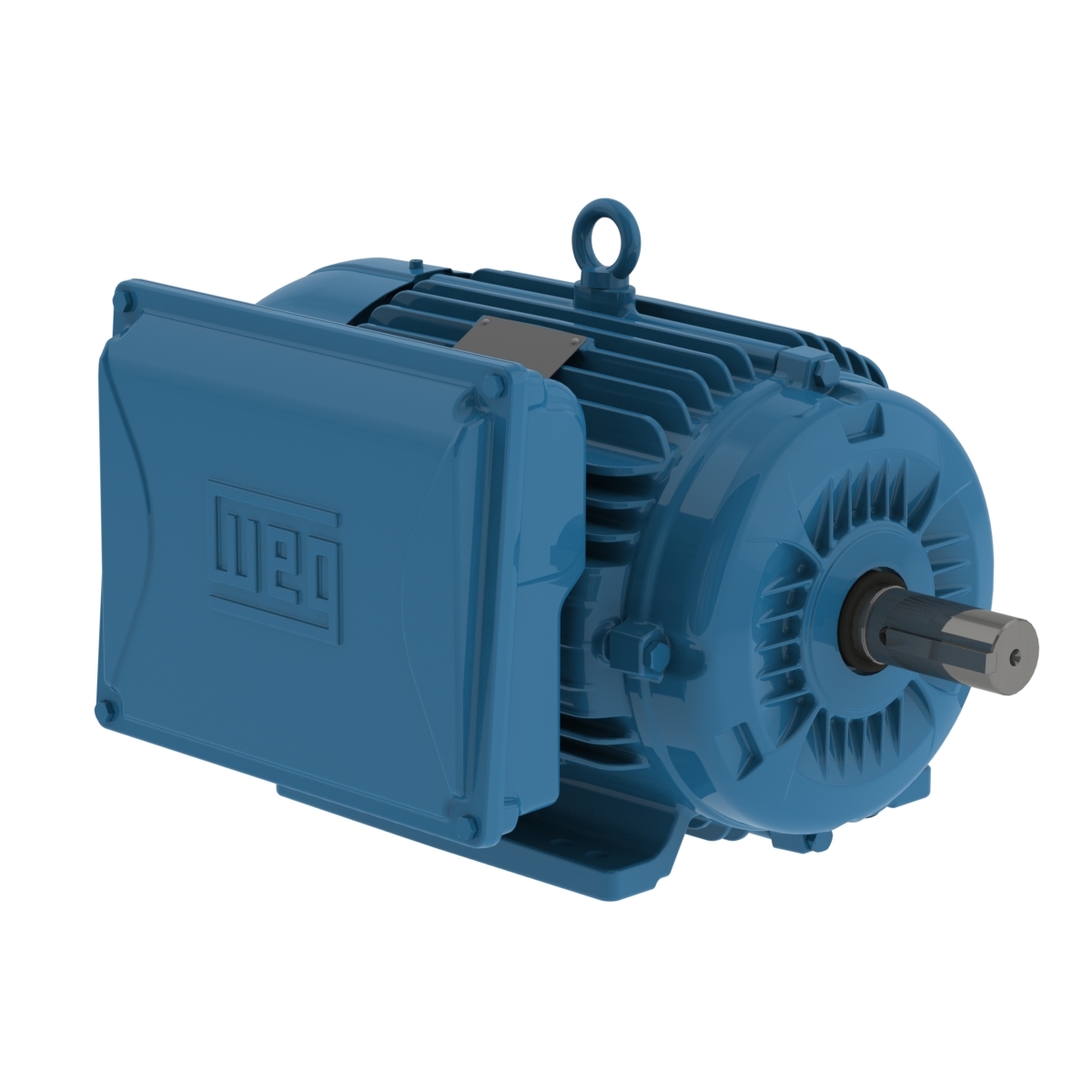

00512ES1E215T-W22 WEG AC Motor
00512ES1E215T-W22 – WEG AC Motor
W22 7.5 HP 2P 213/5TC 1Ph 208-230/460 V 60 Hz IC411 – TEFC – Foot-mounted
Downloads: 00512ES1E215T-W22
00512ES1E215T-W22 – WEG AC Motor. High starting torque
Additional information
| Weight | 187 lbs |
|---|---|
| Manufacturer | WEG |
| Application | General Purpose |
| Frame Material | Cast Iron |
| Frame | 213/5T |
| Degree of Protection | IP55 |
| Horsepower | 5 HP |
| Kilowatts | 3.7 kW |
| Phase | 1 Ph |
| Rated Voltage | 208-230/460 V |
| Rated Frequency | 60 Hz |
| Rated Current | 22.0-21.2/10.6 A |
| Rated Speed | 1175 RPM |
| Synchronous speed | 1200 RPM |
| Pole | 6:00 PM |
| Service Factor | 1.15 (1.00 @ 208V) SF |
| Enclosure | IC411 – TEFC |
| Mounting | Foot-mounted |
| Flange | Without |
| Rated Torque | 22.3 ft.lb |
| Terminal Box | Left position |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Noise level | 63.0 dB(A) |
