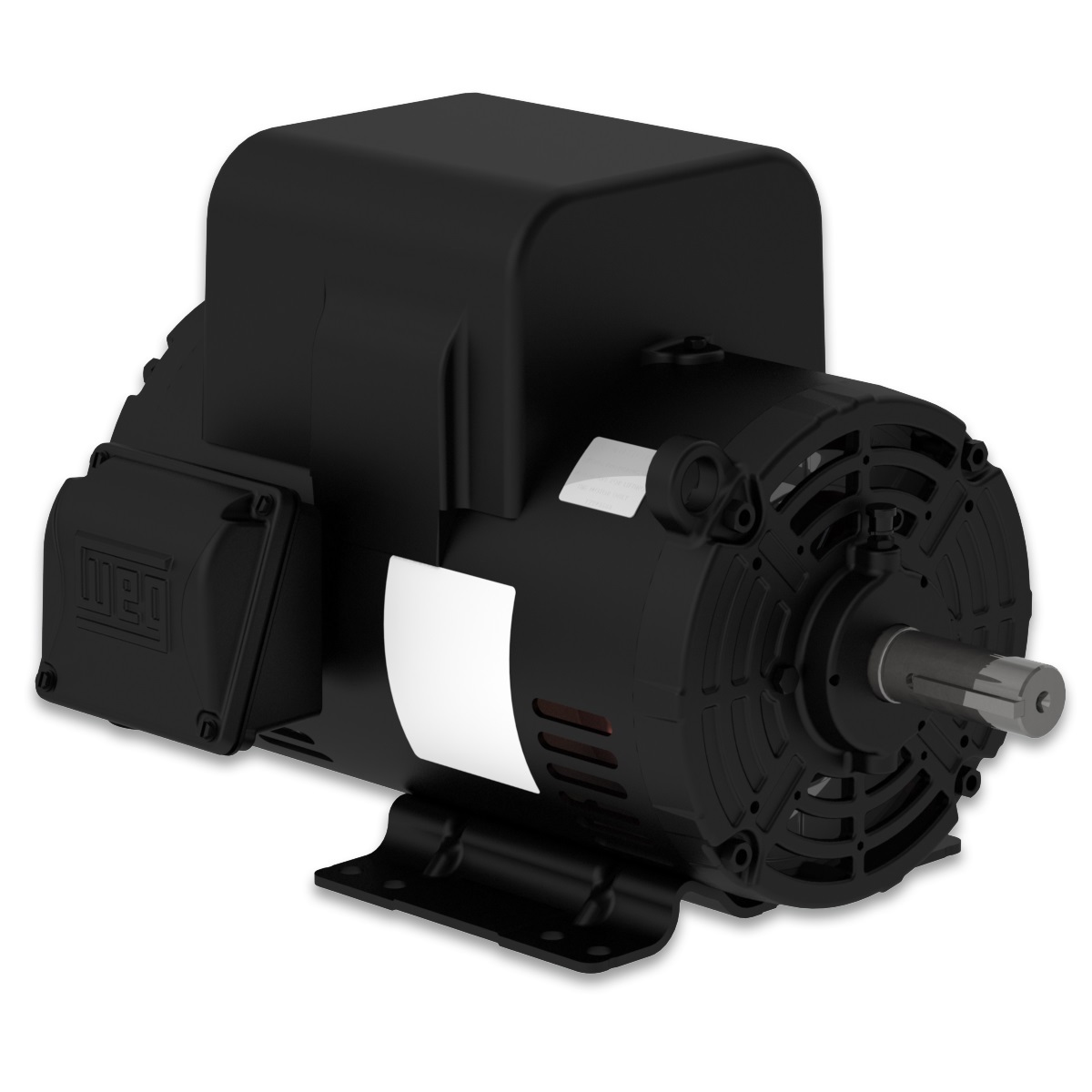

00336OS1C184T-S WEG AC Motor
00336OS1C184T-S – WEG AC Motor
Rolled Steel 3 HP 2P 56HC 1Ph 115/208-230 V 60 Hz IC01 – ODP – Foot-mounted
Downloads: 00336OS1C184T-S
Additional information
| Weight | 59.5 lbs |
|---|---|
| Manufacturer | WEG |
| Application | General Purpose |
| Frame Material | Rolled Steel |
| Frame | 182/4T |
| Degree of Protection | |
| Horsepower | 3 HP |
| Kilowatts | 2.2 kW |
| Phase | 1 Ph |
| Rated Voltage | 208-230 V |
| Rated Frequency | 60 Hz |
| Rated Current | 14.3-12.4 A |
| Rated Speed | 3470 RPM |
| Synchronous speed | 3600 RPM |
| Pole | 2:00 PM |
| Service Factor | 1.15 SF |
| Enclosure | IC01 – ODP |
| Mounting | Foot-mounted |
| Flange | Without |
| Rated Torque | 4.54 ft.lb |
| Terminal Box | Left position |
| Ambient temperature | |
| Altitude | |
| Noise level | |
| Misc |
