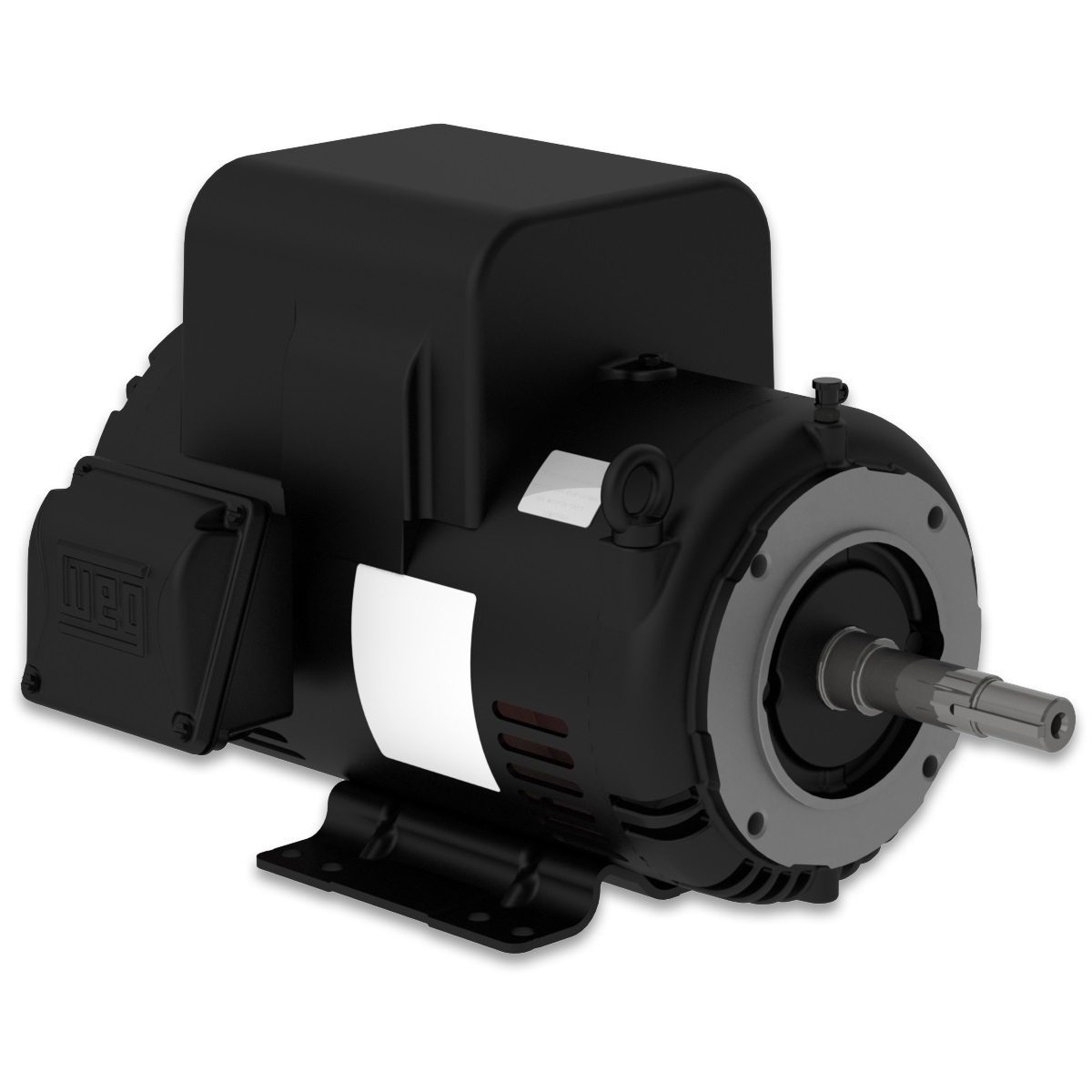

00336OS1B182JM-S WEG AC Motor
00336OS1B182JM-S – WEG AC Motor
Rolled Steel JM Pump 3 HP 2P 182/4JM 1Ph 115/208-230 V 60 Hz IC01 – ODP – Foot-mounted
Downloads: 00336OS1B182JM-S
Additional information
| Weight | 75 lbs |
|---|---|
| Manufacturer | WEG |
| Application | Close Coupled JM/JP |
| Frame Material | Rolled Steel |
| Frame | 182/4JM |
| Degree of Protection | |
| Horsepower | 3 HP |
| Kilowatts | 2.2 kW |
| Phase | 1 Ph |
| Rated Voltage | 115/208-230 V |
| Rated Frequency | 60 Hz |
| Rated Current | 25.8/13.8-12.9 A |
| Rated Speed | 3510 RPM |
| Synchronous speed | 3600 RPM |
| Pole | 2:00 PM |
| Service Factor | 1.15 SF |
| Enclosure | IC01 – ODP |
| Mounting | F-1 |
| Flange | C |
| Rated Torque | 4.49 ft.lb |
| Terminal Box | Left position |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Noise level | |
| Misc |
