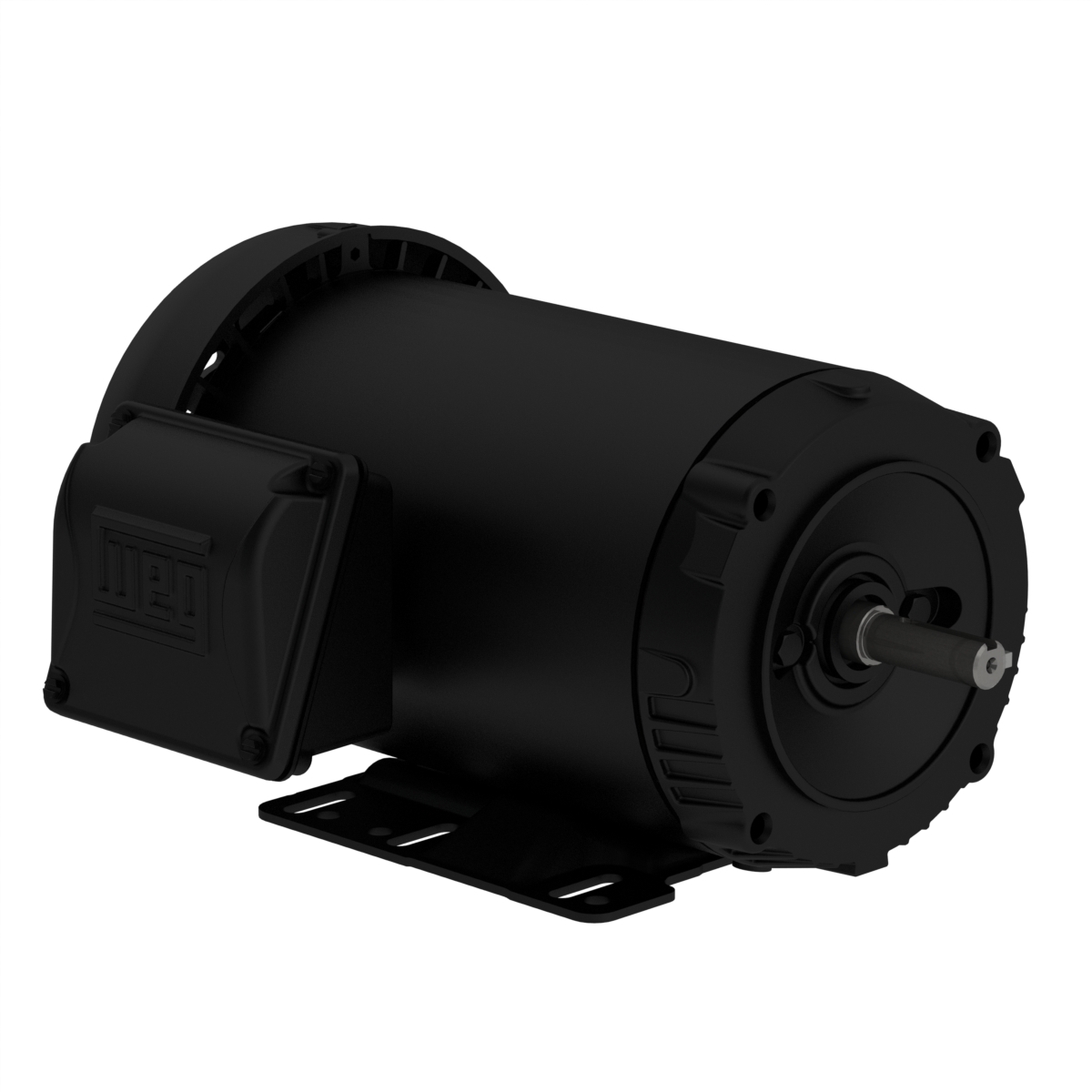

00336ET3V145TC-S WEG AC Motor

00336ET3V145TC-S – WEG AC Motor

Rolled Steel NEMA Premium Efficiency 3 HP 2P 143/5TC 3Ph 230/460//190-220/380-415 V 60 Hz IC411 – TEFC – Foot-mounted
Downloads: 00336ET3V145TC-S

SKU: 00336ET3V145TC-S Category:

Description

00336ET3V145TC-S – WEG AC Motor. Contact The VFD Exchange today for more information, including dimensions, electrical drawings, and efficiency curves. Click ‘Additional information’ for more specifications.

Downloads: 00336ET3V145TC-S

Additional information

Weight 50.7 lbs
Manufacturer

WEG

Application

General Purpose

Frame Material

Rolled Steel

Frame

143/5TC

Degree of Protection

IP55

Horsepower

3 HP

Kilowatts

2.2 kW

Phase

3 Ph

Rated Voltage

200/400 V

Rated Frequency

60 Hz

Rated Current

8.07/4.04 A

Rated Speed

3500 RPM

Synchronous speed

3600 RPM

Pole

2:00 PM

Service Factor

1.15 SF

Enclosure

IC411 – TEFC

Mounting

Foot-mounted

Flange

C

Rated Torque

4.50 ft.lb

Terminal Box

Left position

Ambient temperature

-20°C to +40°C

Altitude

1000 m.a.s.l.

Noise level

68.0 dB(A)

Misc
