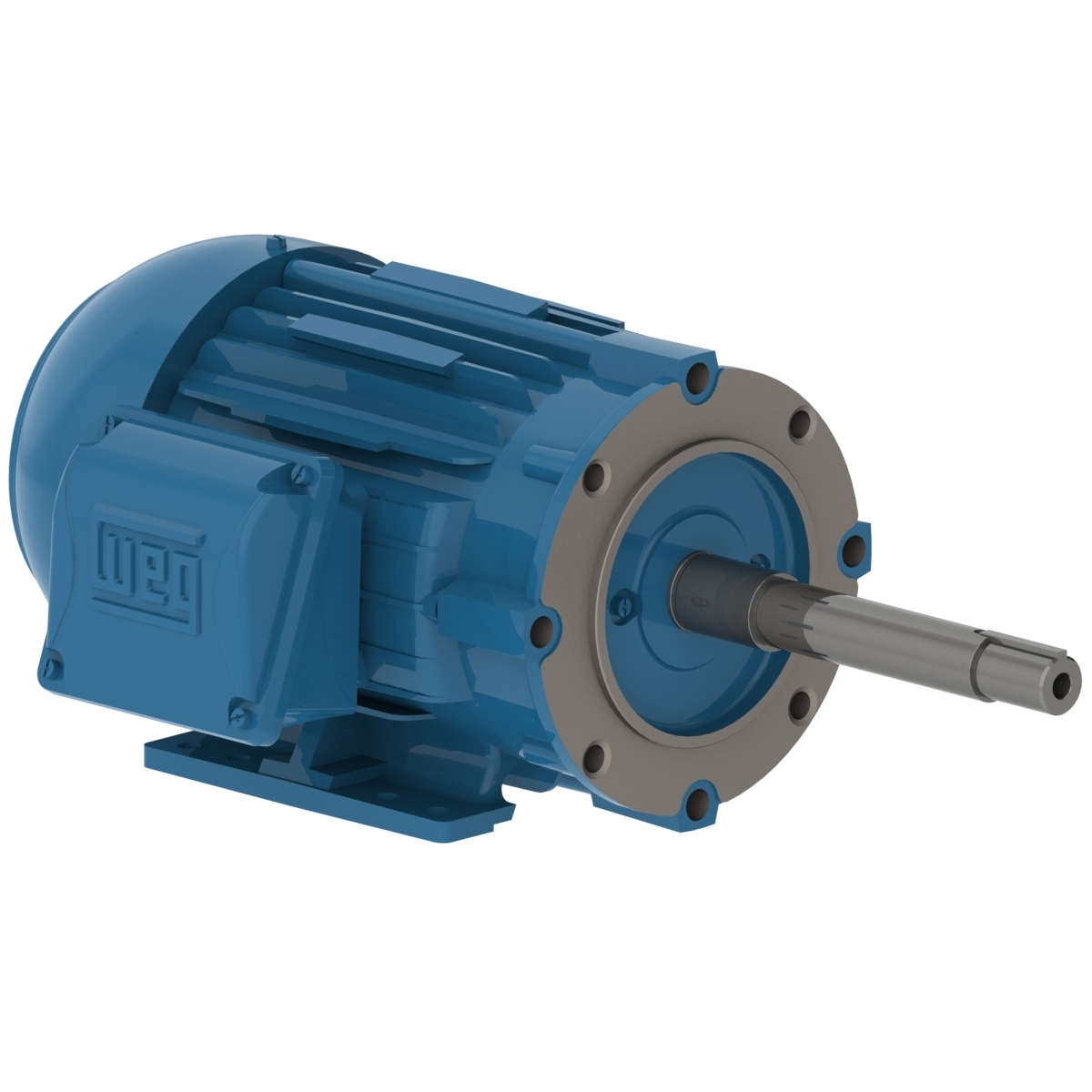

00336ET3E145JP-W22 WEG AC Motor
00336ET3E145JP-W22 – WEG AC Motor
W22 Close Coupled Pump JP NEMA Premium Efficiency 3 HP 2P 143/5JP 3Ph 208-230/460//380 V 60//50 Hz IC411 – TEFC – Foot-mounted
Downloads: 00336ET3E145JP-W22
Additional information
| Weight | 59.3 lbs |
|---|---|
| Manufacturer | WEG |
| Application | Close Coupled JM/JP |
| Frame Material | Cast Iron |
| Frame | 143/5JP |
| Degree of Protection | IP55 |
| Horsepower | 3 HP |
| Kilowatts | 2.2 kW |
| Phase | 3 Ph |
| Rated Voltage | 230/460 V |
| Rated Frequency | 60 Hz |
| Rated Current | 7.42/3.71 A |
| Rated Speed | 3460 RPM |
| Synchronous speed | 3600 RPM |
| Pole | 2:00 PM |
| Service Factor | 1.25 SF |
| Enclosure | IC411 – TEFC |
| Mounting | F-1 |
| Flange | C |
| Rated Torque | 4.55 ft.lb |
| Terminal Box | Left position |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Noise level | 68 dB(A) |
