Description
Downloads: 00336ES1E145JM
They ensure maximum performance and robustness in a great variety of applications.

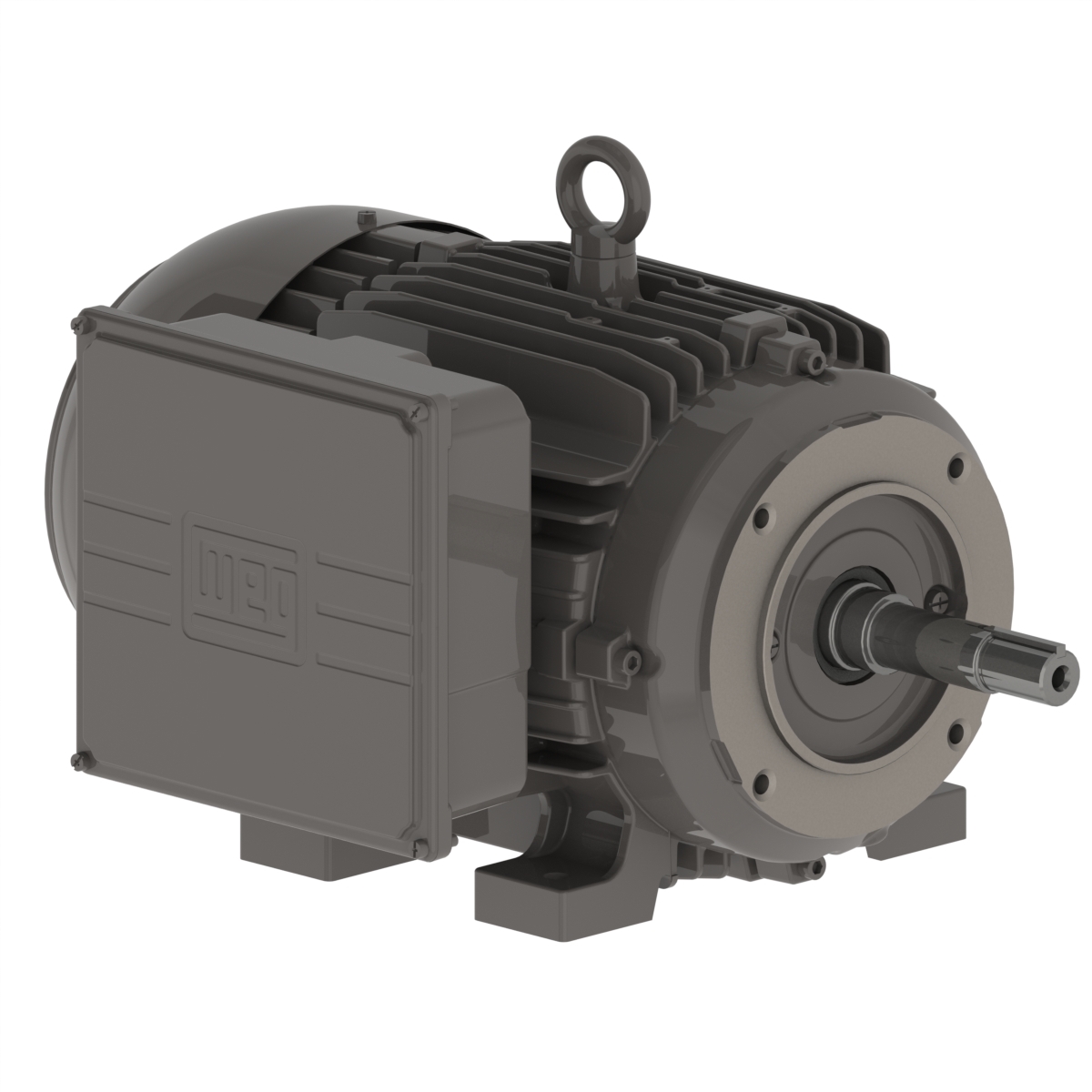

00336ES1E145JM WEG AC Motor
00336ES1E145JM – Close Coupled Pump 3 HP 2P 145JM 1Ph 208-230/460 V 60 Hz IC411 – TEFC – Foot-mounted
Downloads: 00336ES1E145JM
Additional information
| Weight | 67.3 lbs |
|---|---|
| Manufacturer | WEG |
| Application | Close Coupled JM/JP |
| Frame Material | Cast Iron |
| Frame | 145JM |
| Degree of Protection | IP55 |
| Horsepower | 3 HP |
| Kilowatts | 2.2 kW |
| Phase | 1 Ph |
| Rated Voltage | 208-230/460 V |
| Rated Frequency | 60 Hz |
| Rated Current | 14.6-13.5/6.75 A |
| Rated Speed | 3500 RPM |
| Synchronous speed | 3600 RPM |
| Pole | 2:00 PM |
| Service Factor | 1.15 (1.00 @ 208V) SF |
| Enclosure | IC411 – TEFC |
| Mounting | F-1 |
| Flange | C |
| Rated Torque | 4.50 ft.lb |
| Terminal Box | Left position |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Noise level | |
| Misc | Replaced by : 00336ES1E145JM-W22 – 14184287 |
