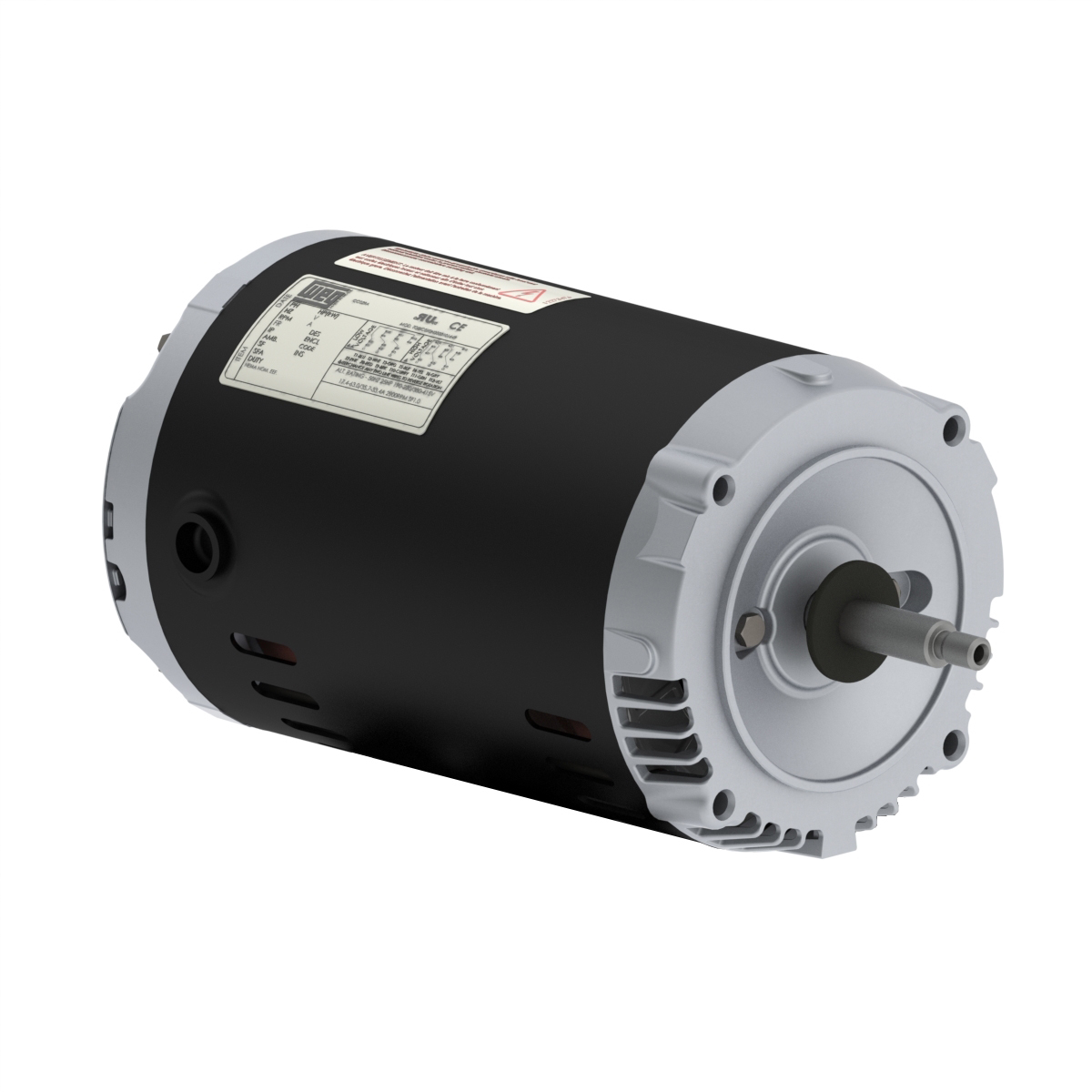

00236OS3HJPR56J-S WEG AC Motor

00236OS3HJPR56J-S – WEG AC Motor

Rolled Steel Fan and Exhaust Split Phase 0.5 HP 4P W56 1Ph 115/208-230 V 60 Hz IC01 – ODP – Foot-mounted
Downloads: 00236OS3HJPR56J-S

SKU: 00236OS3HJPR56J-S Category:

Description

00236OS3HJPR56J-S – WEG AC Motor. Contact The VFD Exchange today for more information, including dimensions, electrical drawings, and efficiency curves. Click ‘Additional information’ for more specifications.

Downloads: 00236OS3HJPR56J-S

Additional information

Weight 27.6 lbs
Manufacturer

WEG

Application

General Purpose

Frame Material

Rolled Steel

Frame

56J

Degree of Protection
Horsepower

2 HP

Kilowatts

1.5 kW

Phase

3 Ph

Rated Voltage

575 V

Rated Frequency

60 Hz

Rated Current

2.26 A

Rated Speed

3470 RPM

Synchronous speed

3600 RPM

Pole

2:00 PM

Service Factor

1.20 SF

Enclosure

IC01 – ODP

Mounting

Footless

Flange

C

Rated Torque

3.03 ft.lb

Terminal Box

Without Terminal Box

Ambient temperature

-20°C to +40°C

Altitude

1000 m.a.s.l.

Noise level

62.0 dB(A)

Misc
