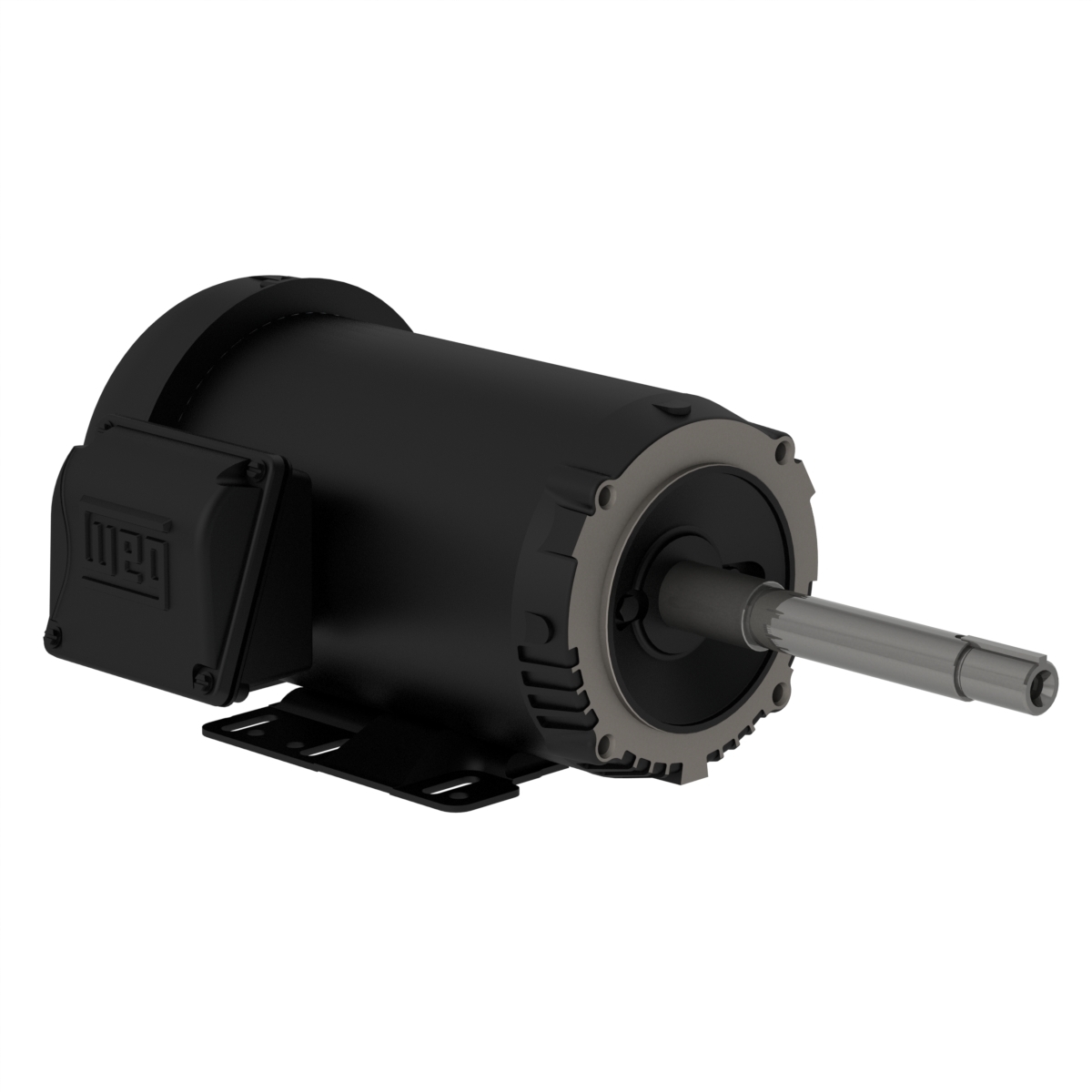

00236ET3E145JP-S WEG AC Motor
00236ET3E145JP-S – WEG AC Motor
Rolled Steel JP Pump NEMA Premium Efficiency 2 HP 2P 143/5JP 3Ph 230/460//190-220/380-415 V 60 Hz IC411 – TEFC – Foot-mounted
Downloads: 00236ET3E145JP-S
Additional information
| Weight | 44.2 lbs |
|---|---|
| Manufacturer | WEG |
| Application | Close Coupled JM/JP |
| Frame Material | Rolled Steel |
| Frame | 143/5JP |
| Degree of Protection | IP55 |
| Horsepower | 2 HP |
| Kilowatts | 1.5 kW |
| Phase | 3 Ph |
| Rated Voltage | 230/460 V |
| Rated Frequency | 60 Hz |
| Rated Current | 4.94/2.47 A |
| Rated Speed | 3520 RPM |
| Synchronous speed | 3600 RPM |
| Pole | 2:00 PM |
| Service Factor | 1.15 (1.00 @ 208V) SF |
| Enclosure | IC411 – TEFC |
| Mounting | F-1 |
| Flange | C |
| Rated Torque | 2.98 ft.lb |
| Terminal Box | Left position |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Noise level | 68 dB(A) |
