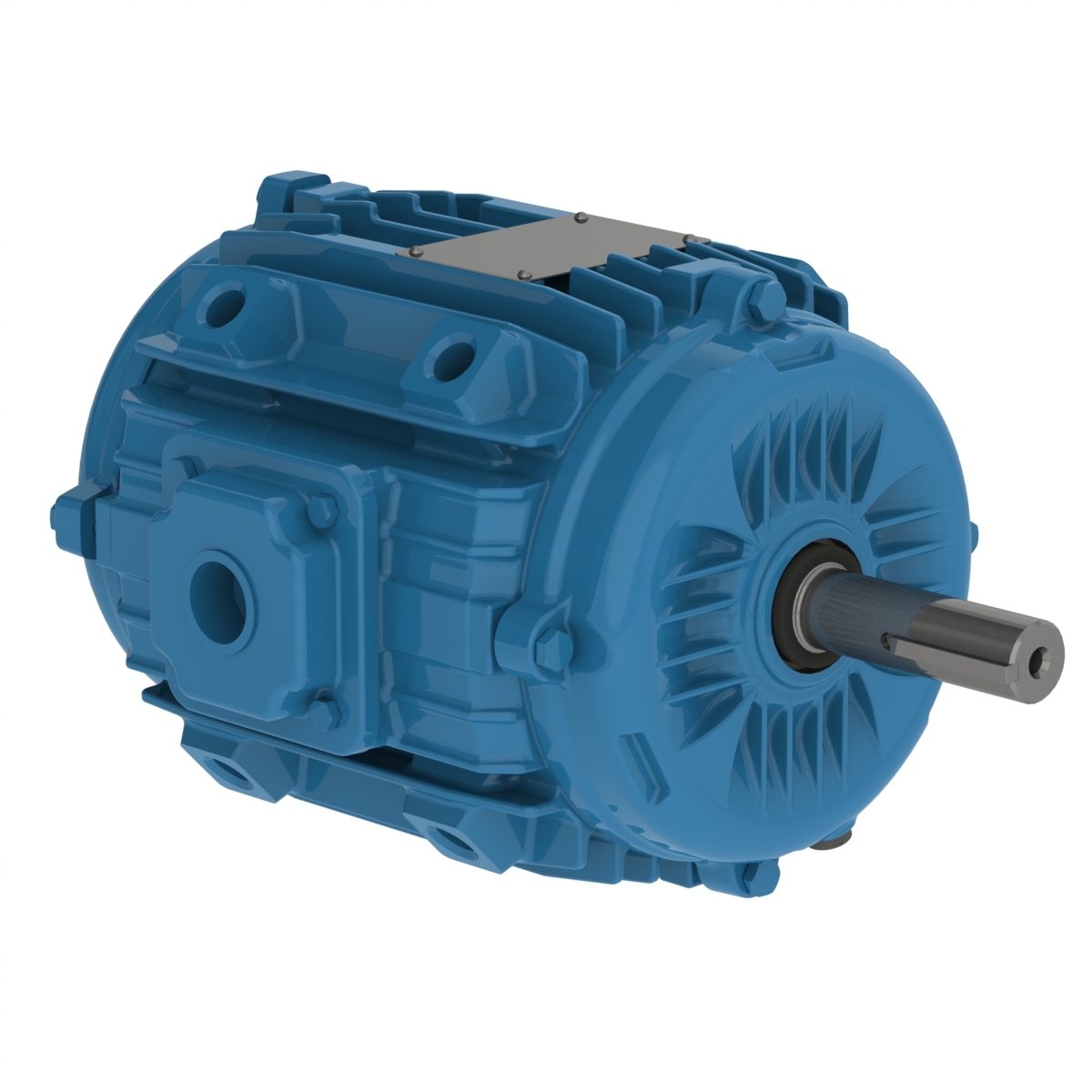

00218ET3EPM143/5Y-W2 WEG AC Motor
00218ET3EPM143/5Y-W2 – WEG AC Motor
W22 NEMA Premium Efficiency 2 HP 4P 145YZ 3Ph 208-230/460 V 60 Hz IC418 – TEAO – Pad mounted
Downloads: 00218ET3EPM143/5Y-W2
Additional information
| Weight | 50.7 lbs |
|---|---|
| Manufacturer | WEG |
| Application | Air Handling |
| Frame Material | Cast Iron |
| Frame | 145YZ |
| Degree of Protection | IP55 |
| Horsepower | 2 HP |
| Kilowatts | 1.5 kW |
| Phase | 3 Ph |
| Rated Voltage | 208-230/460 V |
| Rated Frequency | 60 Hz |
| Rated Current | 6.09-5.51/2.76 A |
| Rated Speed | 1755 RPM |
| Synchronous speed | 1800 RPM |
| Pole | 4:00 PM |
| Service Factor | 1.25 SF |
| Enclosure | IC418 – TEAO |
| Mounting | Pad mounted |
| Flange | Without |
| Rated Torque | 5.98 ft.lb |
| Terminal Box | Left position |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Noise level | |
| Misc |
