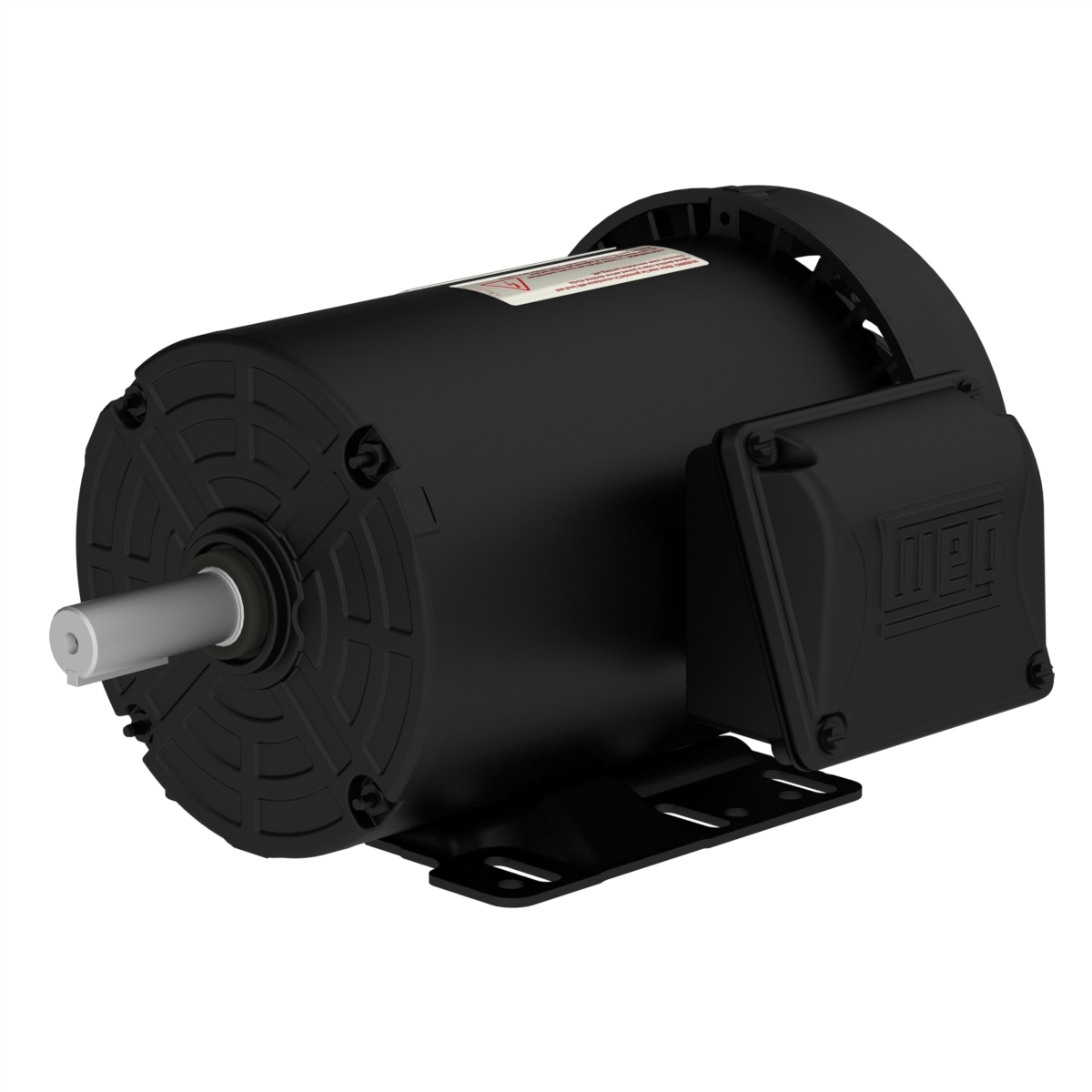

00218ET3E145TF2-S WEG AC Motor
00218ET3E145TF2-S – WEG AC Motor
Rolled Steel NEMA Premium Efficiency 2 HP 4P 143/5T 3Ph 380/660 V 60 Hz IC411 – TEFC – Foot-mounted
Downloads: 00218ET3E145TF2-S
Additional information
| Weight | 2.2 lbs |
|---|---|
| Manufacturer | WEG |
| Application | General Purpose |
| Frame Material | Rolled Steel |
| Frame | 143/5T |
| Degree of Protection | IP55 |
| Horsepower | 2 HP |
| Kilowatts | 1.5 kW |
| Phase | 3 Ph |
| Rated Voltage | 230/460//190-220/380-415 V |
| Rated Frequency | 60//50 Hz |
| Rated Current | 5.44/2.72 A |
| Rated Speed | 1745 RPM |
| Synchronous speed | 1800 RPM |
| Pole | 4:00 PM |
| Service Factor | 1.15 (1.00 @ 208V) SF |
| Enclosure | IC411 – TEFC |
| Mounting | Foot-mounted |
| Flange | Without |
| Rated Torque | 6.02 ft.lb |
| Terminal Box | Right position |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Noise level | 52.0 dB(A) |
| Misc |
