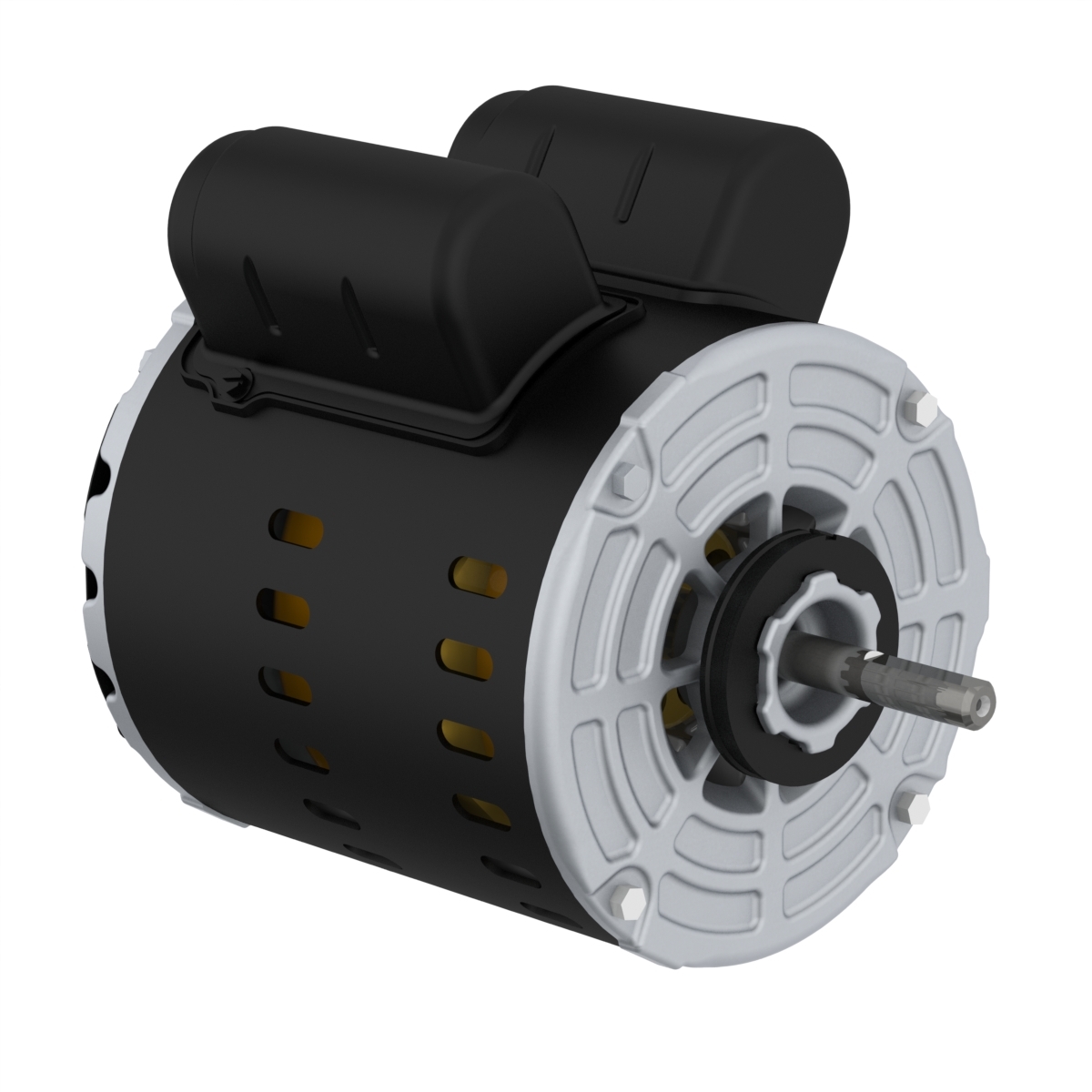

00182OS1AEC56 WEG AC Motor
00182OS1AEC56 – WEG AC Motor
Fan and Exhaust 1.00/0.33 HP 6/4P E56 1Ph 115 V 60 Hz IC01 – ODP – Foot-mounted
Downloads: 00182OS1AEC56
Additional information
| Weight | 27.8 lbs |
|---|---|
| Manufacturer | WEG |
| Application | Air Handling |
| Frame Material | Rolled Steel |
| Frame | E56 |
| Degree of Protection | IP21 |
| Horsepower | 1.00/0.33 HP |
| Kilowatts | 0.75 kW |
| Phase | 1 Ph |
| Rated Voltage | 115 V |
| Rated Frequency | 60 Hz |
| Rated Current | 12.1 A |
| Rated Speed | 1725 RPM |
| Synchronous speed | 1200/1800 RPM |
| Pole | 6/4 P |
| Service Factor | 1.00 SF |
| Enclosure | IC01 – ODP |
| Mounting | Foot-mounted |
| Flange | Without |
| Rated Torque | 3.06 ft.lb |
| Terminal Box | Without Terminal Box |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Noise level | 46.0 dB(A) |
