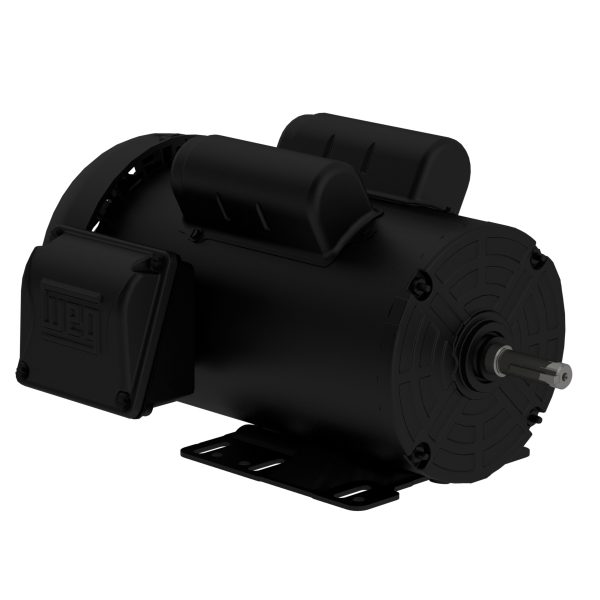

00158ES1B145T-S – WEG AC Motor

Rolled Steel 1.5 HP 4P 56C 1Ph 115/208-230 V 60 Hz IC411 – TEFC – Footless
Downloads: 00158ES1B145T-S

SKU: 00158ES1B145T-S Category: WEG Electric Corp - AC Motors - 1 Phase & 3 Phase

Description
Additional information

Description

00158ES1B145T-S – WEG AC Motor. The W01 motor is the perfect option for applications that require robustness, low weight and high performance in a single product. The W01 Rolled Steel Single Phase motor has good thermal performance and easy installation and maintenance. Because of their high starting torque, they are particularly well-suited for heavy starting loads.

Downloads: 00158ES1B145T-S

Additional information

Weight	48.1 lbs
Manufacturer	WEG
Application	General Purpose
Frame Material	Rolled Steel
Frame	143/5T
Degree of Protection	IP55
Horsepower	1.5 HP
Kilowatts	1.1 kW
Phase	1 Ph
Rated Voltage	115/208-230 V
Rated Frequency	60 Hz
Rated Current	15.0/8.27-7.48 A
Rated Speed	1745 RPM
Synchronous speed	1800 RPM
Pole	4:00 PM
Service Factor	1.15 (1.00 @ 208V) SF
Enclosure	IC411 – TEFC
Mounting	Foot-mounted
Flange	Without
Rated Torque	4.51 ft.lb
Terminal Box	Left position
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Noise level	54.0 dB(A)
