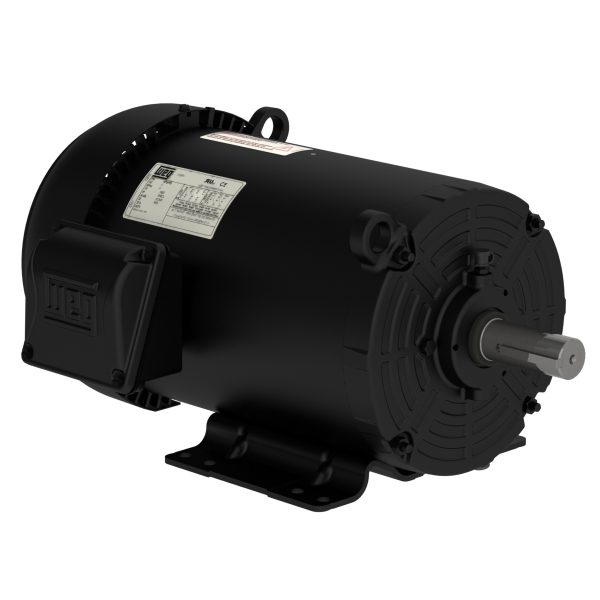

00152ET3H182T-S WEG AC Motor
00152ET3H182T-S – WEG AC Motor
Rolled Steel NEMA Premium Efficiency 10 HP 2P 213/5T 3Ph 200 V 60 Hz IC411 – TEFC – Foot-mounted
Downloads: 00152ET3H182T-S
Additional information
| Weight | 68.5 lbs |
|---|---|
| Manufacturer | WEG |
| Application | General Purpose |
| Frame Material | Rolled Steel |
| Frame | 182/4T |
| Degree of Protection | IP55 |
| Horsepower | 1.5 HP |
| Kilowatts | 1.1 kW |
| Phase | 3 Ph |
| Rated Voltage | 575 V |
| Rated Frequency | 60 Hz |
| Rated Current | 1.78 A |
| Rated Speed | 1170 RPM |
| Synchronous speed | 1200 RPM |
| Pole | 6:00 PM |
| Service Factor | 1.15 SF |
| Enclosure | IC411 – TEFC |
| Mounting | Foot-mounted |
| Flange | Without |
| Rated Torque | 6.73 ft.lb |
| Terminal Box | Left position |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Noise level | 52.0 dB(A) |
| Misc |
